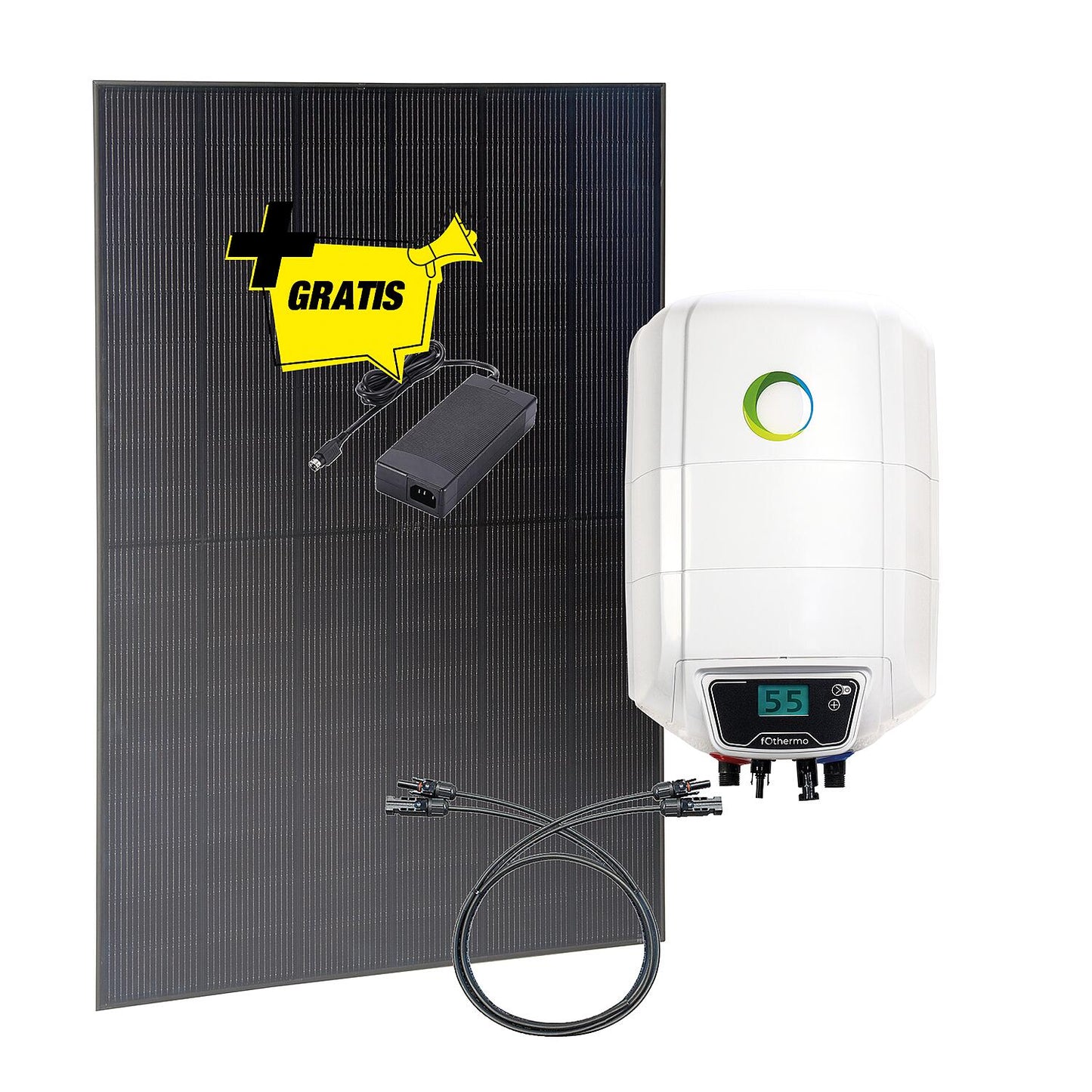

10L Photovoltaic Water Heater Set

Consisting of:

• 1 x 10l photovoltaic water heater

Protection rating: IP24

• Maximum heating power: 550 W
• Nominal pressure: 7 bar
• Maximum water temperature: 65°C
• Digital Display
• Steel kettle with enamel coating
• CE certified
• Maximum PV output: 1500 Wp
• Maximum DC input voltage: 42.4 Vdc
• Current consumption: 15.5 A
• Water connection: DN 15 (1/2")
• Power connection: MC4
• Optionally, it can also be used with a power supply if no PV power is available.

1 x PV Panel

• Junction box: IP67 with Schottky bypass diode
• Connection cable: 2 x 1300 mm, 4 mm², MC4 compatible
• Cell material: Monocrystalline
• Tempered AR coated glass, 2.0mm
• Maximum system voltage: 1500 VDC
• Frame: anodized aluminum alloy
• Protection class II
• Certified according to: TÜV CB KS FIDE CE MCS IECEE ISO9001 OHSAS18001
• Weight: 25kg/module
• Power per module: 440W

1 x 10 m extension cable for connecting the boiler to the PV panel

• Cross-section: 6 mm²
• High-quality photovoltaic cable

+ FREE power supply
