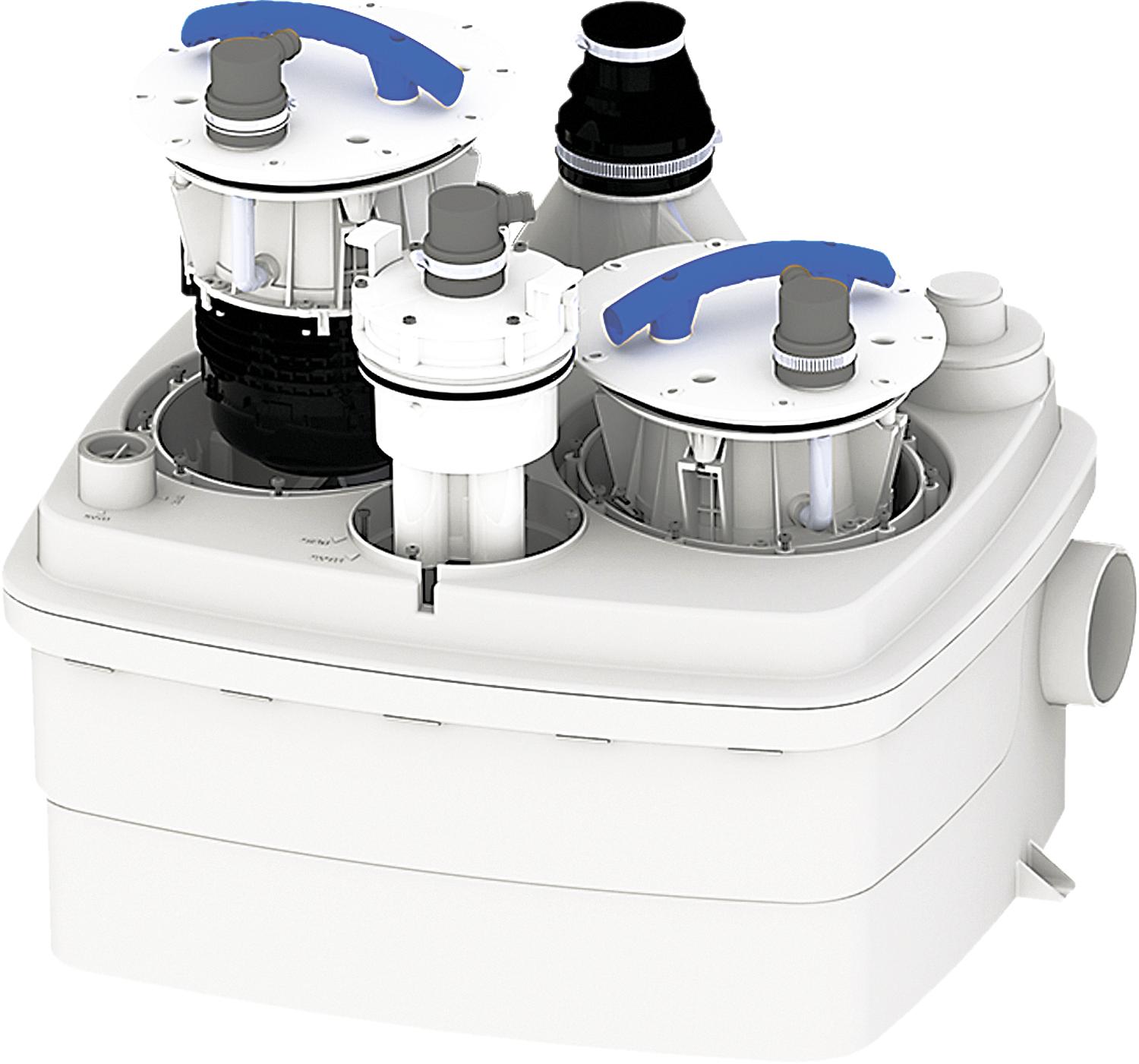

Sanicubic 2Classic WP 230V 2x1.5KW motor wastewater lifting station, for complete residential units

• Application area: Single-family homes, shops, public areas
• Suitable for shaft installation (flood-proof)
• Includes external control terminal (4 m cable)
• Includes external wireless alarm terminal
• BMS connections (building automation)
• Equipped with two engines and a cutting unit
• 2 x integrated check valves
• With cutting unit
• Protection class: IP 68
• Rated power: 2 x 1500 W
• Voltage: 220-240 V/50 Hz
• Flow rate max: 12000 l/h
• Maximum conveying capacity: 13 m high, 55 m far
• Permissible wastewater temperature: max 70 °C (max. 5 min)
• Container volume: 45 l
• Inlet openings: 1x DN40/50, 4x DN 40/50/100/110
• Pressure connection: DN 50
• Vent: DN 50
• Dimensions (L x D x H): 687x 516 x 490 mm
