AM 40 heating controller for one heating circuit, controller, motor, VF, AF, power supply

• For controlling: 1x mixer circuit (3-point Pi controller)
• Expandable
• Weather-compensated, suitable for radiators, underfloor heating and constant temperature heating systems
• It comes standard with connections and a program for two heating circuits.
• Instructions included in the software support a trouble-free installation.
• Accessories can be easily installed via quick connections (actuator for second heating circuit, 12 radio room units)
• Suitable for mixers: Thermomix, Easyflow heating circuit set

Technical data:

• External power supply, 230 V AC, 50 Hz
• 52 x 27 mm DotMatrix Display
• LED backlight
• 18 V AC operating voltage
• IP21 enclosure with wall mounting points
• 24 V / AC motor output
• 1 pc. potential-free 10A relay for controlling a pump, screw connection
• Weekly program

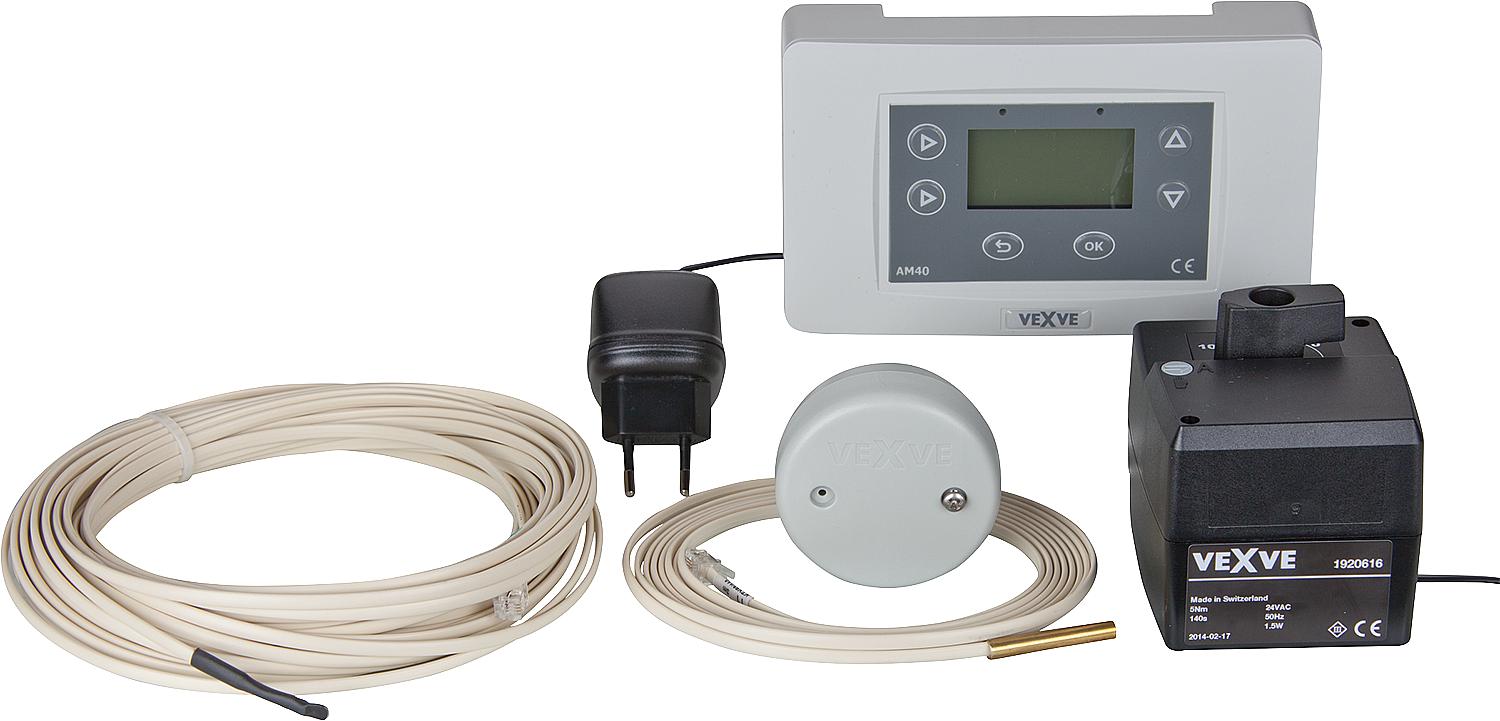

• Scope of delivery:
• 1 x AM40 control unit
• 1 x actuator with mounting kit
• 1 x power supply
• 1 x outdoor temperature sensor (NTL)
• 1 x surface-mounted sensor
