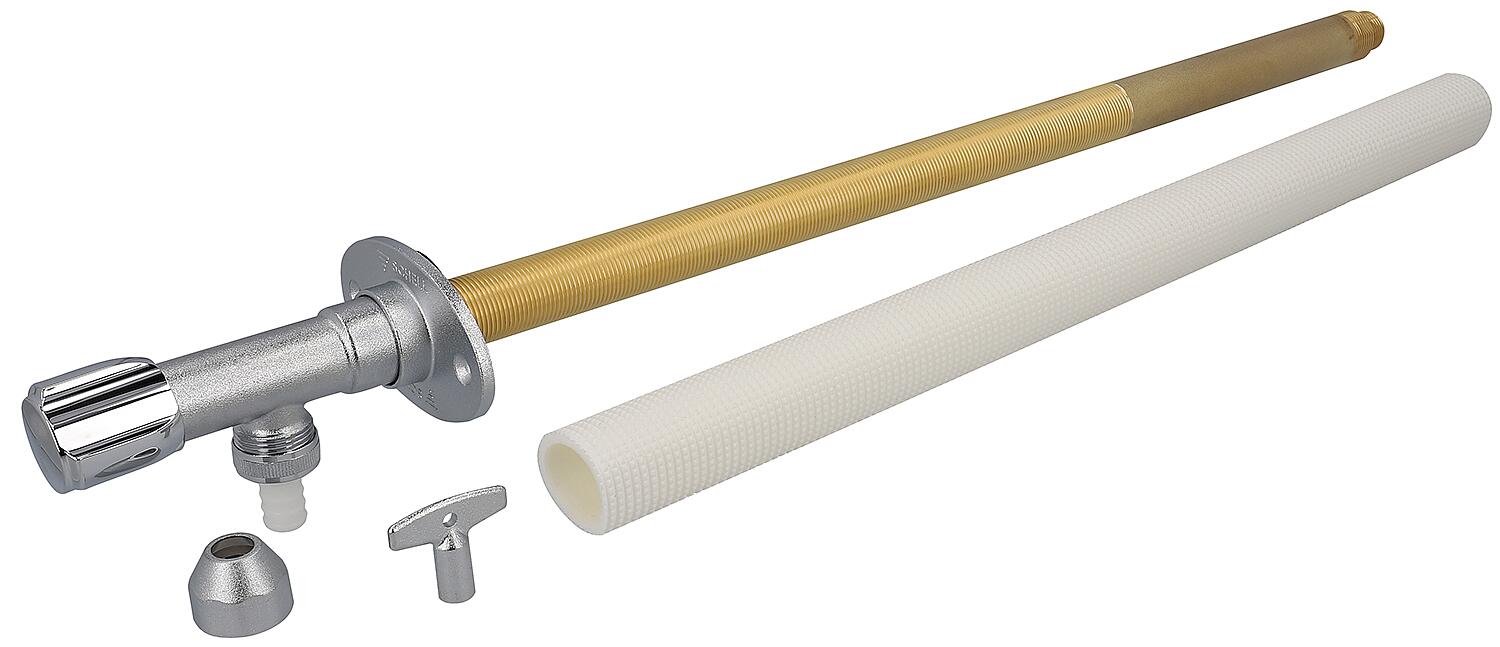

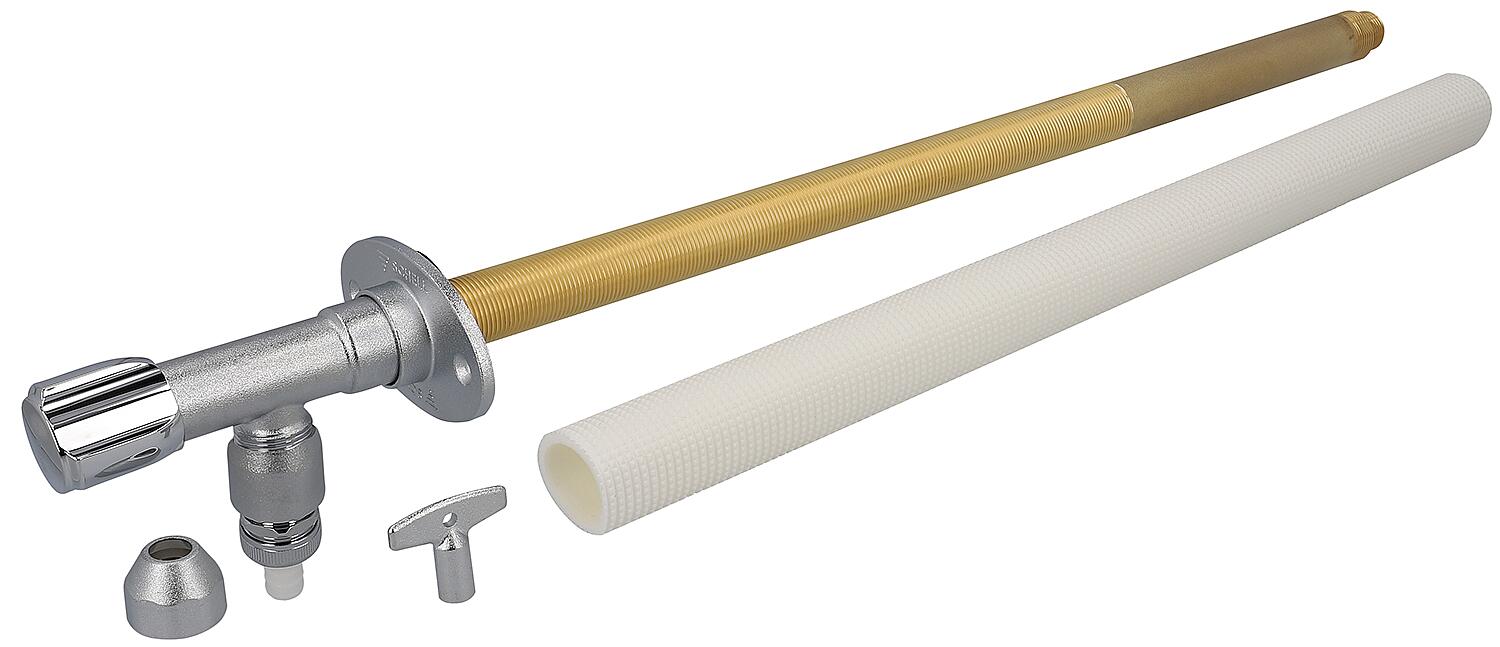

Aussenwandarmatur Frostsicher Schell Polar II, DN 15, mit RV u. Rohrbelüfter, Wandstärke 200-500 mm
Aussenwandarmatur Frostsicher Schell Polar II, DN 15, mit RV u. Rohrbelüfter, Wandstärke 200-500 mm

• Material: Brass
• Adjustment depth (wall thickness): 200 mm to 500 mm
• Connection: DN 15 (1/2")
• With sanitary fitting and socket wrench fitting
• Required bore: ø 38 mm
• Operating temperature: max. 25°C
• Outlet: Hose fitting ø 14.5 mm (DN 20 G 3/4 AG)
• Frost-proof thanks to automatic emptying after each closing process
Scope of delivery:
- Frost-proof outdoor wall fitting
- Wall feedthrough with integrated valve seat
- Valve body with socket wrench top and COMFORT operating handle
- Backflow preventer RV
- Long valve spindle
- Hose fitting
- Insulation sleeve
- Mounting plug
- Cutting gauges
- Anti-rotation wall rosette with internal thread for interior walls
- Anti-rotation wall rosette with internal thread for exterior walls
- Mounting hardware
*without DVGW approval
| Brand | SCHELL |
|---|---|
| Manufacturer part number | 039970399 |
| Unit price | CHF/piece |
| Type | without pipe aerator * |
| EAN | 4021163152081 |
