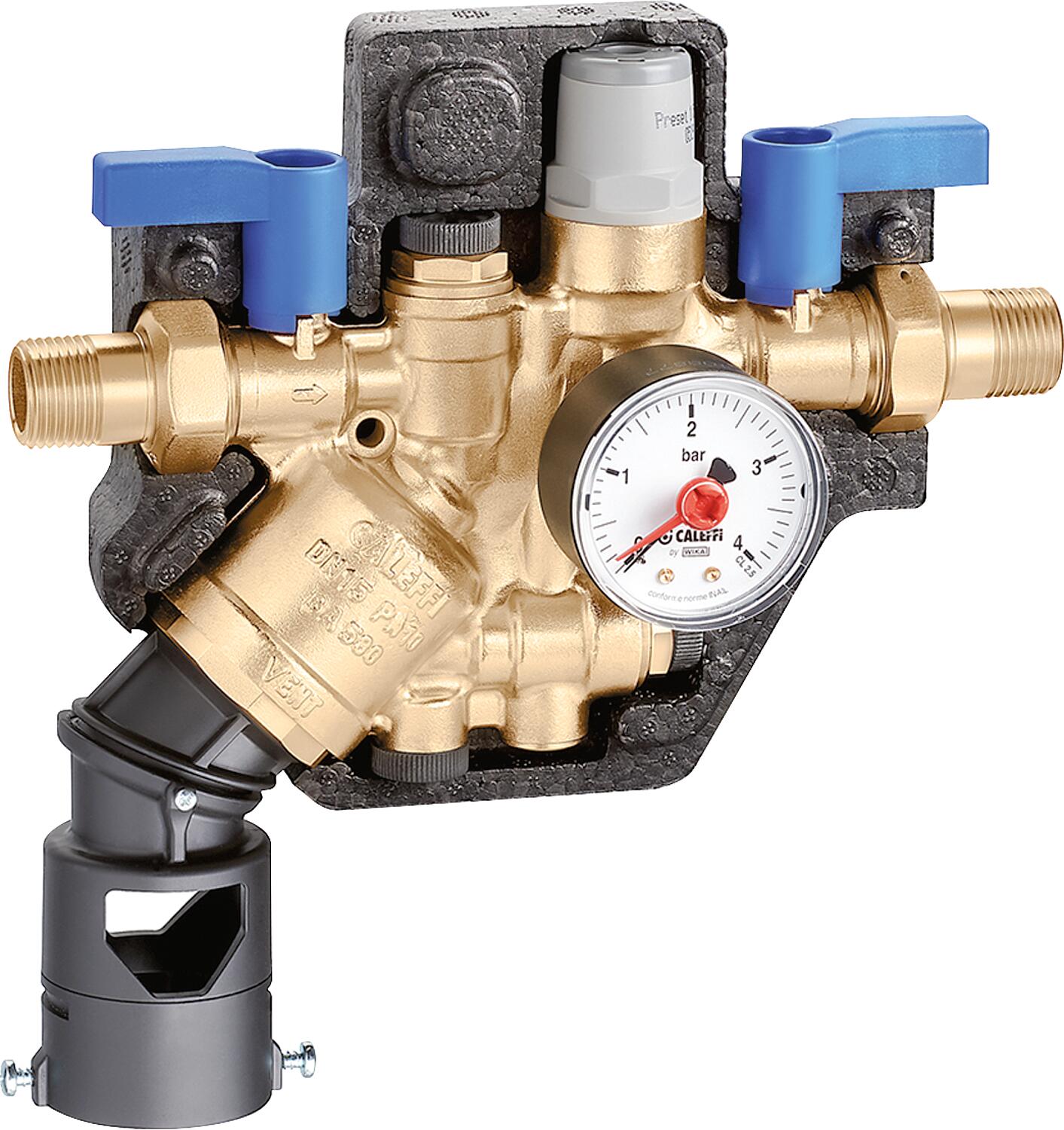

Automatic filling valve with system separator type BA

Automatic filling valve with system separator type BA

Bewertungen
CHF 205.15
CHF 205.15
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
CALEFFI
90 061 12
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For filling and maintaining pressure in closed heating systems (insulating shell included)

Technical data:

  • Connection diameter: DN 15 (1/2")
  • Maximum operating temperature: 65°C
  • Maximum operating pressure: 10 bar
  • Setting range: 0.8 to 4.0 bar
  • Housing material: dezincification-resistant brass
  • Filter material: Stainless steel
  • Insulation material: EPS
Brand CALEFFI
