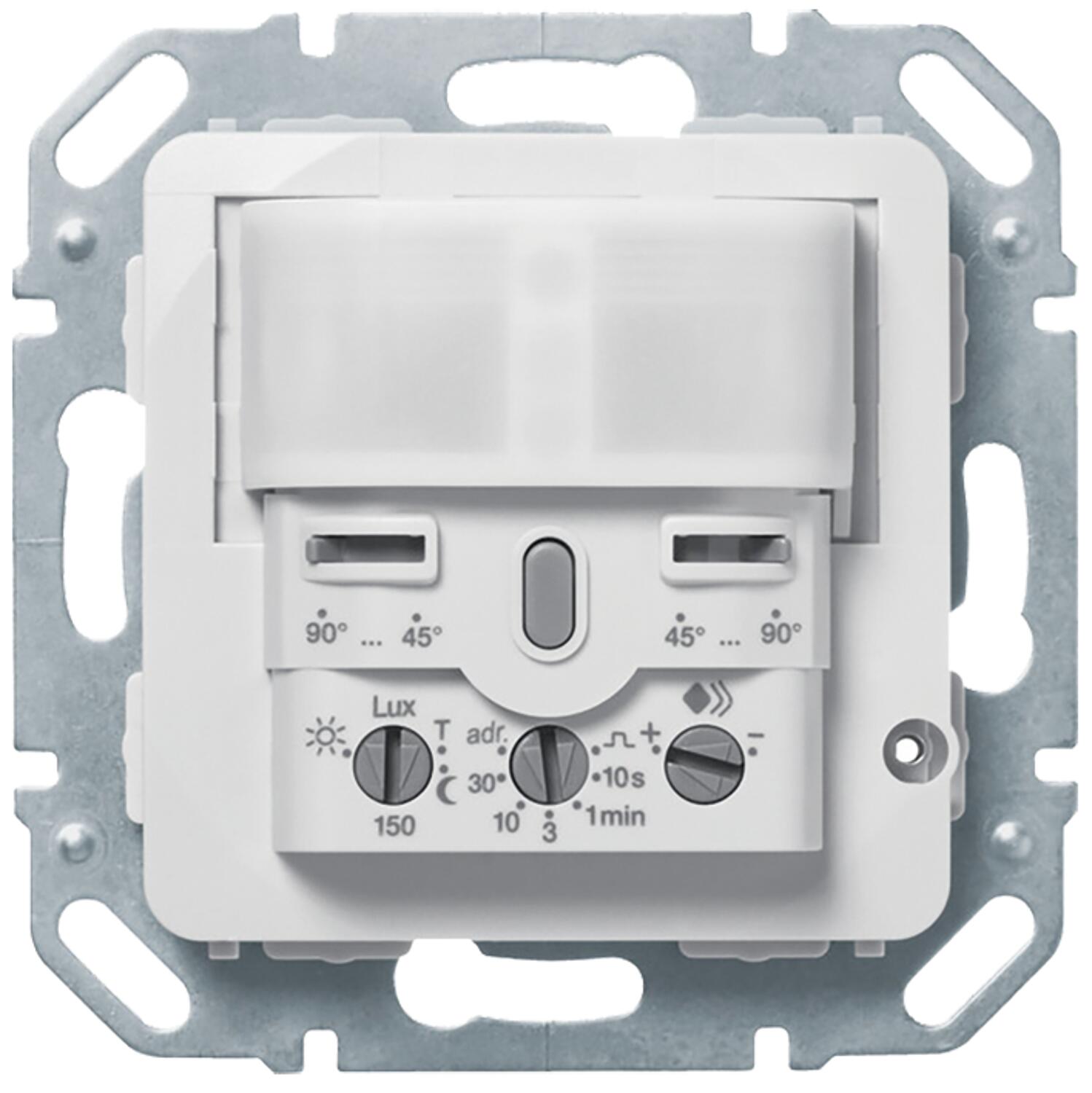

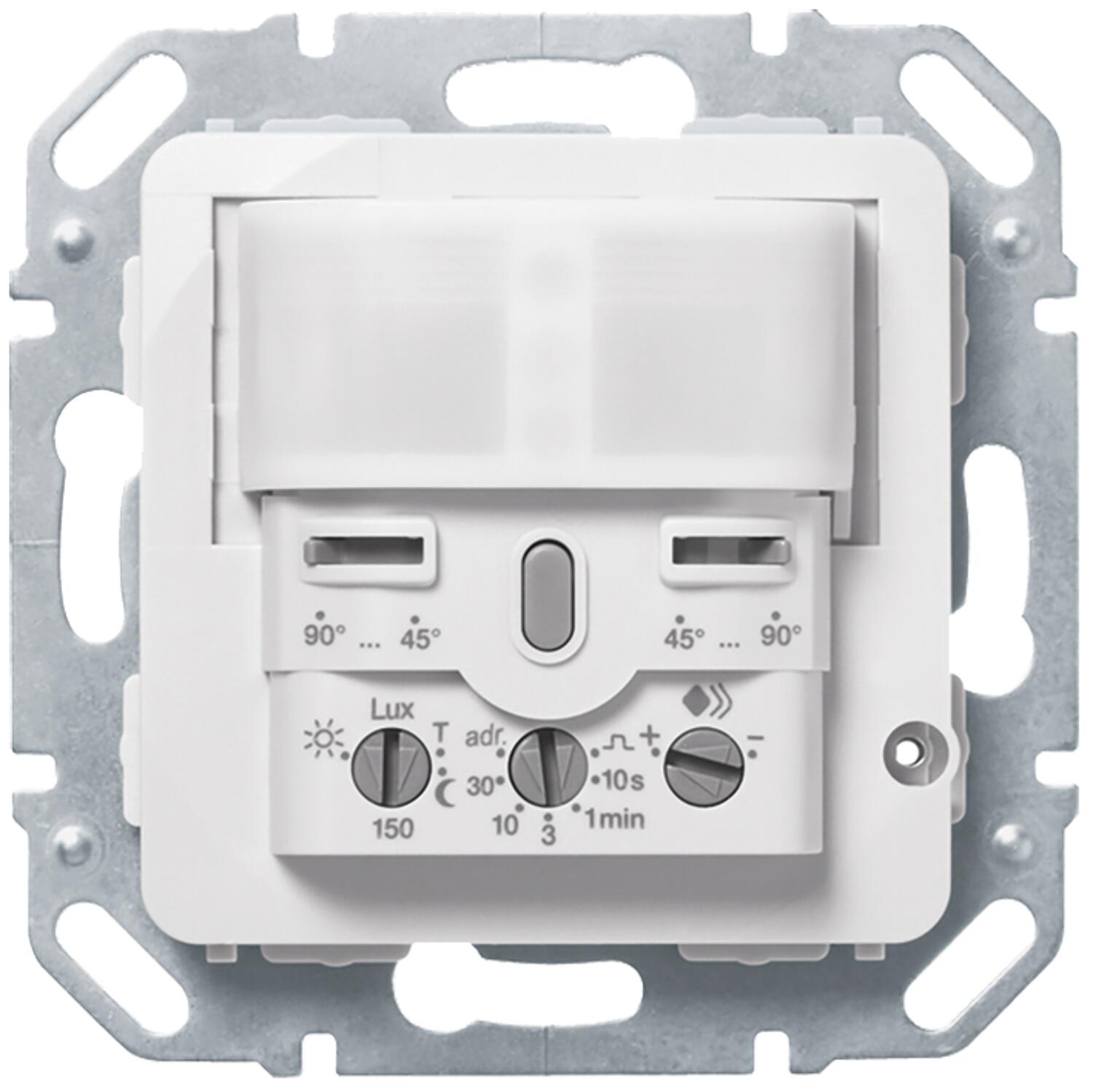

Berker motion detector module 1.1m S.1/Bx with integrated KNX flush-mounted bus coupler

Berker motion detector module 1.1m S.1/Bx with integrated KNX flush-mounted bus coupler

Bewertungen
CHF 151.30
CHF 151.30
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
Berker
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Operating voltage via bus: 2132 V DC
  • 3 operating modes: Automatic/Continuous ON/Continuous OFF
  • Anti-disassembly protection
  • Additionally at 62 142 60:
  • Integrated temperature sensor with output of measured values ​​via object

  • Bus current consumption (data transfer): 10 mA
  • Run-on time, adjustable: 10 s…30 min
  • Response brightness, adjustable: ≈ 5…1000 lx
  • Adjustable detection angle: approximately 45 to 90° per side
  • Operating temperature: 5 ... 45°C
  • Main design line: KNX Berker S.1/B.3/B.7
  • Material: Plastic/Metal
  • Button for automatic/permanent ON/permanent OFF
  • Master/slave operation for covering large detection areas
  • With test operation
  • Operating mode indicator via status LED red/green/orange
  • Setting the controller operating mode
  • Push-button functions for switching, dimming, blinds, value transmitter, scene, forced control
  • Integrated button for manual control of bus functions, configurable
  • Locking function configurable
  • Switching between scenes (1..8) is possible.
  • Additional channel for brightness-independent detector operation
  • Motion detector functions: switching, dimming, roller shutter/blind control, timer switch
  • Button functions: including switching, dimming, roller shutter/blind control, timer switch; button functions: including switching, dimming, roller shutter/blind control, timer switch
  • Two function channels for brightness-dependent functions
  • Additional channel for brightness-independent detector operation
  • Integrated bus coupler
  • Bus connection via terminal blocks
  • With spreading claws
  • Automatic triggering of bus functions upon movement within the detection range or manual control via integrated button
  • Prolonged direct sunlight on the upward-facing detection plane can cause the motion detector to fail. For indoor use only!
  • Device installation: Modular with frame cover 55 x 55 mm
Brand Berker
Manufacturer part number 80262180
Unit price CHF/piece
Detection area [m] ≈ 12 x 16
Type 80262180
Mounting height [m] 1.1
EAN 3250617154116
