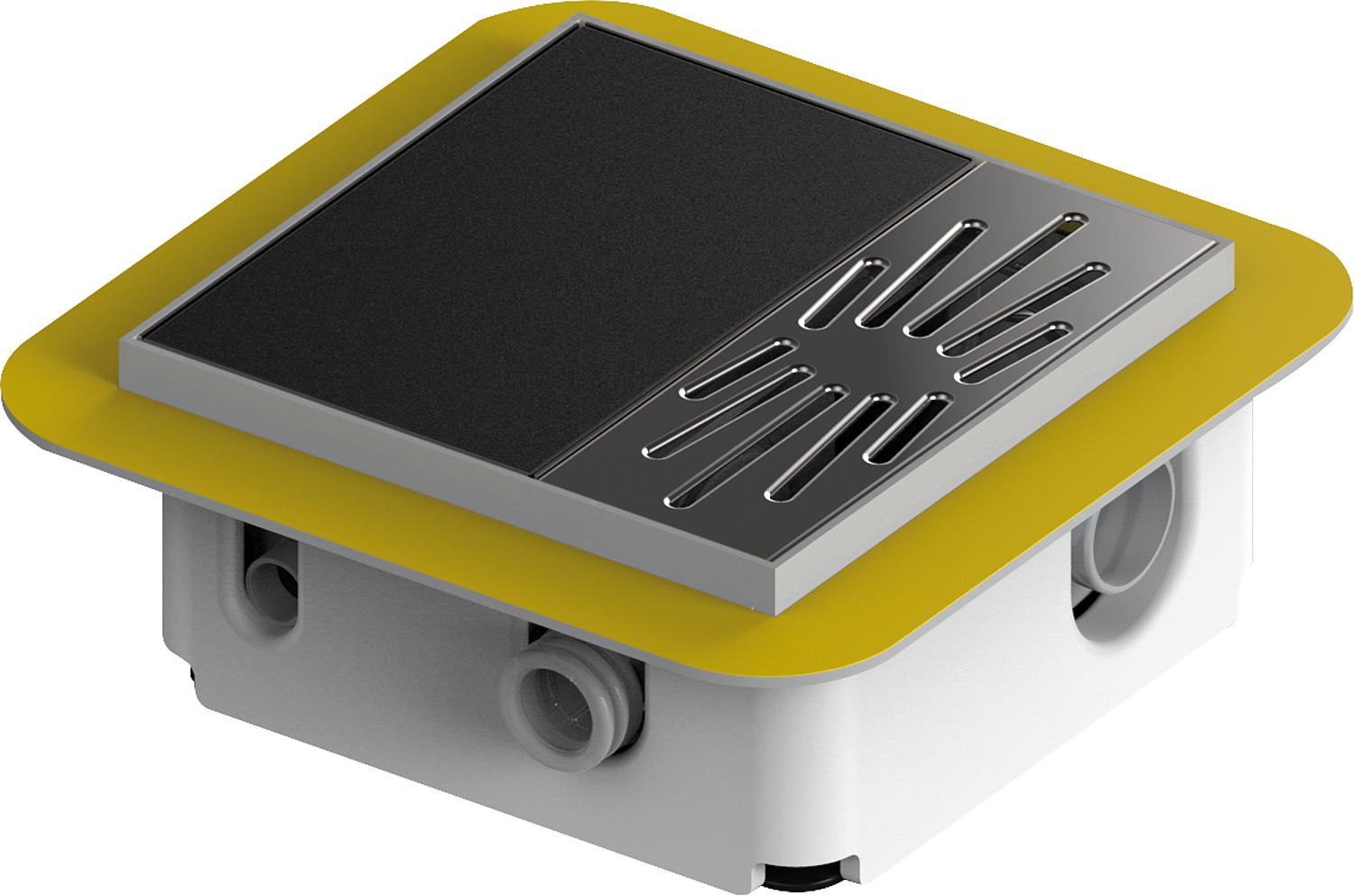

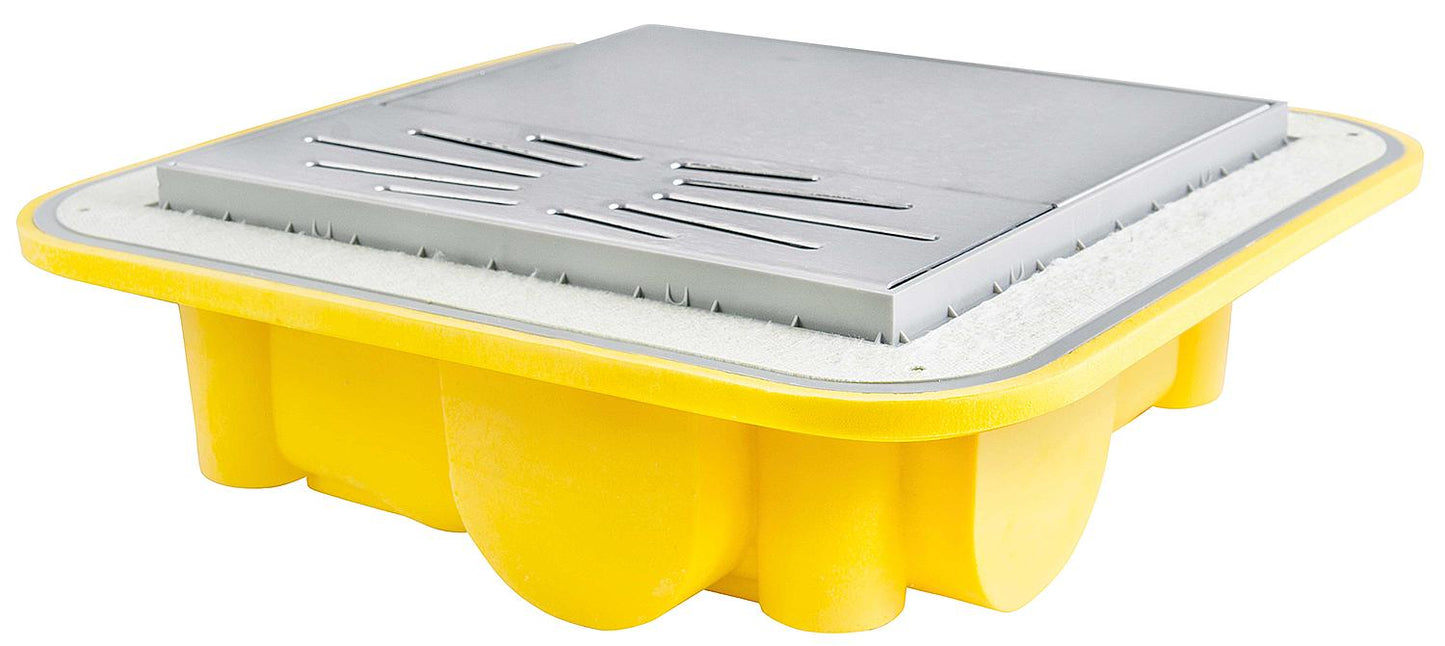

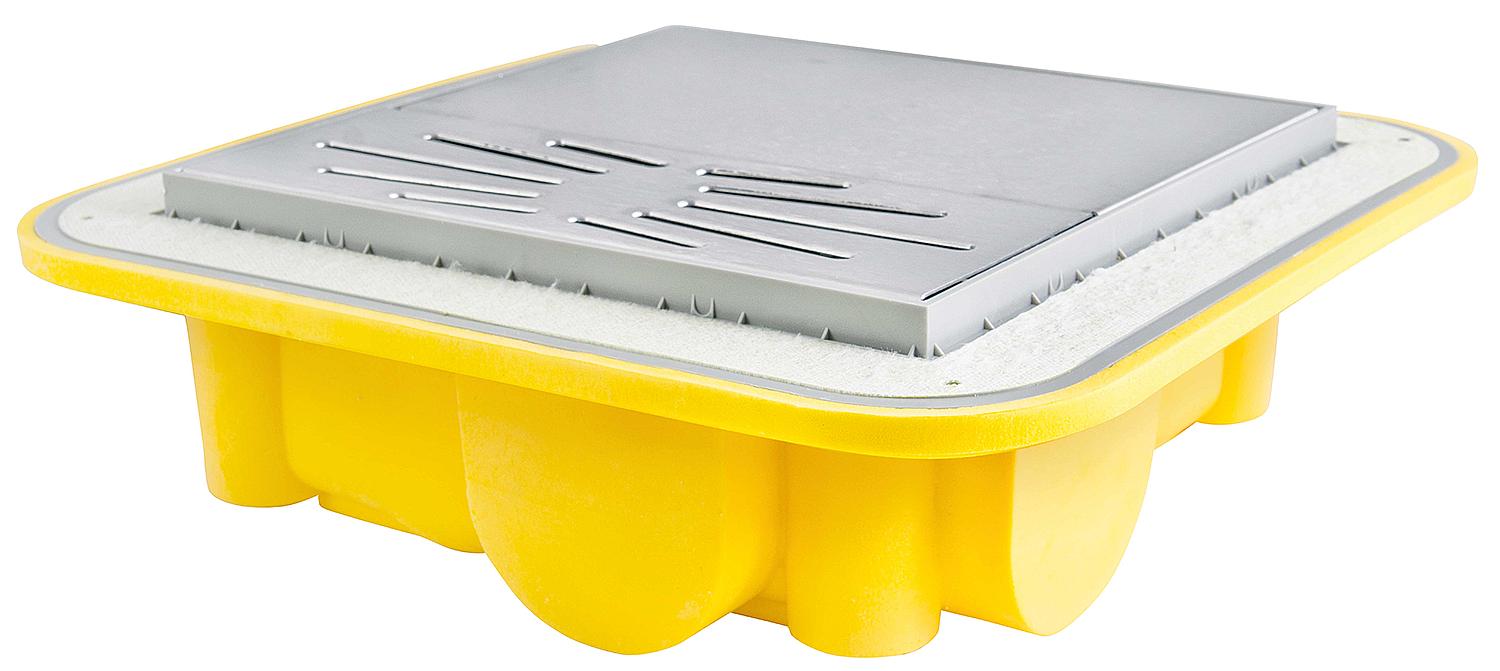

Bodenablaufpumpe Plancofix plus, 230 Volt

• The Plancofix is ​​a VDE-certified floor drain pump that makes it possible to install level-access/low showers even where it was previously not possible due to insufficient slope.
• Inlet from above as a floor drain or from the side (e.g. with a shower channel provided by the building)
• Reversible lid in stainless steel or as a tile
• Complete set with pre-assembled sealing fleece
• Plancofix plus version including insulation tray
• With secondary drainage level

Plancofix type Plancofix plus
Installation height: 105 mm 90 mm
Voltage: 230 V
Flow rate max: 1800 l/h 1500 l/h
Maximum delivery head: 2.3 m 1.3 m
Pressure outlet: DN 25 (1") DN 25 (1")
