• DIN 7504 M
• DIN/EN ISO 15481

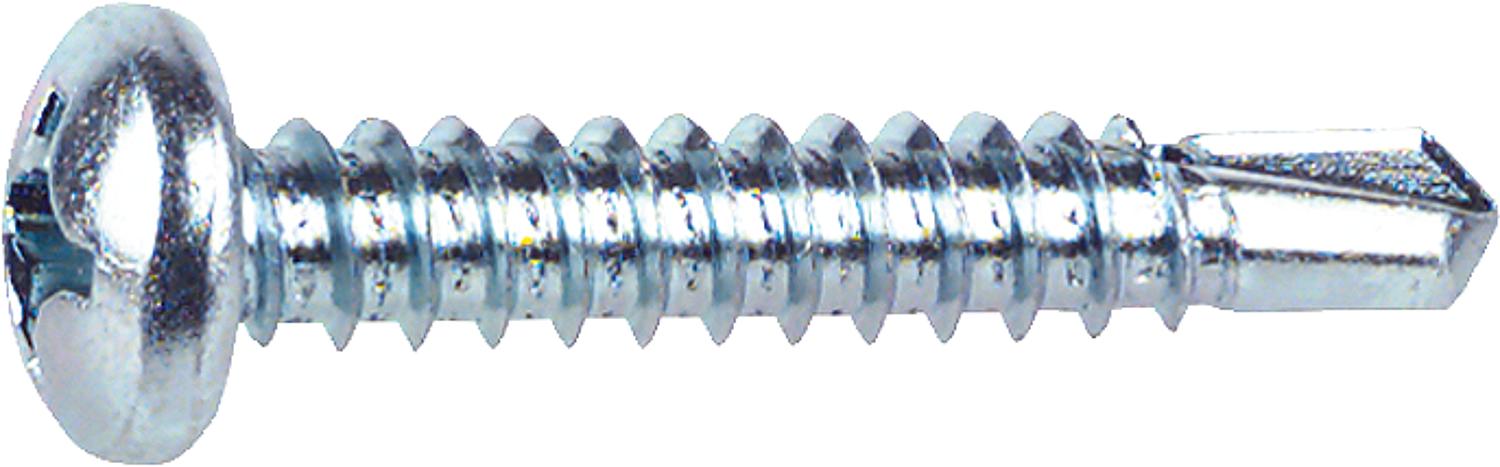

• Semi-circular head: Suitable for thin fittings with a through hole, lies flat on the material
• Fully threaded: Screw fastening of fittings with through holes, absorption of high tensile forces, high contact pressure
• Galvanized: For indoor and outdoor applications without direct weathering, but not a replacement for stainless steel
• Thread diameter: 5.5 mm
• Blade size PH 3
• Drilling range for sheet thicknesses of 1.75 - 4.4 mm
| Length [mm] | 19 |
|---|---|
| Unit price | CHF/unit price |
| Screw head | Pan head |
| Packaging unit | 1000 |
