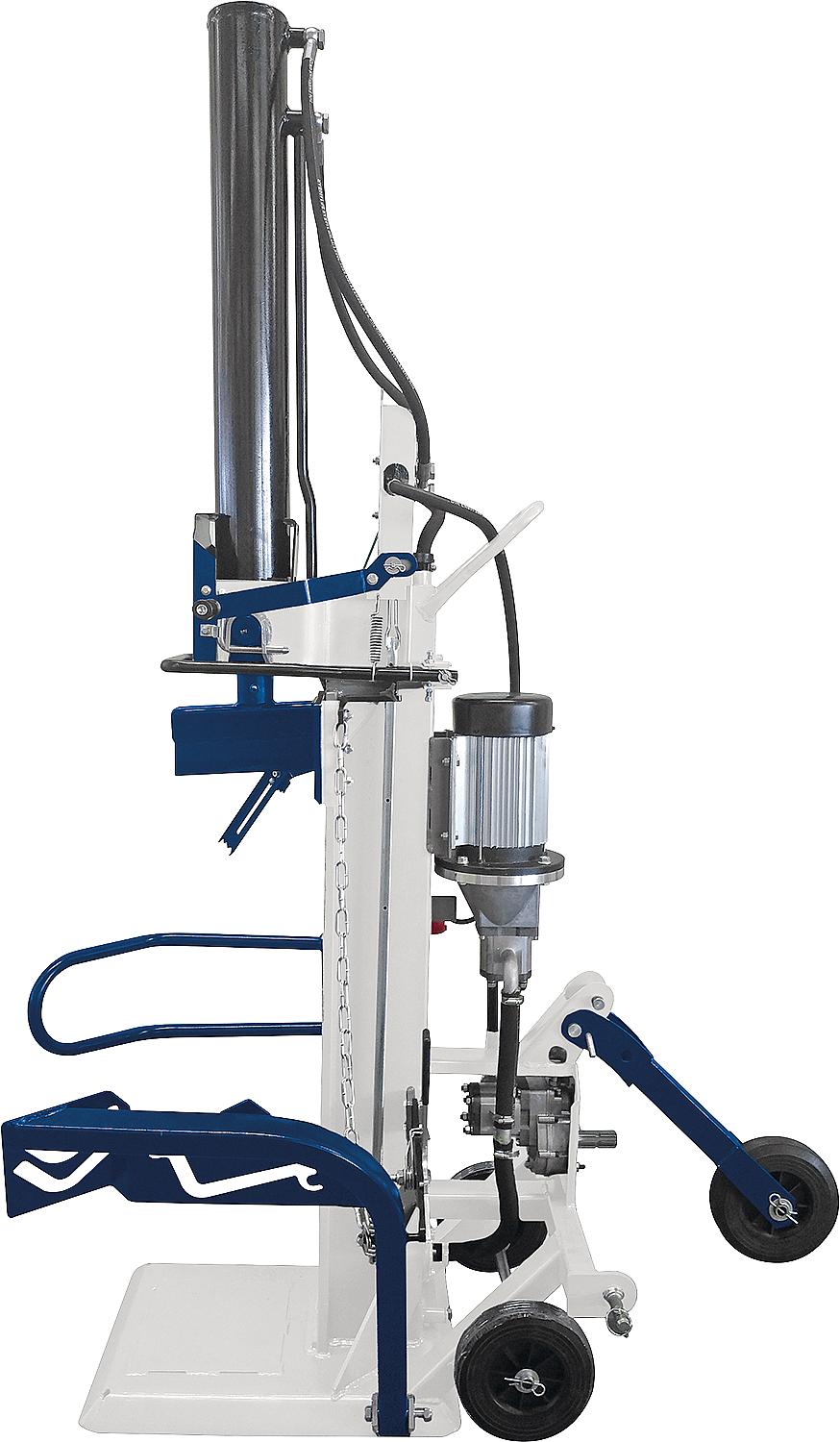

HOLZKRAFT HSE 16-1100 ZE log splitter, 4.5 kW, 400 V electric motor and PTO drive

• Max. splitting force (t): 15.3
• For wood lengths up to (mm): 1100
• Maximum log diameter (mm): 300
• Cylinder stroke (mm): 948
• Forward speed mm/s: 46,142 *
• Return speed mm/s: 64 *
• Motor power 50 Hz (kW): 4.5
• Electrical connection (V): 400
• PTO speed (min1): 540
• Minimum tractor power (hp/kW): 8/5.88
• Hydraulic oil tank capacity (l): 18
• Dimensions (mm): 1050 x 1700 x 2500
• Height of bearing position (mm): 2000
• Weight (kg): 272

* Speed ​​varies depending on the power of the drive source.

• Two-hand safety switch
• Mechanical log lifting device (Only for order nos. 80 198 08 and 80 198 10)
• With split log catcher
• Quick, tool-free gap height adjustment
• Convenient transport with hand-operated drawbar
• Chassis with extra-large air tires and additional support wheel
• Impact and scratch resistant thanks to high-quality powder coating
• Space-saving storage thanks to a retractable cylinder
• High-performance industrial hydraulic system
• Phase inverter on all 400V models
