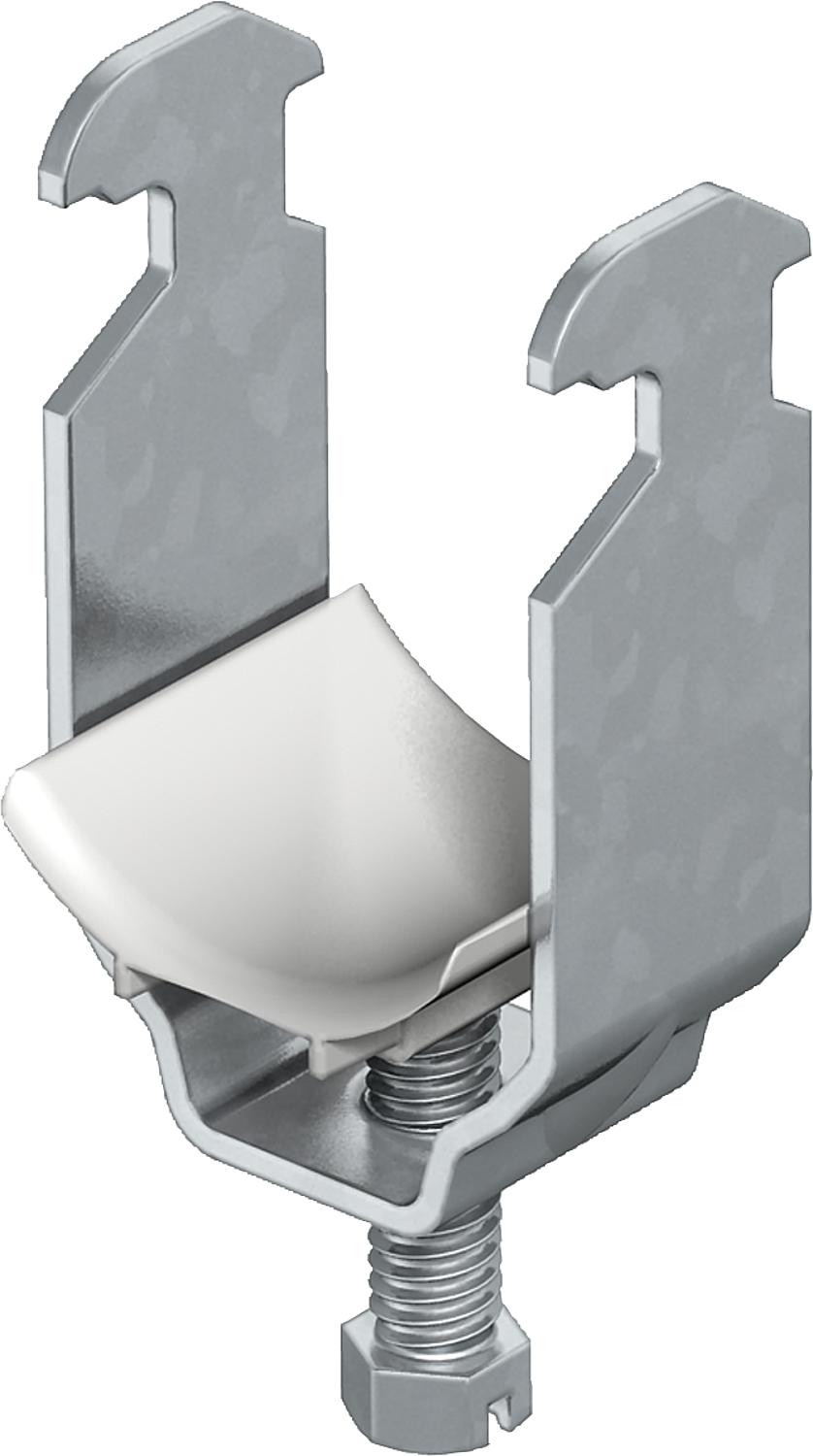

U-bolt clamp with hammerhead base 12-16 mm type 2056 / 1 pc.

• Suitable for all C-profile rails with a 16-17 mm slot width
• Clamp and screw made of steel, hot-dip galvanized; pressure tray made of polypropylene, halogen-free.
• Colour: RAL 7035, light grey

Important dimensions of the clamp (in mm)

DABCG tx HL

• 8 12 23 16 34 M6 1.2 5 40 34
• 12 16 23 20 34 M6 1.5 5 44 34
• 16 22 23 27 34 M6 1.5 5 50 34
• 22 28 23 33 34 M6 2 5 58 34
• 28 34 23 33 34 M8 2 5 58 34
• 34 40 23 45 34 M8 2 5.5 72 37.5
• 40 46 23 51 40 M8 2 5.5 79 44.5
• 46 52 23 57 40 M8 2 5.5 79 44.5
• 52 58 23 64 40 M8 2.5 6.5 93 45.5
• 58 64 23 70 40 M8 2.5 6.5 99 45.5
• 64 70 25 76 40 M8 2.5 6.5 106 45.5
