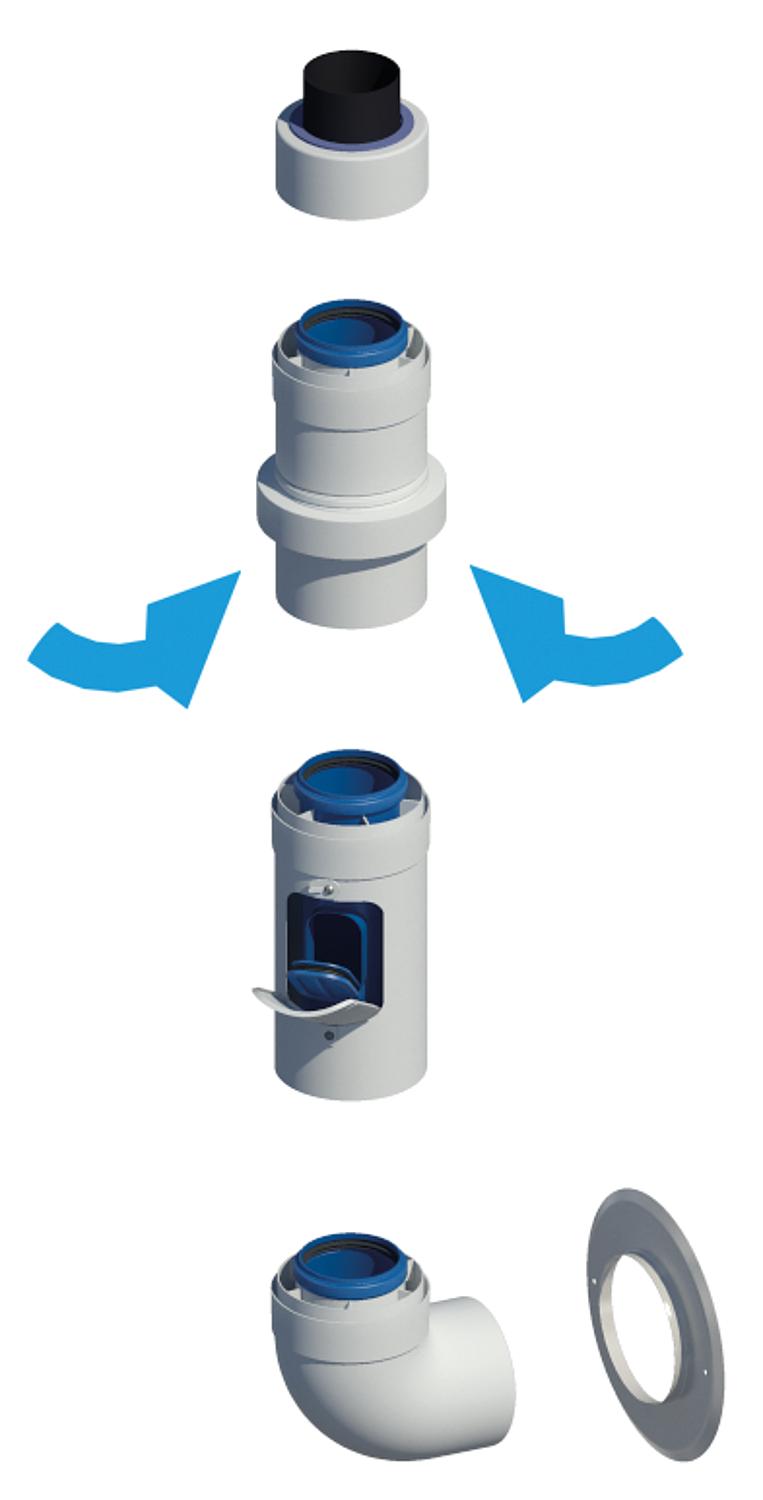

CondensBlue Basic Set 6 Exterior Wall, White AC-Z DN 80/125

Independent of room air

Scope of delivery:

• 1 x AZC outer wall muzzle closure
• 1 x AZC external wall air intake piece
• 1 x AZC external wall inspection piece
• 1 x AZC exterior wall arc 87°
• 1 x AZC exterior wall flashing

Operating conditions:

• Gas condensing technology and oil condensing technology
• Maximum operating temperature: 120°C (140°C for short periods)
• Test pressure: P1=200 Pa/H1=5000 Pa

Permit:

• CE 0036 CPD 9184 0012007
• Single and double-walled systems

Material:

• Exhaust gas-carrying components made of high-molecular-weight polypropylene (PP)
• Sealing elements made of ethylene propylene diene monomer rubber (EPDM)
• Outer tube made of metal, painted white (RAL 9010)

We'll calculate your chimney!

• In the online shop www.weinmannschanz.de you will find the PDF file “Calculation Skoberne exterior wall system” under Download planning forms.

Please return the completed form to us. We will then perform the cross-sectional calculation and prepare a customized quote for you.
