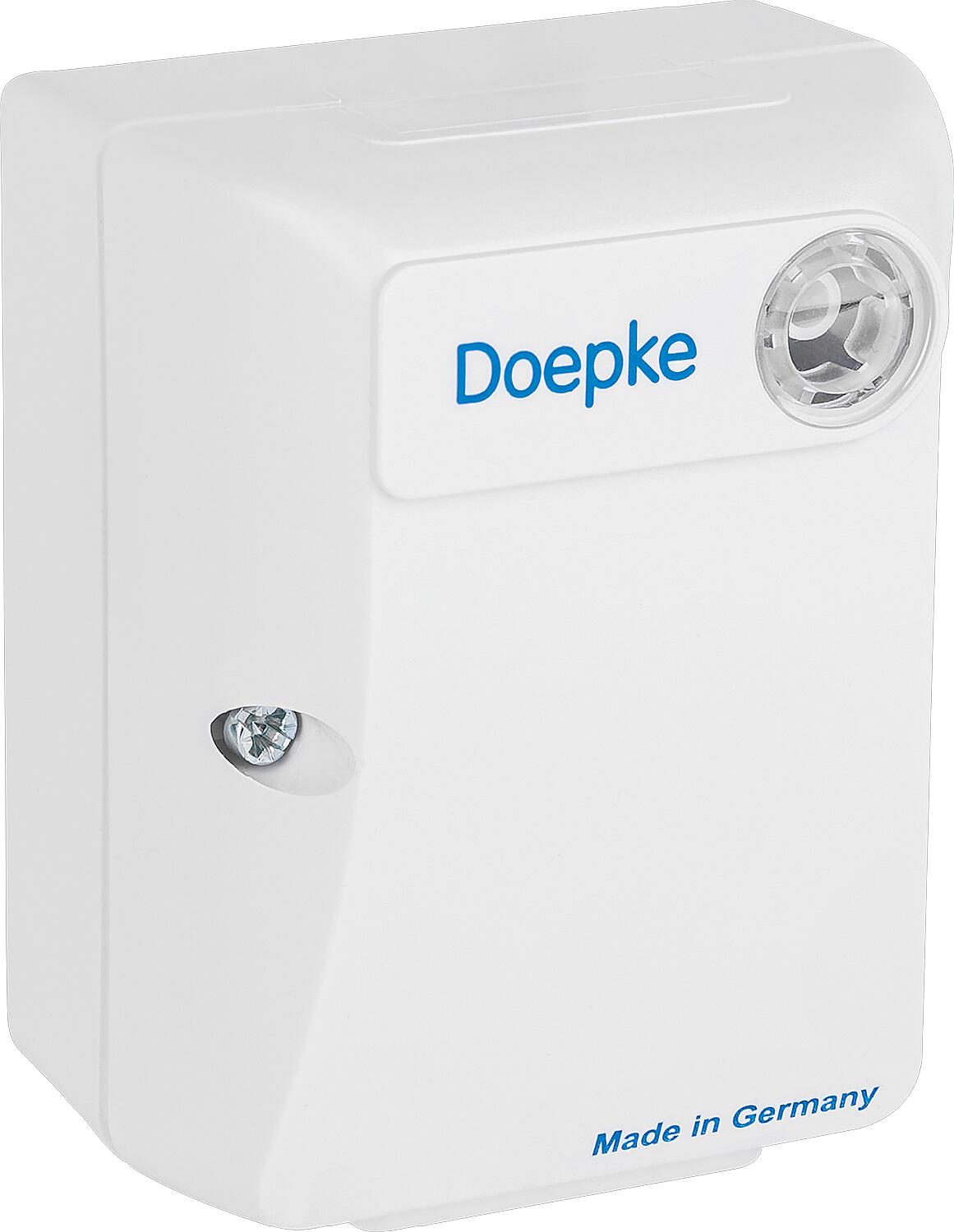

Twilight switch Dasy 016-230 V TC for time- and light-dependent lighting control, white

Bewertungen

| Eine Rezension schreiben

CHF 84.75

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Doepke

62 144 12

sofort lieferbar

Security policy

Delivery terms

Return policy

Protection rating: IP54
Rated current: 16 A
Suitable for controlling street lighting, buildings and industrial sites
Function:
Switch on when a lower light level is reached.
Switch off when a maximum light level is exceeded.
With integrated timer for energy saving
Adjustable time intervals for light control
With fixed hysteresis
The rotary potentiometer allows the preselection of the twilight level at which the lighting should be switched on.
Operating voltage: 230 V
Threshold range: 1 lux … 200 lux
Hysteresis factor: 1.5
On/off delay range: max. 10 s / max. 40 s
Connection terminals: 4 mm²
Connection type: Screw terminal
Installation: Outdoor installation/mast installation
Housing/cover material: Polycarbonate
Building regulations/standards: EN 606691
Dimensions (W x H x D): 70 x 90 x 53 mm
