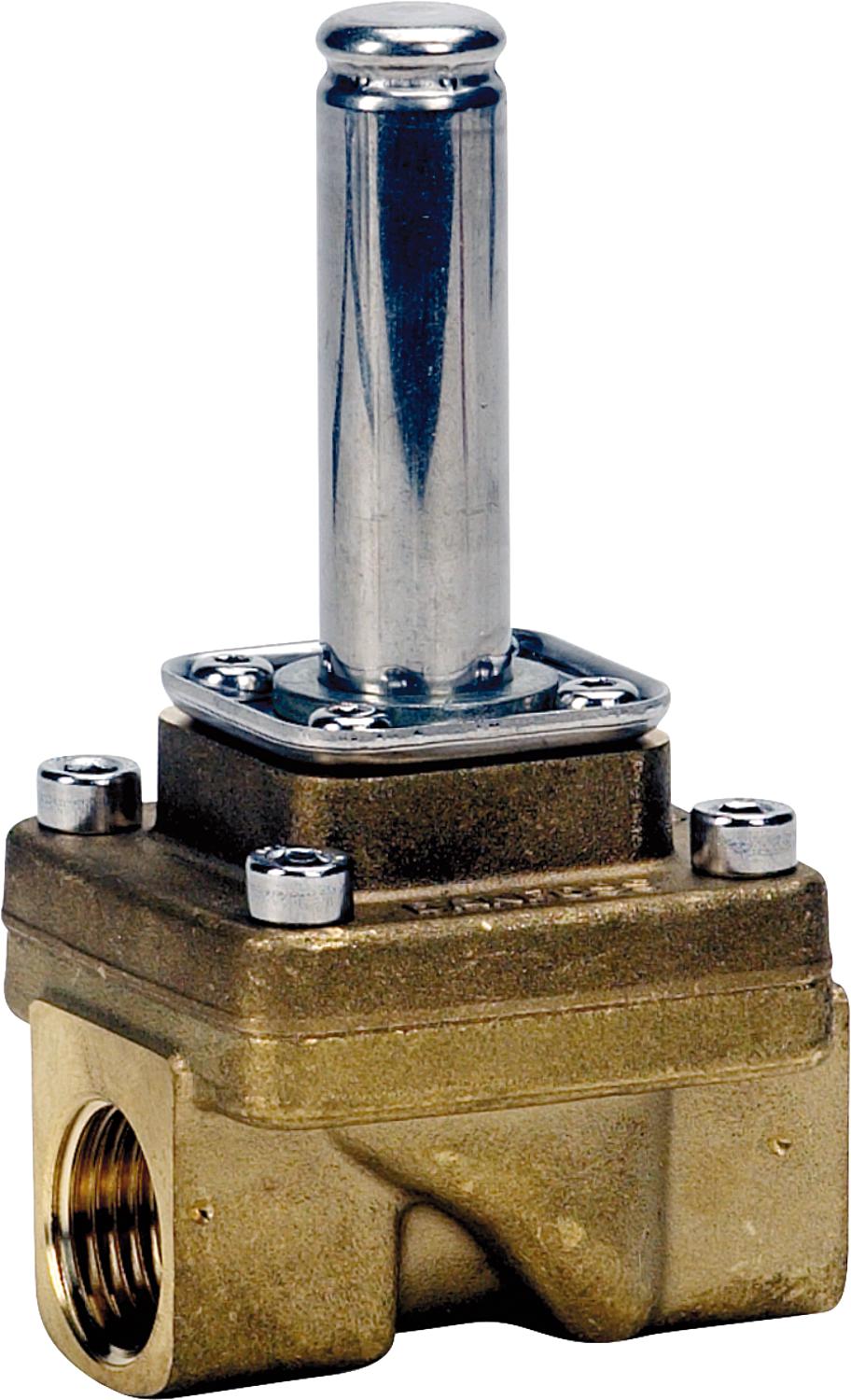

Danfoss Zwangsservogesteuertes Magnetventil Typ EV250B12 R 1/2" W

Bewertungen

| Eine Rezension schreiben

CHF 98.50

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Danfoss

95 009 01

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• Without coil, normally closed (NC).
• For use in closed circuits with low, undefined pressures - e.g. heating systems or similar, no differential pressure is required.
• Neutral liquids (max. 50 cSt) and gases
• Brass valve body
• Max. ambient temperature: 40°C to 80°C depending on coil type
• Media temperature: -30°C to +140°C
• Sealing material: EPDM for water, VITON for oil/air
• Maximum test pressure: 20 bar
• Quick-closing

Media:
O = Oil, L = Air, W = Water, B = Brine, D = Steam
1) Also suitable for water (W) up to max. 60°C; for quiet operation, a coil with rectifier is recommended. (Order no. 95 010 13)

Solenoid valves are supplied without a coil; please order the coil separately in the required voltage!

L x H [mm]	58 x 93.5
Brand	Danfoss
Manufacturer part number	032U5252
Unit price	CHF/piece
Minimum media temperature °C, maximum °C	-30 to +140
Size	DN 15 (1/2")
Media	W
Type MV	EV250B 12 BD
Identification number	32U5252
Permissible differential pressure (Δp) min. bar, max. bar	0 to 16
kv value [m³/h at ∆p]	4
Suitable coil type	12 W AC, 16 W DC
