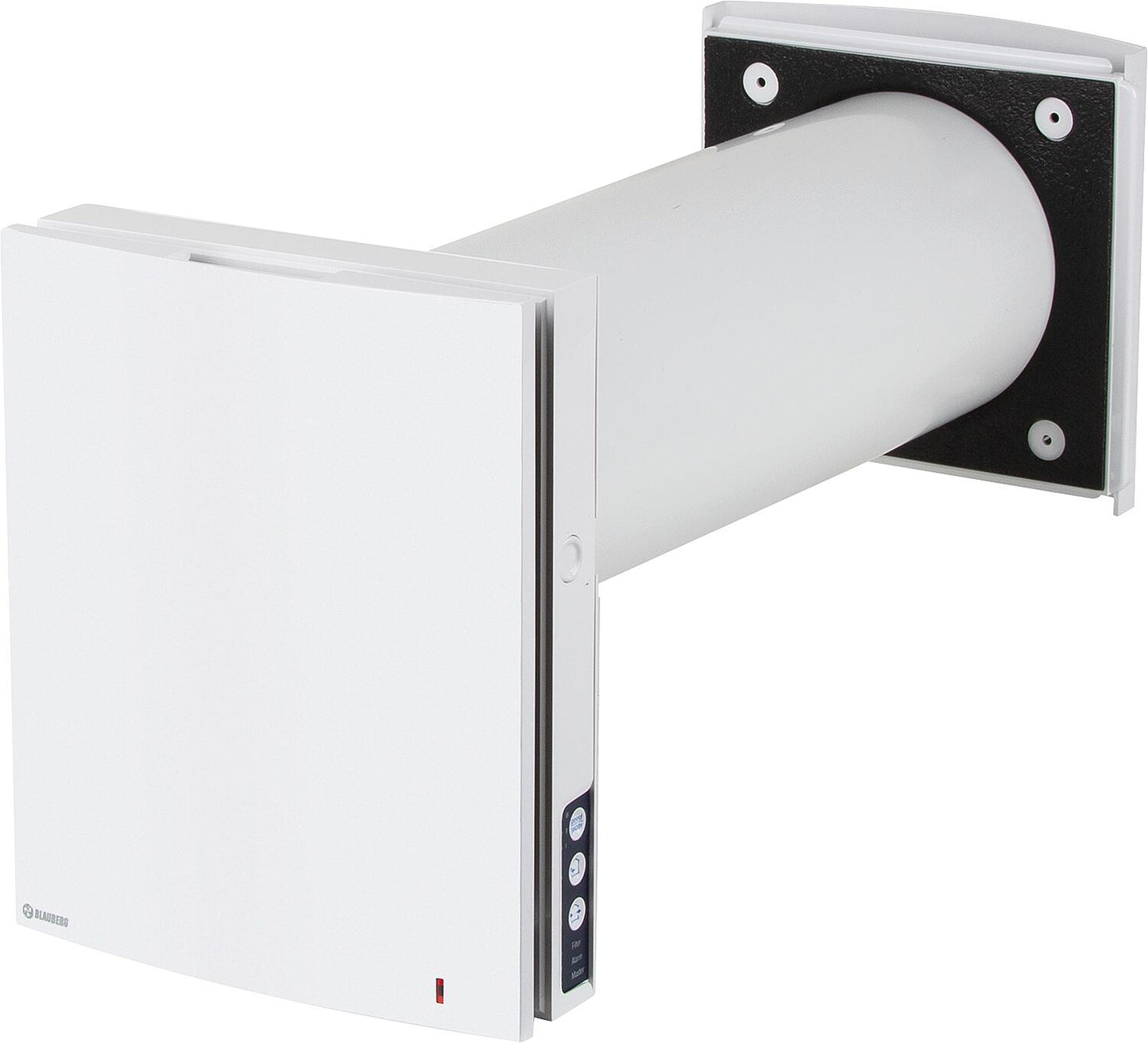

• Dual-channel airflow system for energy-efficient, autonomous ventilation of odor-laden rooms, such as kitchens and bathrooms, with heat and moisture recovery
• A ceramic enthalpy heat exchanger ensures humidity balance, and a controllable air exchange creates an individually adapted microclimate.
• Operating modes:
- Reversible operation with heat recovery, direction of rotation changes every 70 seconds.
- Ventilation operation: One fan runs in exhaust mode, the other in supply mode at the set ventilation level. The fans do not change their direction of rotation.
- Night operation, party operation
• Integrated WLAN for coordinated operation of up to 8 devices (depending on the connection scheme)
• Control panel on the inner panel + app controllable with Android or iOS
• Weekly schedule, operating hours counter, Wi-Fi, filter maintenance indicator, timer, humidity sensor
Technical data:
• Flow rate: 10 / 20 / 30 m³/h
• Voltage: 230 V, 50 Hz
• Power consumption: 2.17 / 3.66 / 6.62 W
• Sound pressure (at 3 m): 24 / 31 / 34 dB(A)
• Protection rating: IP24
• Heat supply rate up to 85%
• Energy Efficiency Class: A
• Wall thickness: 300 - 500 mm
• Required core drilling: ø 162 mm
• Filter class: G3
• Scope of delivery:
- EC blower unit with heat exchanger
- Inner panel, white plastic
- Outer panel, white plastic
- Wall penetration ø 160 x 500 mm
- Infrared remote control
| Brand | Blauberg |
|---|---|
| Manufacturer part number | 8053481 |
| Unit price | CHF/set |
| Energy Efficiency Class | A |
