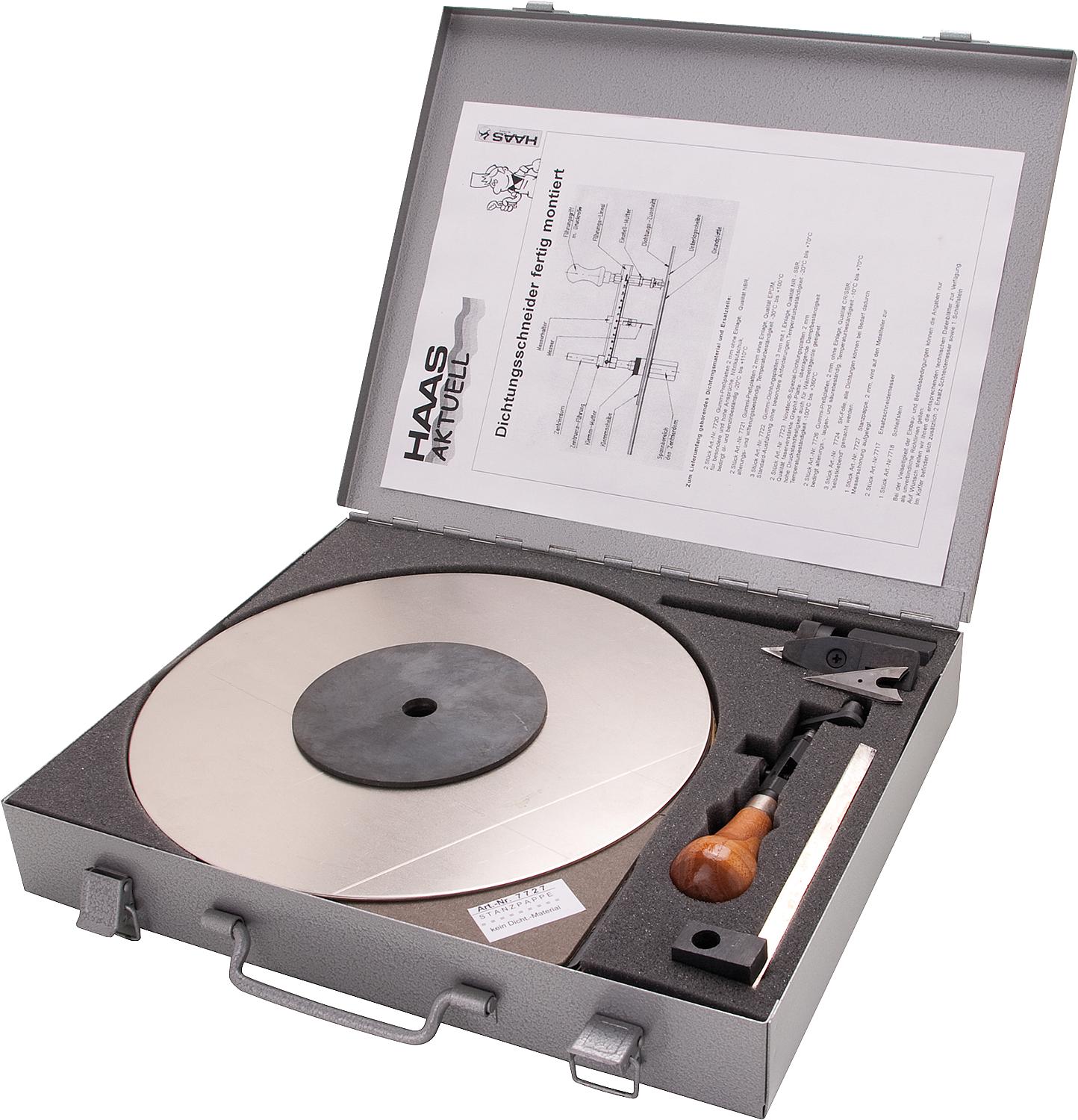

Seal cutting case 7700

• For the individual production of special seals with an outer diameter of 38-240 mm.
• Dimensions (W x H x L): 275 x 48 x 330 mm

Consisting of:

• 2 pieces of rubber press plates:
• Thickness: 2 mm
• Without insert
• Quality: NBR
• Nitrile rubber
• For particularly high demands
• Oil and petrol resistant

• 2 pieces of rubber press plates:
• Thickness: 2 mm
• Without insert
• Quality: EPDM
• Ageing and weather resistant
• Temperature resistance: -30°C to +100°C

• 3 pieces of rubber sealing plates:
• Thickness: 3 mm
• With 1 insert
• Quality: NRSBR
• Standard version without special requirements
• Temperature resistance: -20°C to +70°C

• 2 pieces of special sealing plates:
• Thickness: 2 mm
• Fiber-reinforced graphite plate
• Superior vapor resistance
• High pressure resistance
• Also suitable for heat transfer oil
• Temperature resistance: -100 to +360°C

• 3 pieces of SK film:
• All seals can be made self-adhesive with this.

1 piece of die-cut cardboard:

• Thickness: 2 mm
• It is placed on the metal plate to protect the knife.

2 replacement blades

1 whetstone

• Assembly and operating instructions
