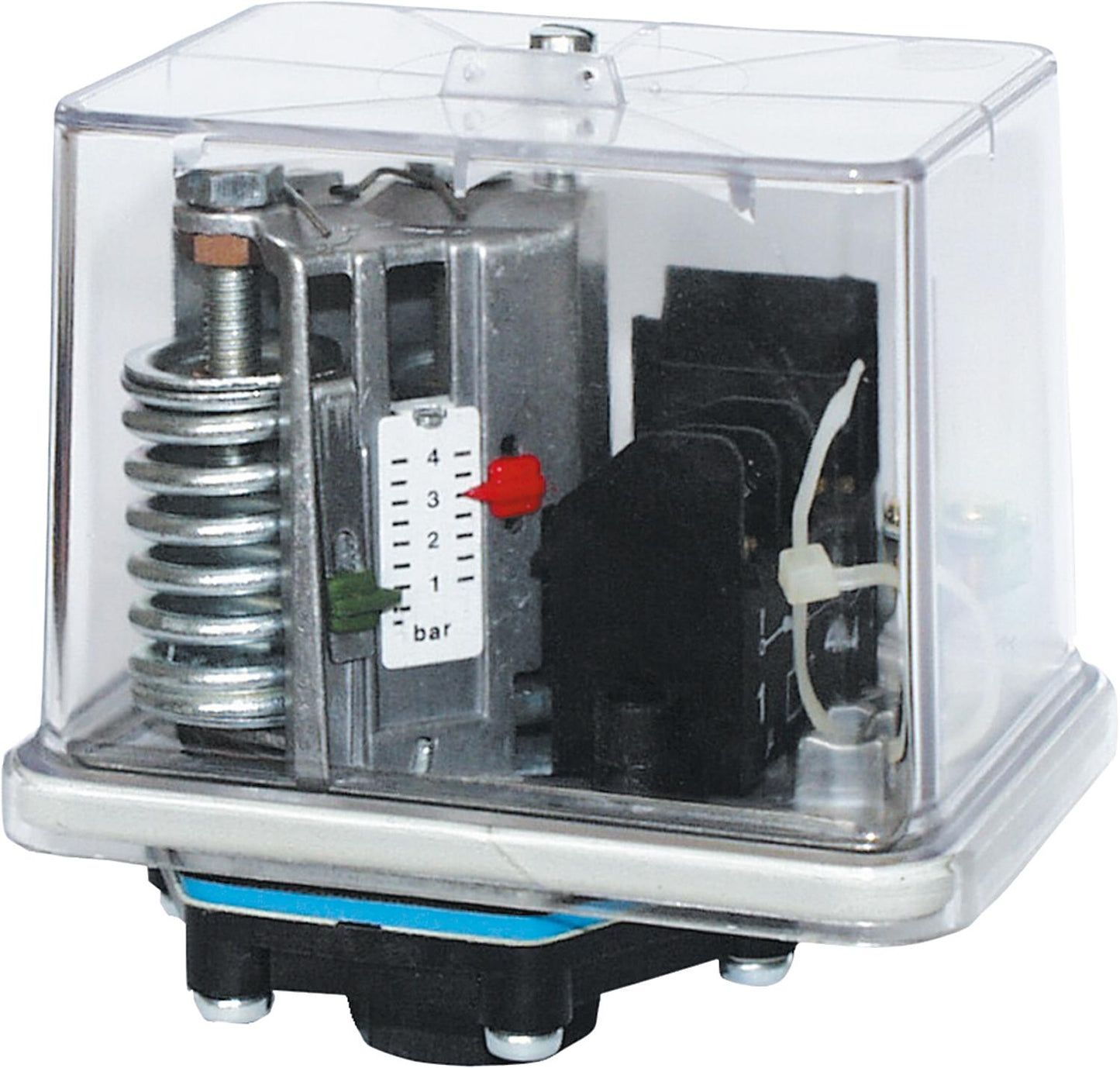

• With Perbunan membrane
• Monitoring and control of the pressure of liquids and gases in pipelines, boilers, pressure vessels and apparatus
Features:
• Large connection room
• Easy setup
• Protection class: IP 65
• Worldwide approval
• High repeatability
• Sealable hood
• Separate setting of the upper and lower switching points
• Pressure connection: DN 10 (3/8")
Applications:
• Compressed air technology
• Water technology
• Construction machinery
• Water extinguishing systems
• Oil pressure monitoring
• Mining applications
• For demineralized water
• With plastic pressure connection YG 3/8" IG
• DIN ISO 228/L
• Polyamide
• 230 V
| Smallest pressure difference at the lower end of the range | 0.07 |
|---|---|
| Smallest pressure difference at the upper end of the range | 0.11 |
| Max. operating pressure [bar] | 6 |
| Unit price | CHF/piece |
| Factory setting bar | 0.5/1.5 |
| Upper switching point adjustable (bar) | 0.11 - 2 |
| Lower switching point adjustable (bar) | 0.04 - 1.89 |
| Maximum test pressure (bar) | 12 |
| Type | FF 4-2 DAY |
