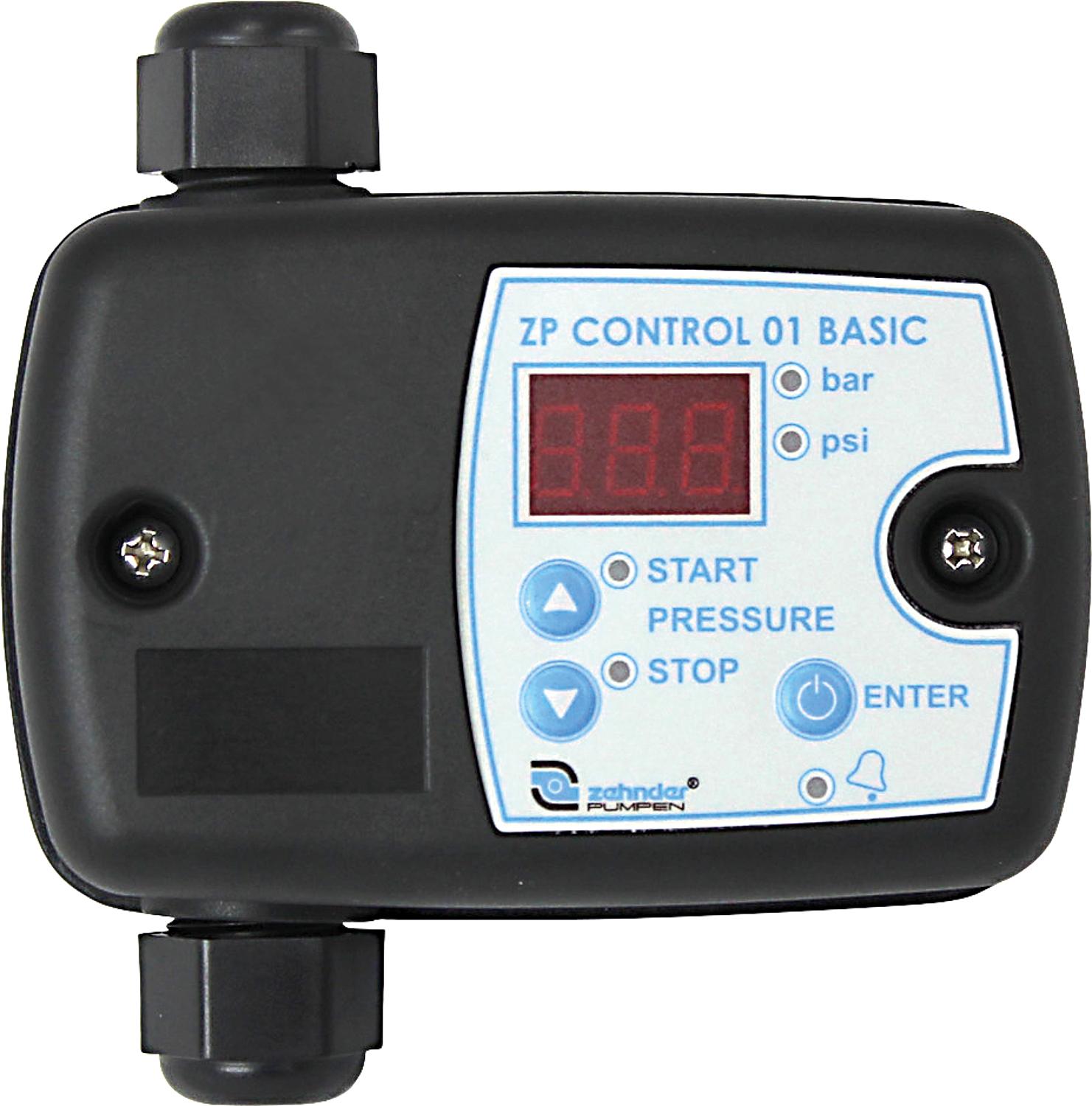

Zehnder ZP Control 01 Basic DN8 (1/4")IG pressure switch

• Control unit for garden pumps, domestic water supply systems and well pumps
• Pressure switches turn the pumps on depending on the pressure and off depending on the flow rate after water consumption has ended.
• Voltage 230 volts, 50 Hz
• Medium: Clear freshwater
• With dry-run protection

• Digital pressure display
• Maximum current: 16 A
• Protection class: IP 55
• Maximum operating pressure: 8 bar
• Adjustable cut-in pressure: 0.5 to 7.0 bar
• Connection: DN 8 (1/4") female thread
• Media temperature max.: 50°C
• With Schuko plug
• The pressure switch can only be operated in conjunction with an expansion vessel.
