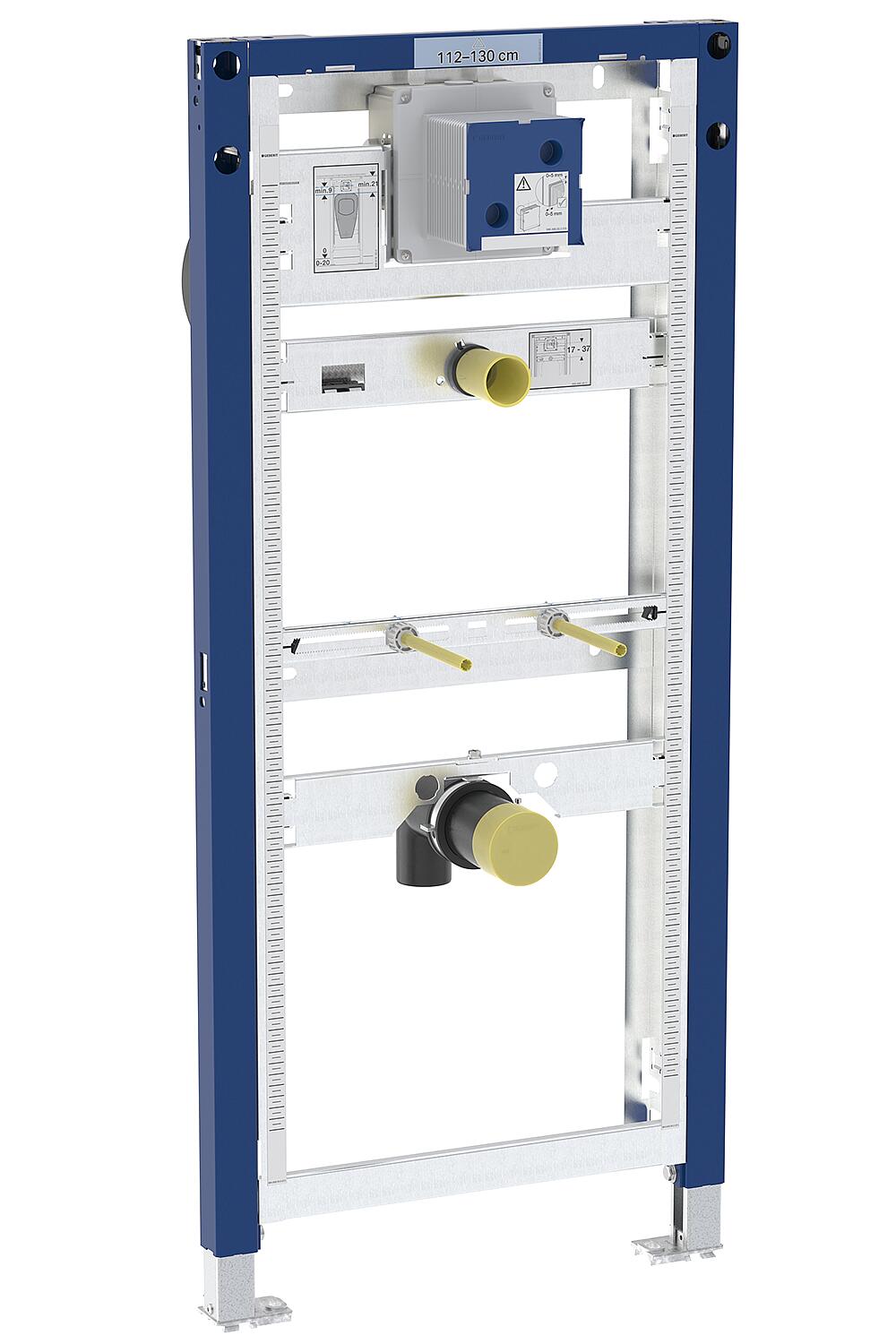

Duofix element for urinal 112-130cm, universal

• Width: 500 mm
• Self-supporting, powder-coated frame
• Footrests with anti-slip properties
• For installation in partial or full-height Geberit Duofix system walls
• Suitable for floor constructions 0 - 250 mm
• Rotatable base plates, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• For drywall construction

• Universal flush-mounted housing for Geberit urinal controls
• Water connection on the right side of the flush-mounted housing
• Shut-off valve with throttle, pre-assembled
• Mounting bracket for inlet ø 32 mm, height adjustable
• Urinal fixings M8, width and height adjustable
• PE-HD connecting bend ø 63/50 mm
• Ref. No.: 111.616.00.1
