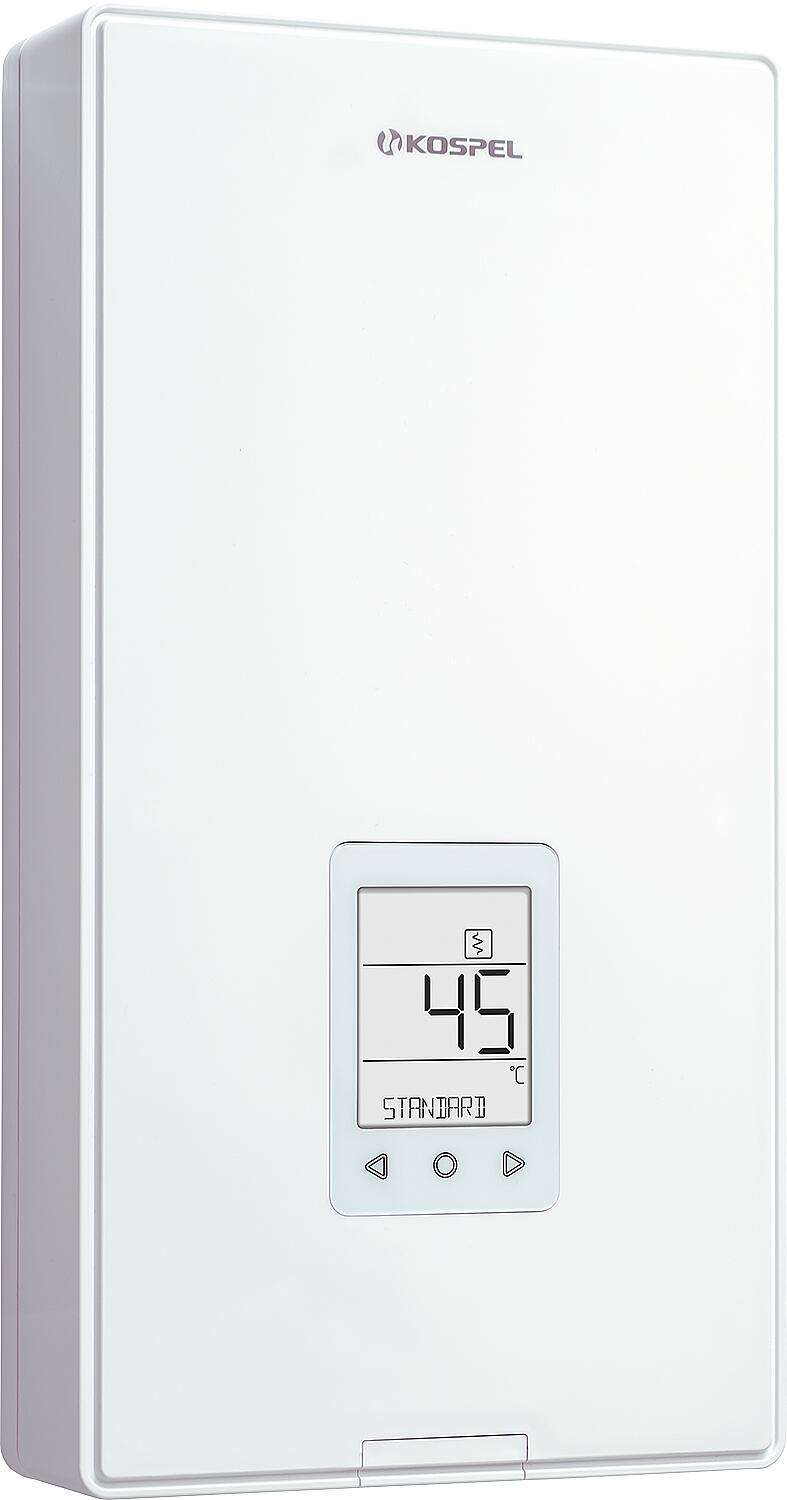

Kospel PPE4.M electronic instantaneous water heater, LCD 17/18/21/24 kW, 400 V

• Electronically controlled • For one or more sampling points • Suitable for solar thermal systems up to a maximum inlet temperature of 60°C • Always precise temperature thanks to electronic control • 4 switchable power outputs 17 / 18 / 21 / 24 kW (will be determined during installation) • Universal mounting plate for drill-free replacement of almost all old devices Area of ​​application: • Individual and group supply for bathroom, kitchen sink or washbasin • Remotely controllable via app: - Convenient handling and parameter management - Simple energy and water consumption control - Programming of 3 desired temperatures • Temperature selection range: 30°C to 60°C • Scalding protection and child safety lock through programming of the maximum temperature.

Models PPE4.L/PPE4.B/PPE4.M
Technical data:
Energy efficiency class	A	A	A	A
Rated power [kW]	17	18	21	24
Permissible operating pressure [bar]	10	10	10	10
Water connections (screw connections)	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")
Hot water output at Δt = 30 K [l/min]	8.1	8.7	10.1	11.6
Switch-on max. flow rate [l/min]	2.5	2.5	2.5	2.5
Voltage [V]	3~ / PE 400	3~ / PE 400	3~ / PE 400	3~ / PE 400
Rated current [A]	3 x 24.7	3 x 26	3 x 30	3 x 34.6
Minimum required cable cross-section [mm²]	4 x 6	4 x 6	4 x 6	4 x 6
Dimensions (W x H x D) [mm]	250 x 478 x 99	250 x 478 x 99	250 x 478 x 99	250 x 478 x 99
Humidity level according to VDE	IP 25	IP 25	IP 25	IP 25

Brand	Kospel
Unit price	CHF/piece
EAN	5906564220609
