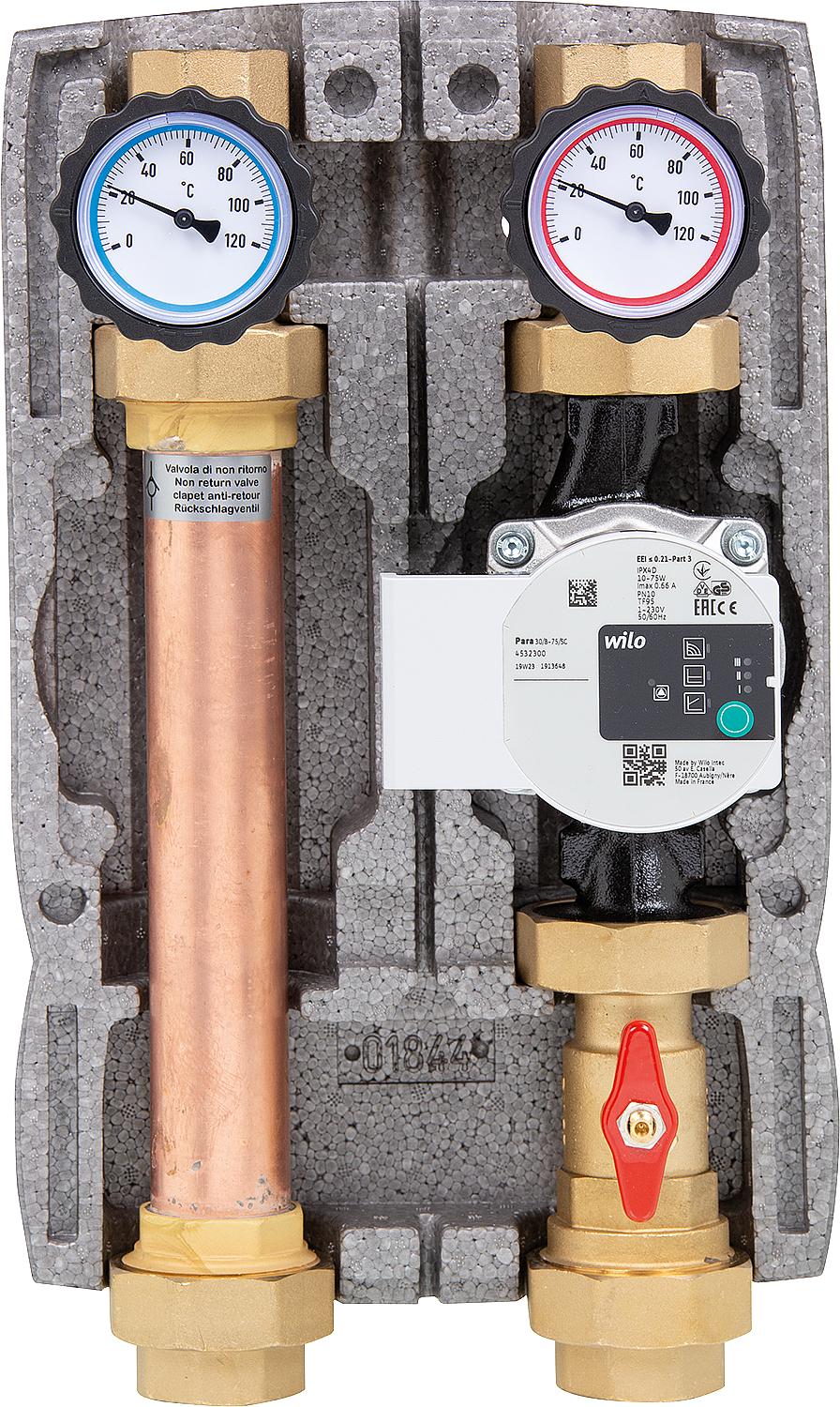

Type 32-1, unmixed
• up to 81 kW
• Flow rate: max. 3500 l/h
• Kvs: 21.0
Supply line: 1x toggle ball valve
• Temperature: max. 110°C
• PN 10 bar
• Dimensions with insulation (H x W x D): 400 x 250 x 170 mm
• Axle spacing: 125 mm
• with EPP insulation
Lead time:
1x Flow pump flange ball valve with thermometer handwheel (thermometer ring red)
2x union nut and seal
1x screw connection DN32 (1¼")
Return:
1x Return pump flange ball valve with thermometer handwheel (thermometer ring blue)
1x screw connection DN32 (1¼")
1x gravity brake
The flow and return lines are interchangeable.

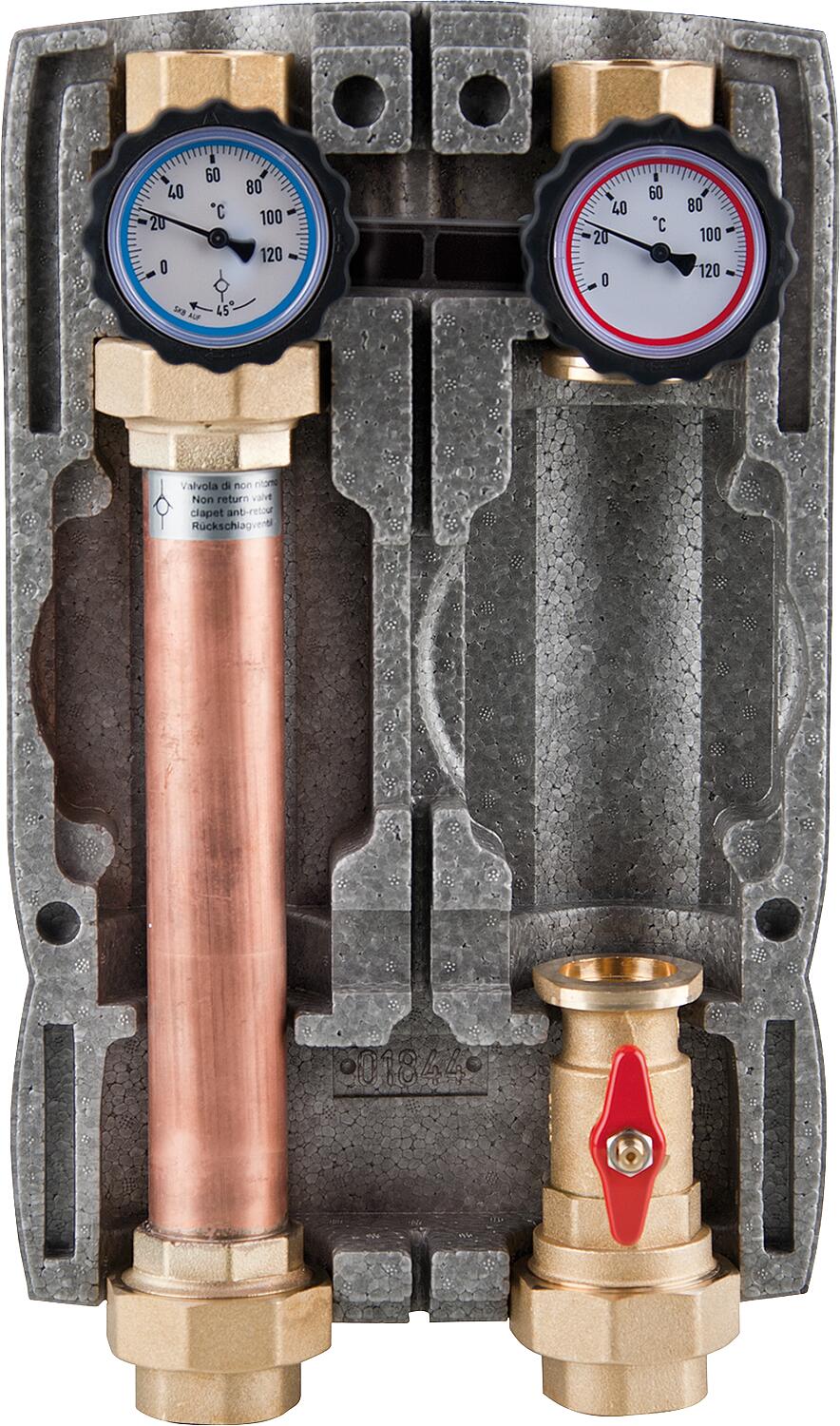

| Version | without pump |
|---|---|
| Unit price | CHF/set |
