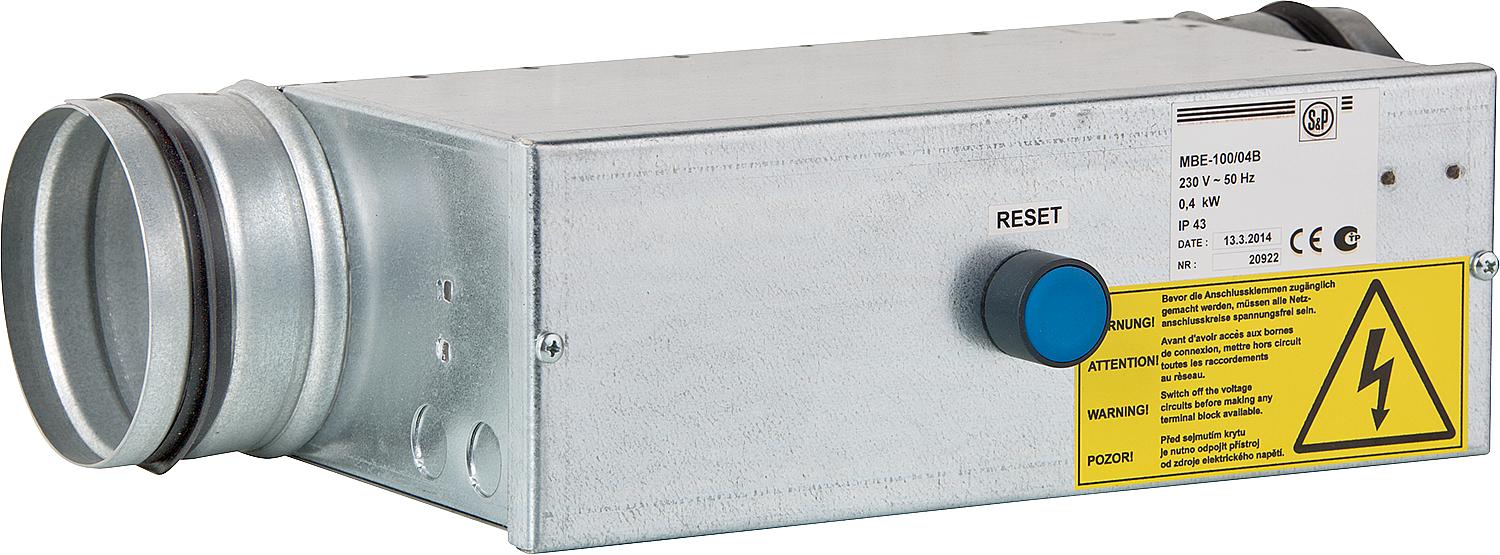

Elektro-Heizregister Typ MBE-250/60T Zweiphasen Wechselstrom 400V/50 HZ

• Housing made of galvanized sheet steel • Stainless steel heating element (230 V - 3 W/cm2) • Maximum operating temperature +40°C • Protection class IP 43 • Models MBE-100 to MBE-160 for single-phase AC 230 V, 50 Hz • Models MBE-200 to MBE-315 for two-phase alternating current 400 V, 50 Hz Caution: MBE heating coils must be installed at a minimum distance of 1 m downstream of the fan. The air velocity in the heating coil must be at least 1.5 m/s. Technical data Type Nominal diameter (mm) Heating element power (kW) Current consumption (A) Volume flow (min. m3/h) Single-phase alternating current 230 V/50 Hz MBE-100/04B 100 0.4 1.7 50 MBE-125/12B 125 1.2 5.2 70 MBE-160/21B 160 2.1 9.1 110 Two-phase alternating current 400 V/50 Hz MBE-200/50T 200 5.0 13.2 170 MBE-250/60T 250 6.0 16.0 270 MBE-315/60T 315 6.0 16.0 420

Brand	S&P
Manufacturer part number	5211800700
Unit price	CHF/piece
Nominal diameter [mm]	100
Type	MBE-100/04B
Volume flow rate [min. m³/h]	50
