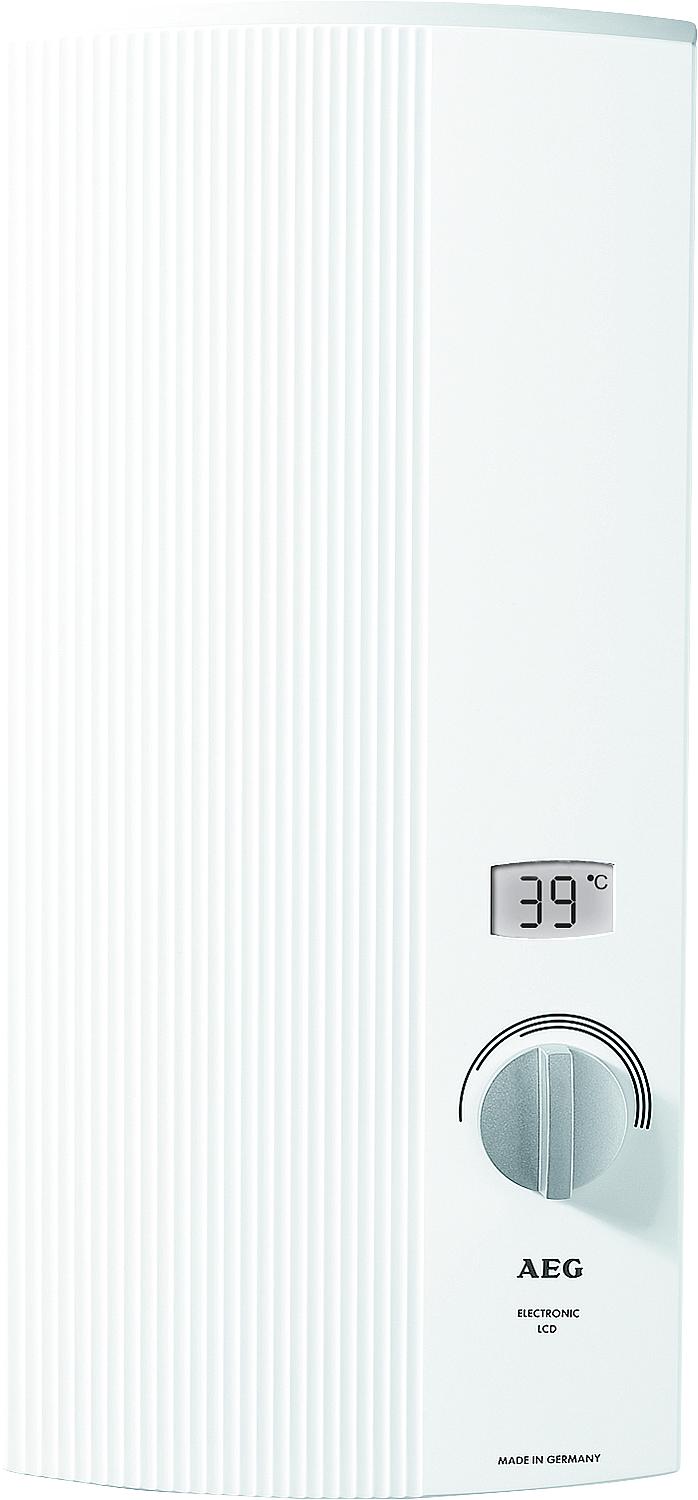

Electronic instantaneous water heater DDLE LCD 18/21/24 switchable

• For one or more sampling points

• Electronic instantaneous water heater with good temperature comfort
• Largely constant outlet temperatures despite pressure and inlet temperature fluctuations.
• Electronic air bubble detection

• Suitable for solar applications with inlet temperatures up to 60 °C
• Precise temperature selection thanks to an easily readable display
• LCD display
• Fast control electronics for highest performance

Shower comfort

• Integrated diagnostic system
• Switchable power at 18/21/24

(at 18 kW fuse rating min. 32 A)

Technical data

Connected load [kW]: 18/21/24

Energy efficiency class: A*)

Voltage [V]: 3/PE~400 50 Hz

Rated current [A]: 29/31/35

• Temperature selection [°C]: approx. 3060

Mixing water flow rate [l/min]: 9.9/11.6/13.2

Max. inlet temperature [°C]: 60

Specific resistance of water [Ω cm]: >900

Weight with water filling [kg]: 4.2

Dimensions (W x H x D) [mm]: 226 x 485 x 93

Moisture protection level according to VDE IP 25
