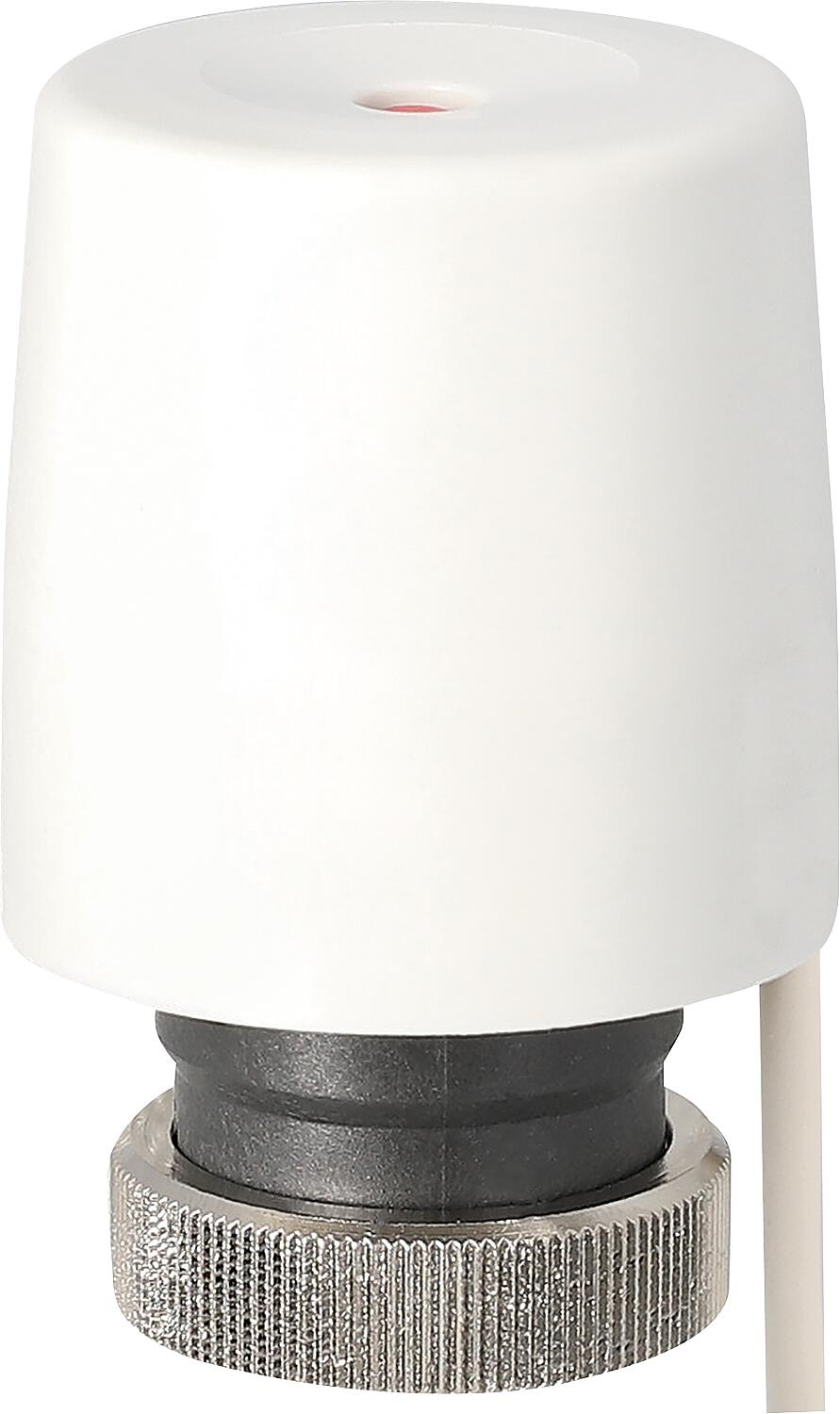

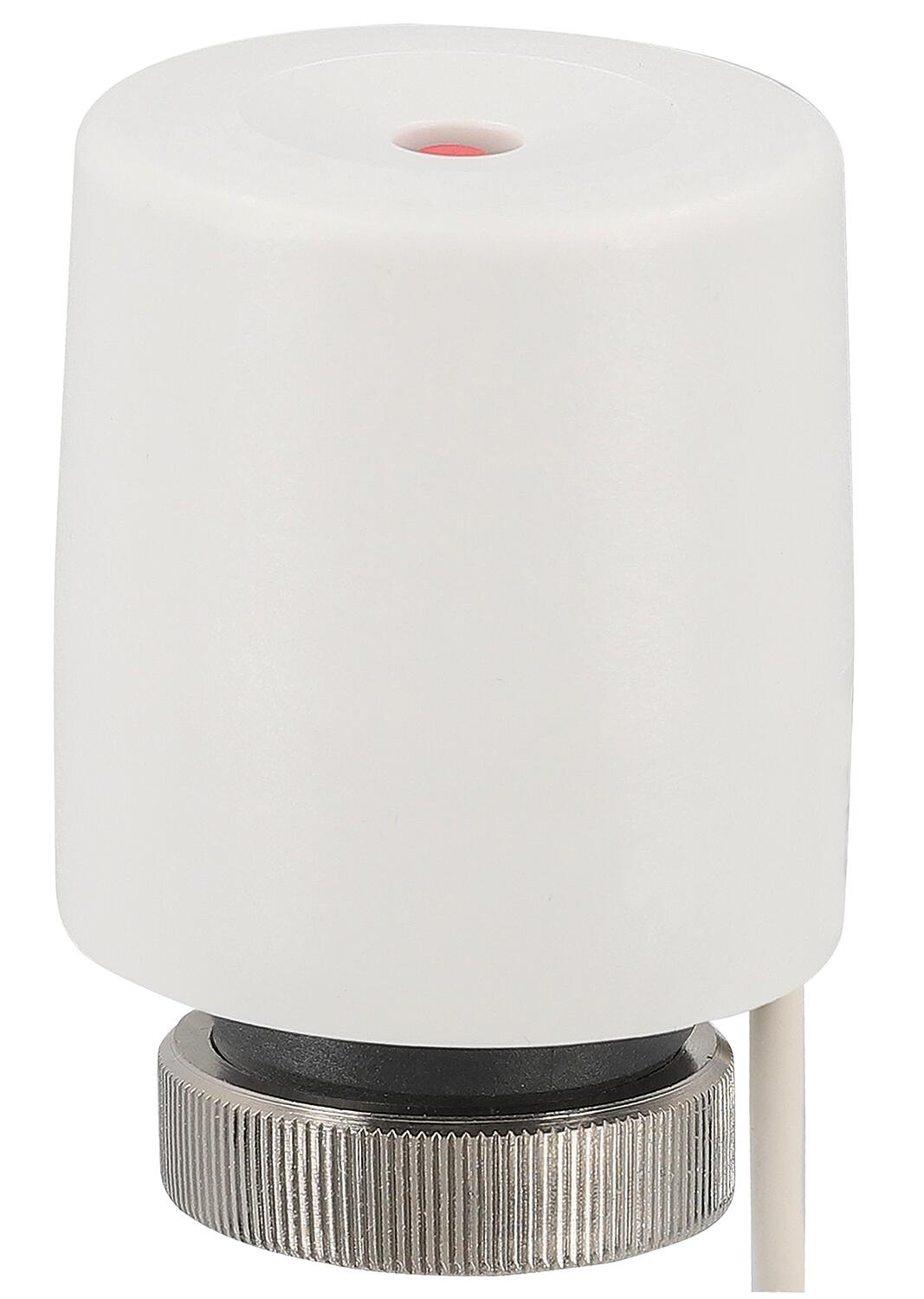

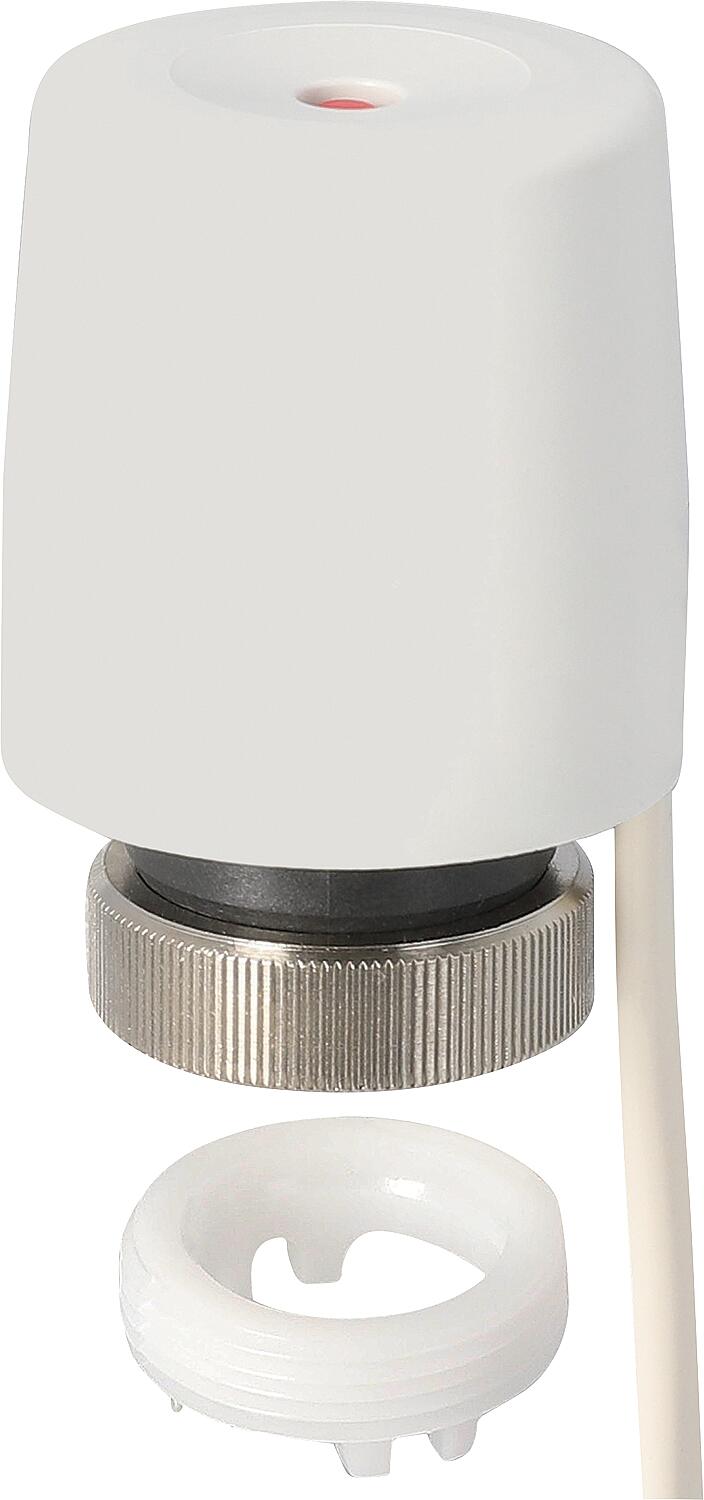

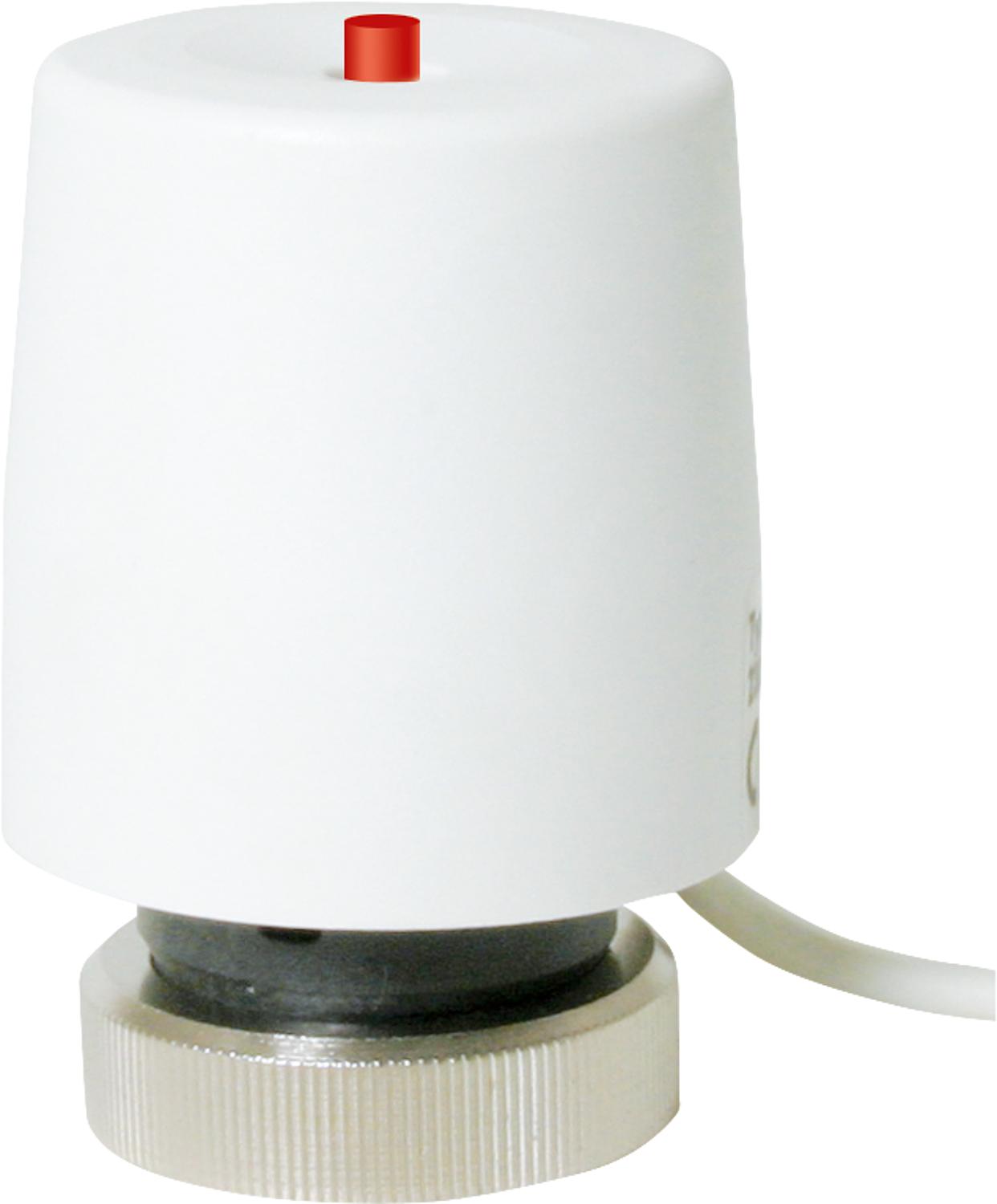

- With position indicator at the top
- Normally closed (NC)
- Protection class: IP 42
- Power consumption: 2.5–3 W
- Maximum inrush current: 0.3 A / 0.5 A
- Opening/closing time: approx. 3-4 minutes.
- Nominal closing force: 90 N
- Connection cable: 1 m / 2x 0.5 mm²
- Protection rating (vertical): IP 43
- Overvoltage protection: for 230 V~ version
- Dimensions (W x H): 42.5 x 60 mm
| Suitable for valve types | Dumser, Heimeier, SBK, SKV, Strawa |
|---|---|
| Unit price | CHF/piece |
| Nut | M30 x 1.5 |
| Voltage | 230 V AC |
