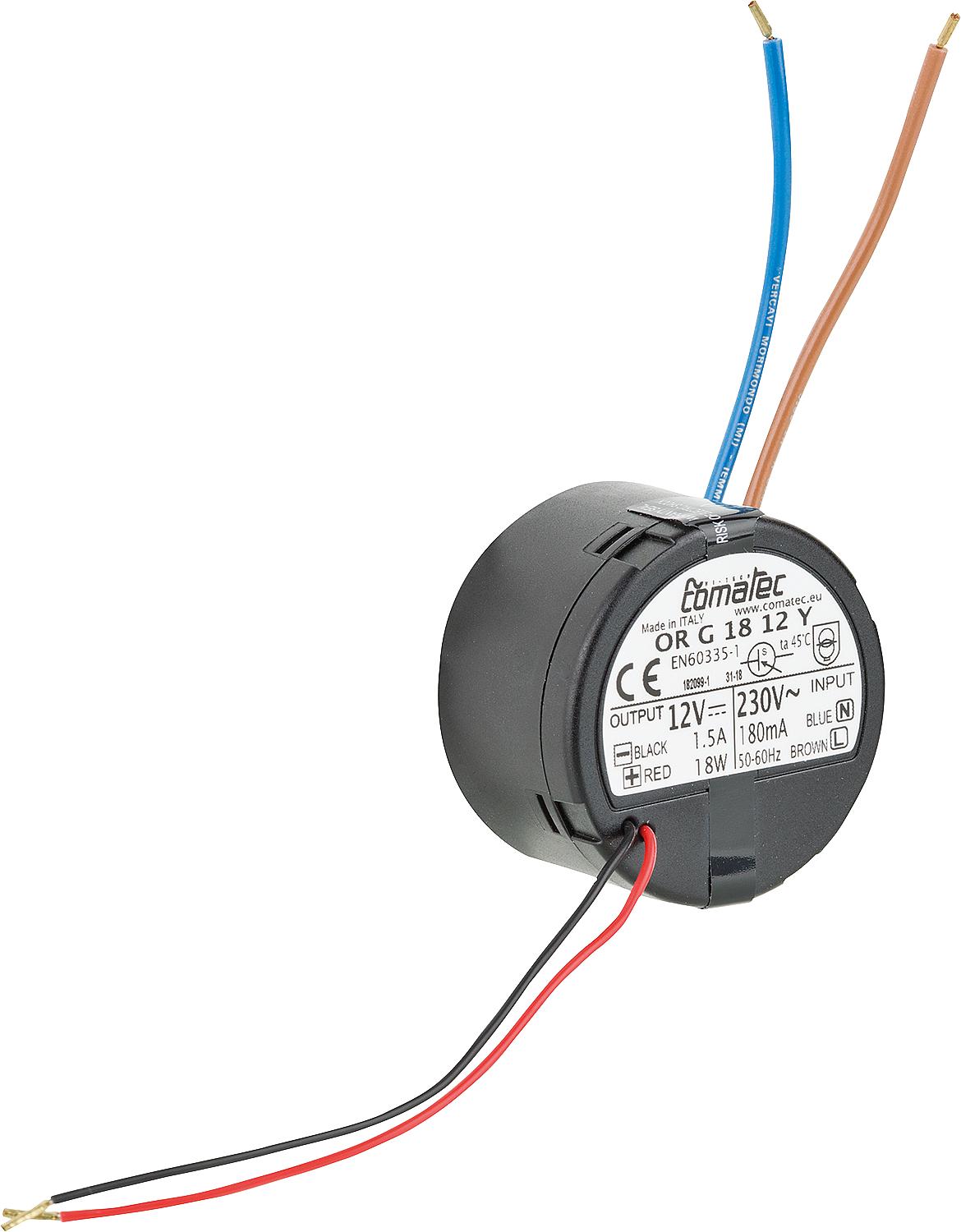

EventAir expansion power supply for up to 6 fan units, 230V AC to 12V DC, 18W

• Compact flush-mounted power supply for expanding the maximum number of fan units that can be connected to the wired EventAir 2.0 control system (Order No.: 98 008 19)
• Connection options EventAir 2.0/EventAir 2.0 SE (EventwinAir) per controller:
- Without expansion power supply: max. 6/6 (4) pieces
- With 1 expansion power supply: max. 10/12 (4) pieces
- With 2 expansion power supplies: max. 10/18 (4) pieces
- Suitable for installation in a deep flush-mounted box directly behind the control unit
- With the EventAir 2.0, the maximum number is limited to 10 per controller; if more than 10 EventAir 2.0 units are to be installed, a second controller (98 008 19) must be installed.

Technical data:
• Input voltage: 230 V/AC
• Output voltage: 12 V/DC
• Power consumption: 18 W
• Dimensions (ø xh): 54 x 32.5 mm
