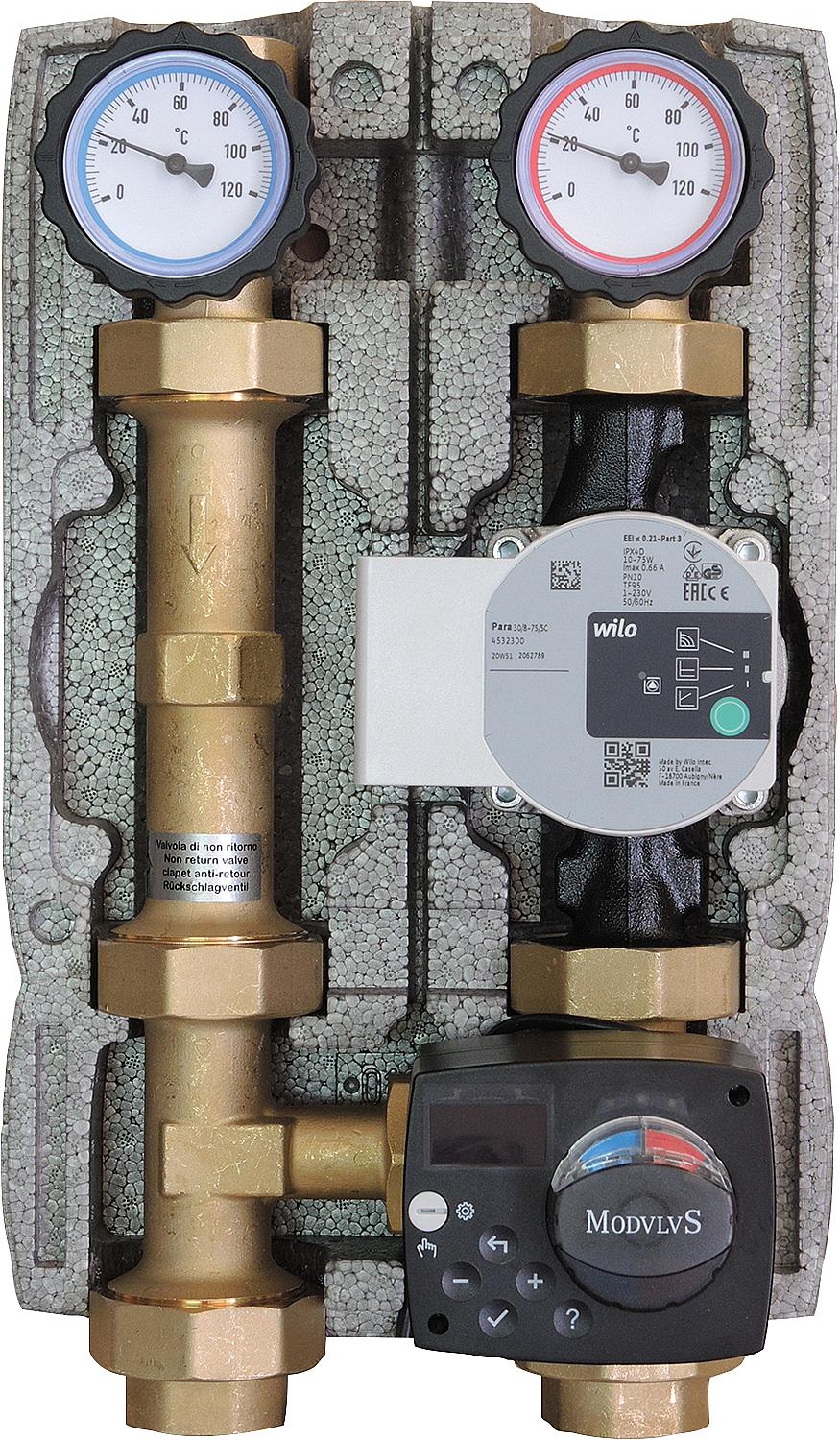

- With actuator + fixed-value control ACC30, adjustment range: 20° to 80°C
- For maintaining high return flow rates in solid fuel boiler systems
Lead time:
- 1x Flow pump flange ball valve with thermometer handwheel (thermometer ring red)
2x union nut and seal
1x screw connection
Return:
- 1x Return pump flange ball valve with thermometer handwheel (blue thermometer ring)
1x gravity brake
1x screw connection
- 1x three-way mixing valve with servomotor
Technical data:
- Connection: DN32 (1 1/4") female thread
- With Wilo Para 30/7 SC pump
- Boiler output: max. 81 kW
- Temperature: max. 110°C
- Flow rate: max. 3500 l/h
- Axle dimension: 125 mm
- Insulation: EPP
- Dimensions with insulation (H x W x D): 250 x 400 x 170 mm
- KVS value: 13.0
| Unit price | CHF/piece |
|---|
