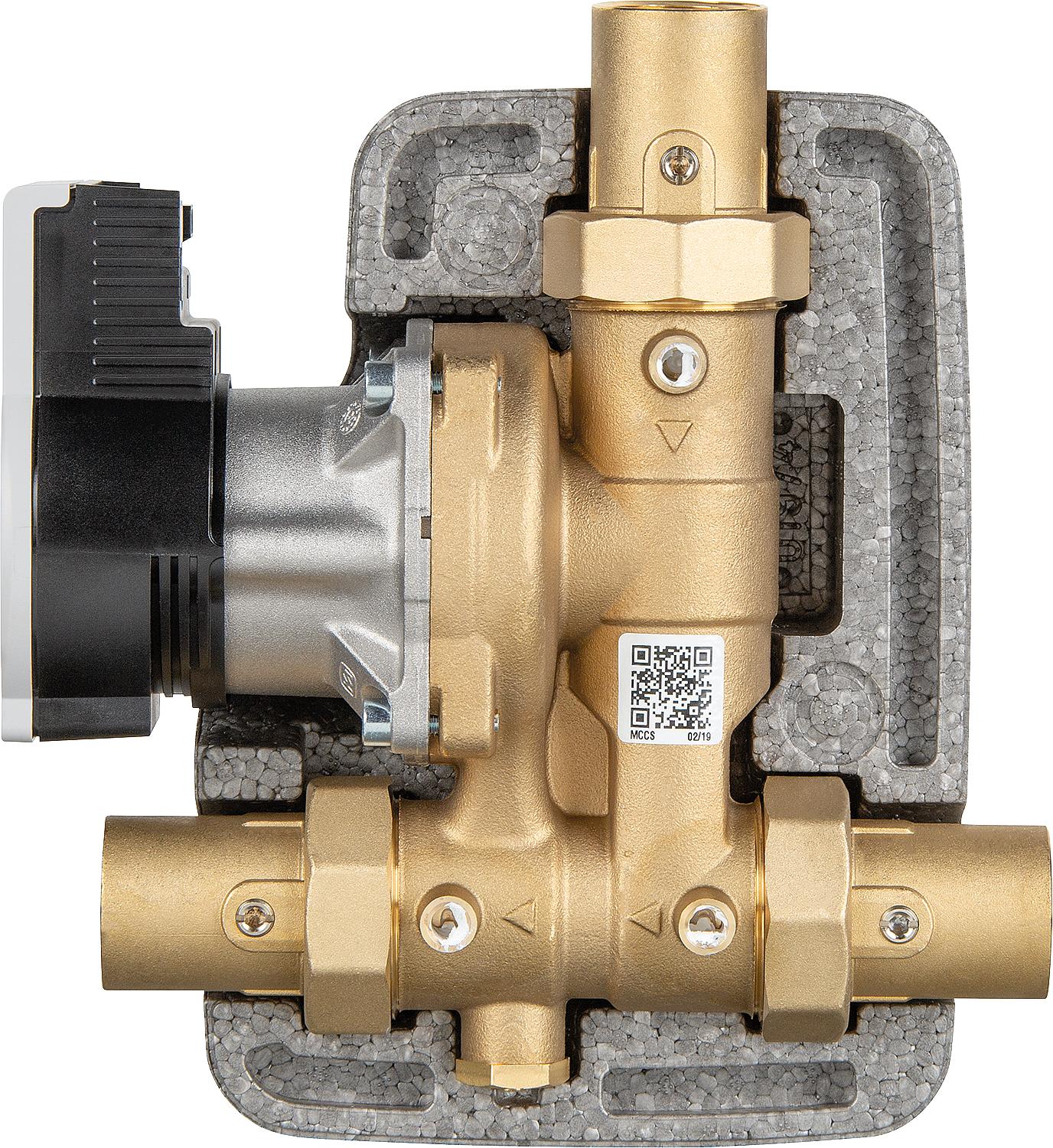

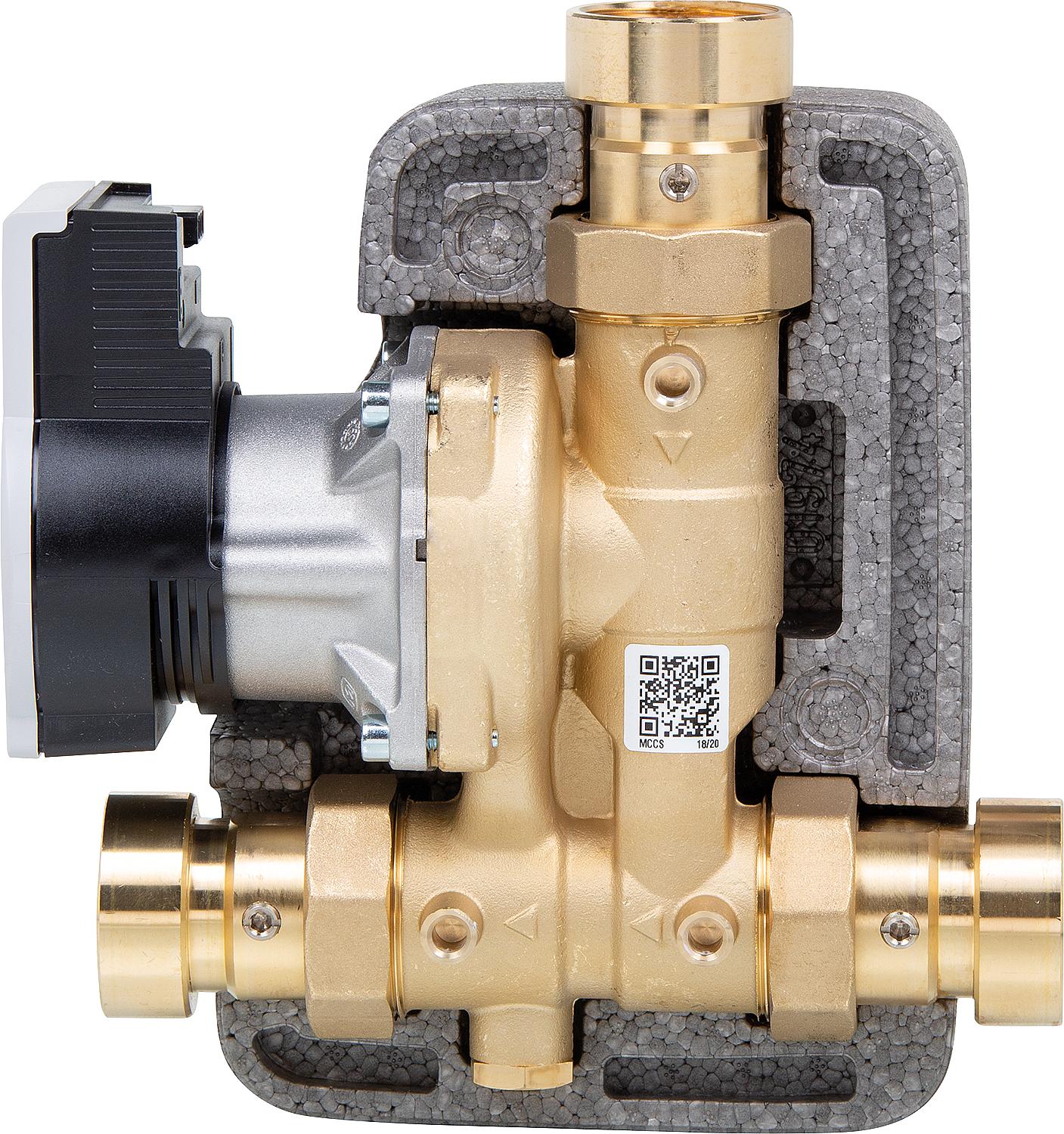

Solid fuel charging set Easyflow MCCS, DN25(1"), 45°C, Wilo Para 25/8 SC

• Fully pre-assembled unit for maintaining a high return temperature in solid fuel boiler systems. The constant temperature is maintained via an integrated thermostatic valve.
• For external control
• Gravity operation in case of power or pump failure
• Integrated gravity brake that can be switched off from the outside
• Installation possible on the left or right
• Lockable, including pump, thermometer and thermal insulation
• Wilo Para STG/8 circulation pump

Technical data:

• Housing material: Brass
• Insulation material: EPP
• Maximum operating temperature: 100°C
• Maximum operating pressure: 10 bar
• Usable up to 80 kW (at ∆t 30K)
