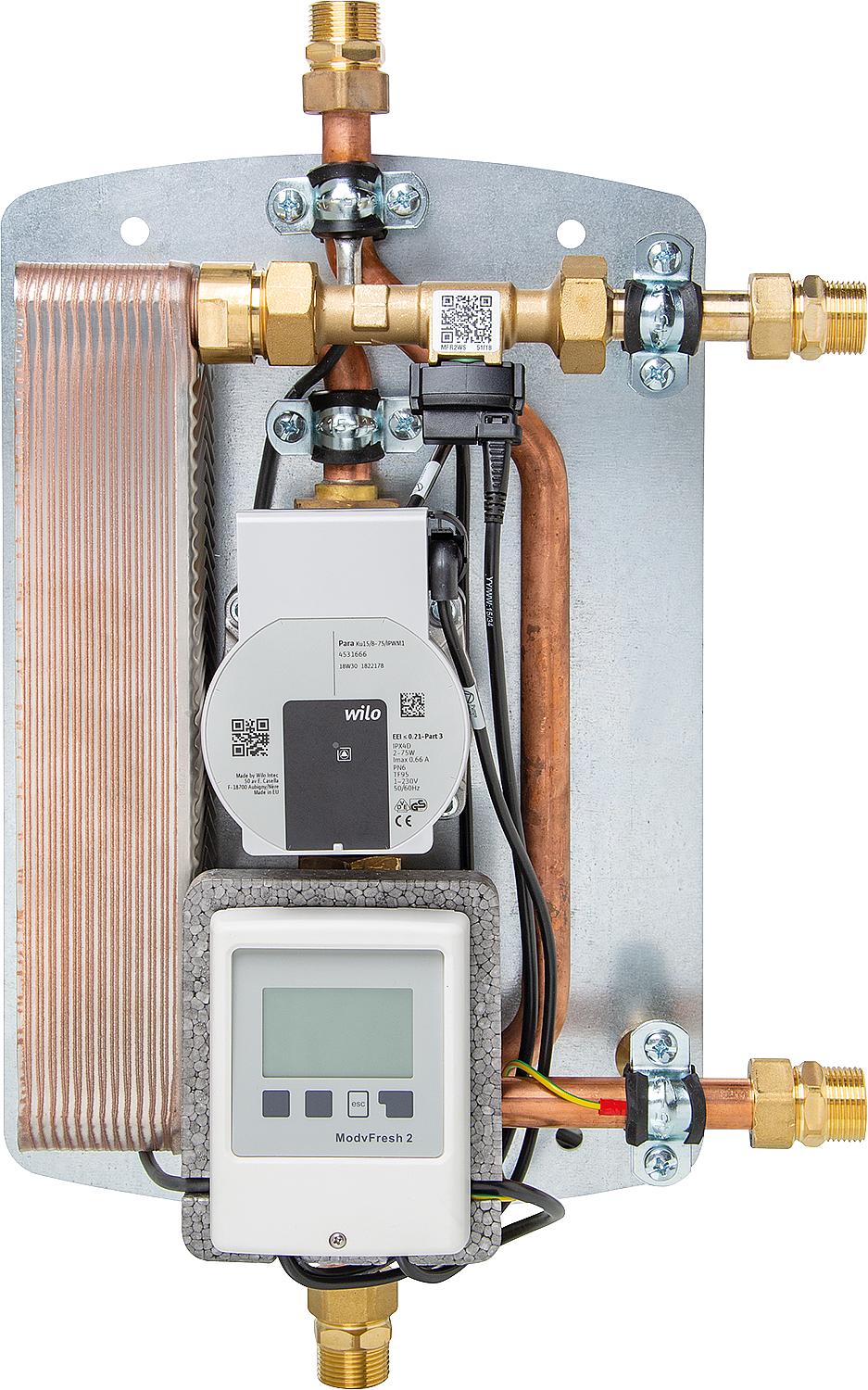

Easyflow Fresh 2 HE fresh water station, 50 KW, flow rate 2-20 l/min.

• For hygienic hot water preparation using the instantaneous water heater principle from buffer storage tanks
• Fully pre-assembled, insulated, factory tested and ready to plug in (Schuko plug)
• With speed-controlled high-efficiency pump
• Electronic control for speed regulation of the primary pump from 10 to 100%, ensuring a constant dispensing temperature at all times (e.g. 45°C)
• The large surface area of ​​the plate heat exchanger allows for a low return temperature, which is advantageous for operation in conjunction with a solar thermal system or heat pump.
• The heat exchanger is easily replaceable for cleaning and maintenance.
• A metal plate on the back simplifies mounting on the wall or buffer tank.
• Scope of delivery does not include ball valve connection set

Technical data:

• Material: Plate heat exchanger stainless steel AISI 316, insulation EPP
• Operating temperature: 2 to 95°C
• Hot water setting range: 30 to 70°C
• Maximum operating pressure: 6 bar
• Connection size: DN 20 (3/4") male thread
• Voltage: 230 V/AC, 5060 Hz
• Cable length: 1 m
• Dimensions (H x W x D): 417 x 417 x 137 mm (including insulation)

*Flow rate at buffer tank supply 60°C, cold water inlet 10°C, hot water temperature 45°C
