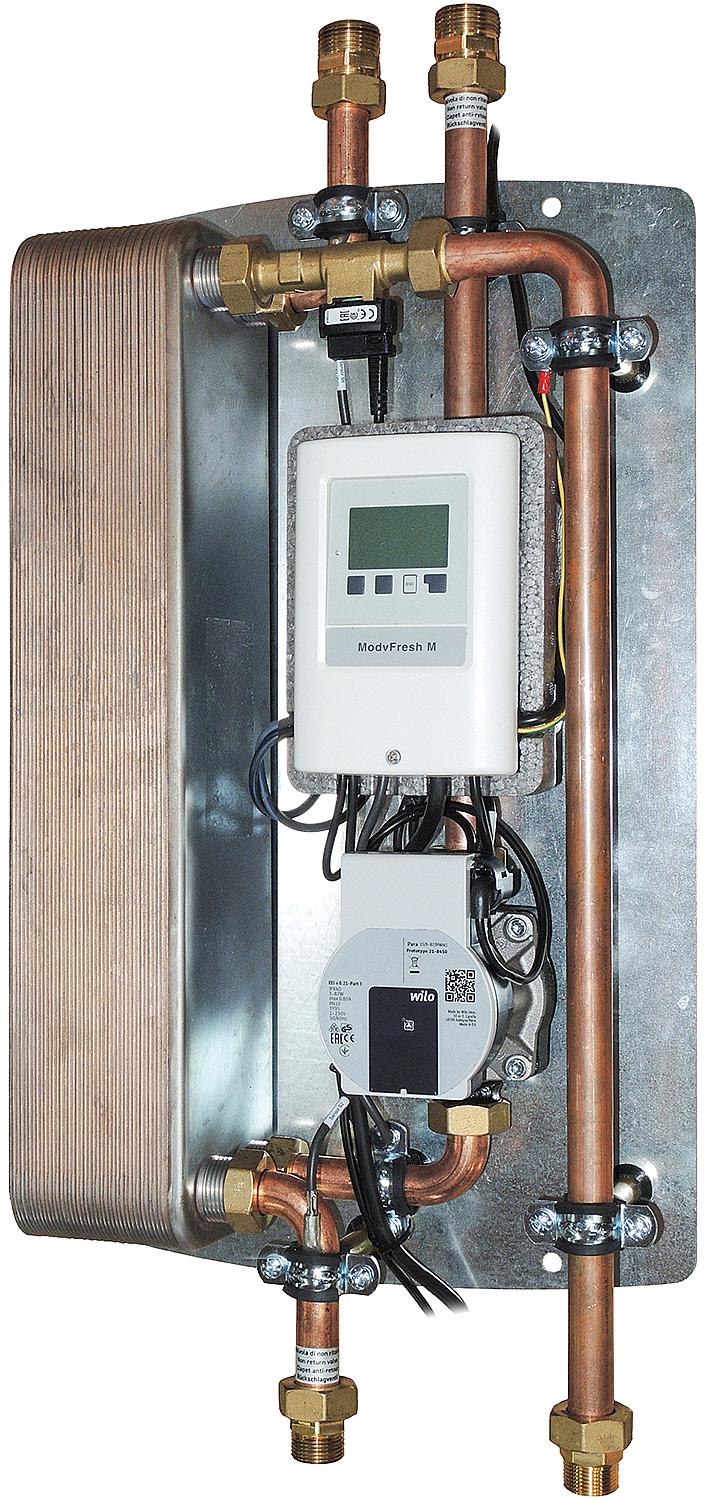

Fresh water station Easyflow Fresh 2 PDC, 40 L/min.

• With enlarged heat exchanger, ideal for heat pump systems
• The heat exchanger is easily replaceable for cleaning and maintenance work.
• Fully pre-assembled, insulated, factory-tested and ready to plug in (Schuko plug)
• Electronic control
• A metal plate on the back simplifies mounting on the wall or buffer tank.
• Scope of delivery does not include ball valve connection set

Technical data:
• Operating voltage: 230 V/AC
• Plate heat exchanger material: Stainless steel AISI 316, insulation EPP
• Operating temperature: 2°C - 95°C
• Maximum operating pressure: 10 bar
• Hot water temperature setting range: 30°C - 70°C
• Connection size: DN 20 (3/4") male thread water / DN 25 (1") heating
• Cable length: 1.0 m
• Dimensions (H x W x D): 610 x 373 x 150 mm (including insulation)
• Flow rate*: 2-40 l/min.

*Flow rate 40l with buffer tank supply temperature 60°C, cold water inlet temperature 10°C, hot water temperature 55°C
*Flow rate 40l with buffer tank supply temperature 50°C, cold water inlet 10°C, hot water temperature 45°C
