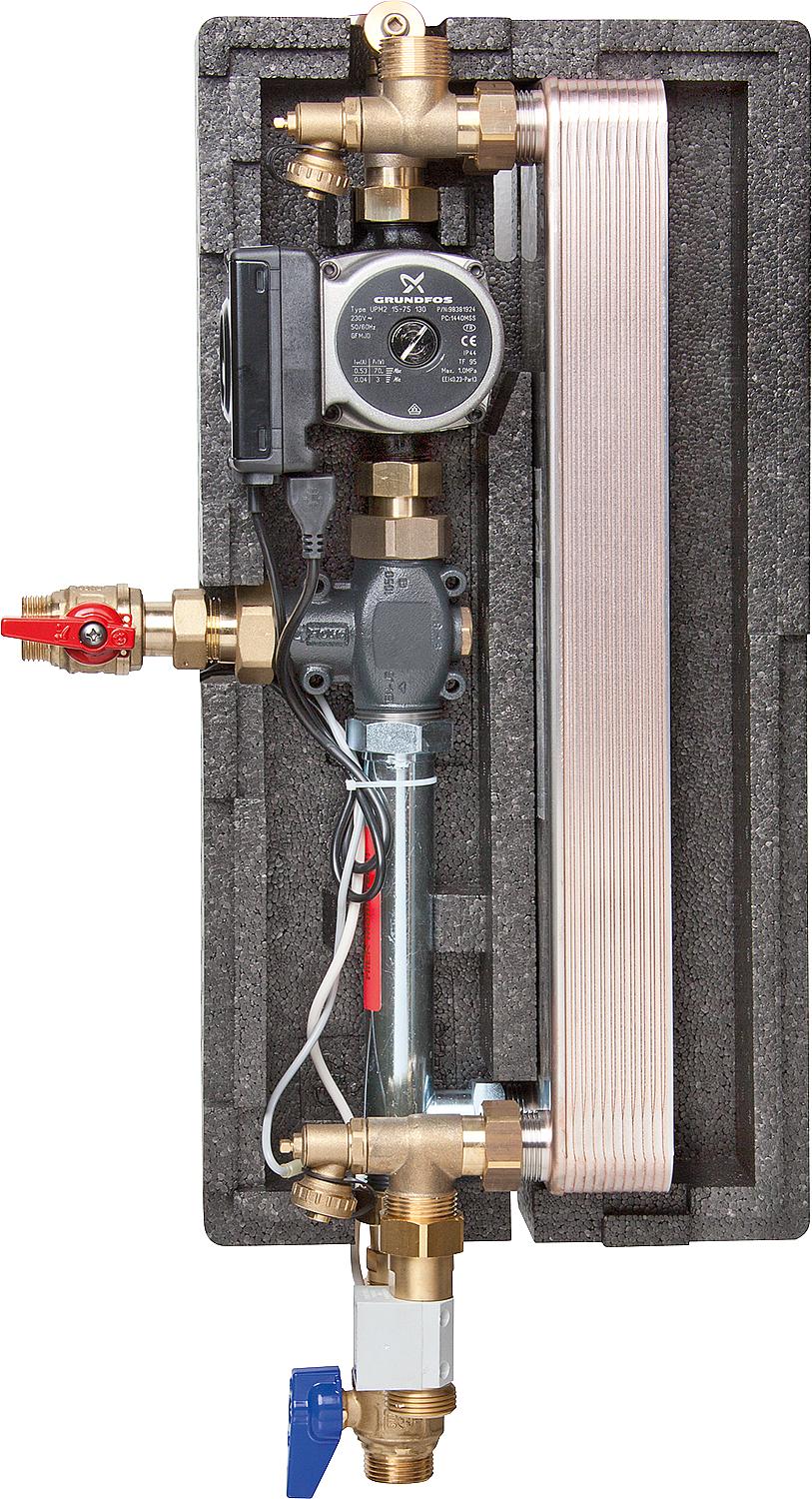

• For hygienic hot water preparation using the instantaneous water heater principle from buffer storage tanks
• Plug-and-play (Schuko plug), insulated compact unit with high-efficiency pump
• Thermally long plate heat exchanger for ideal heat transfer
• Automatic speed control of the pump without additional control via the built-in sensor in the buffer return line
• Simple cascading for higher throughput
• Scope of delivery includes shut-off valves in the buffer circuit
Technical data:
• Plate exchanger material: Stainless steel 1.4401
• Insulation material: EPP
• Maximum operating temperature: 90°C
• Maximum operating pressure on the drinking water side: 6 bar
• Operating voltage: 230V/AC
with flow temperature limitation
• Thermostatic valve in the flow line: 60°C
• Circulation pump: UPM2 15-75
• Connection size: DN25 (1") male thread
• Dimensions (H x W x D) with insulation: 580 x 280 x 200 mm
Design: Plate heat exchanger, copper solder
| Power [kW] | 63* |
|---|---|
| Unit price | CHF/piece |
| Flow rate [l/min] | 25* |
| Flow rate [l/min] | 25* |
