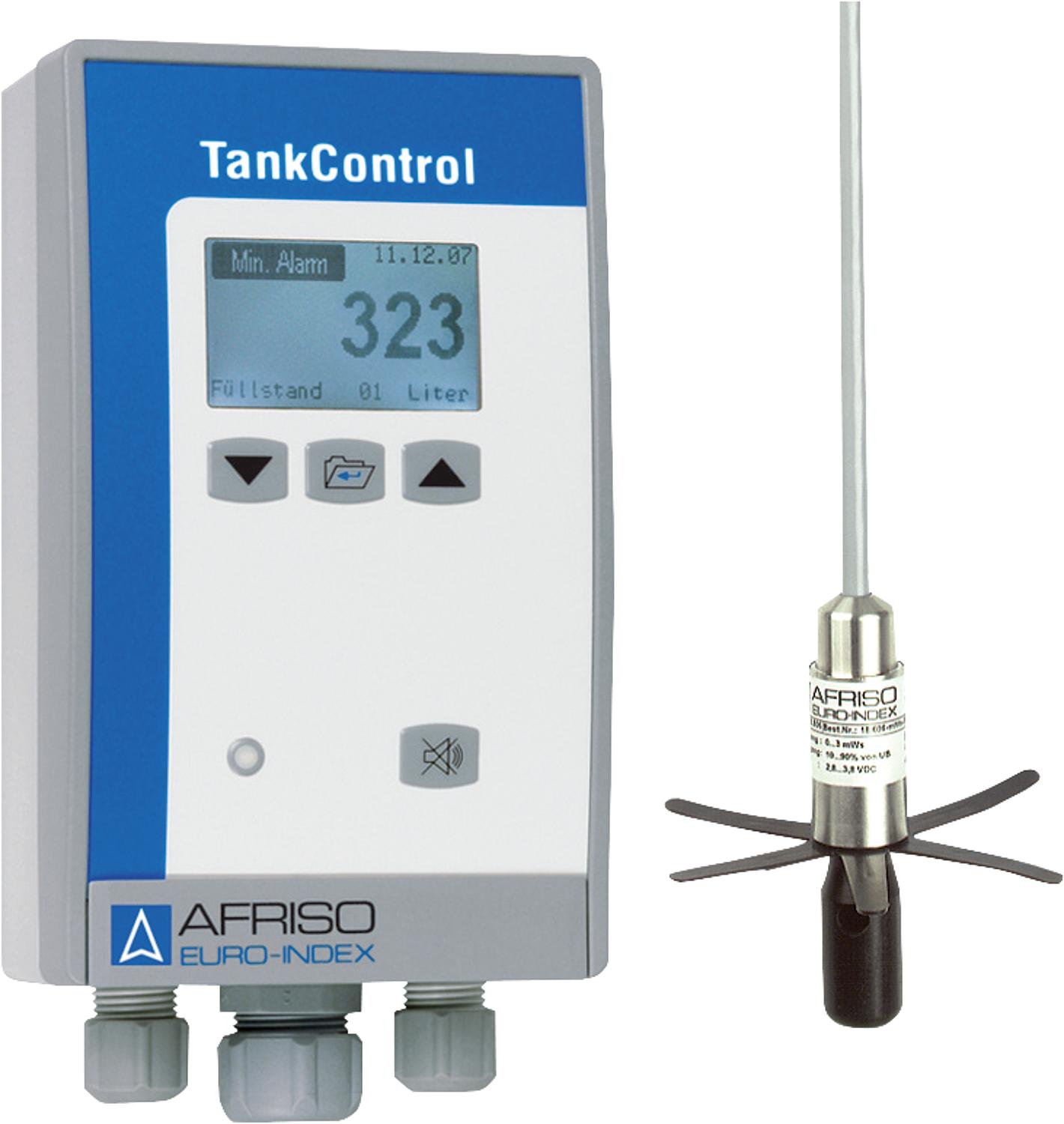

TankControl 10 level gauge (replaces 01)

• For heating oil EL, L or diesel fuel.
• Universal application for containers with a filling height of 1.0 to max. 4 m
• Graphic display with backlight
• Protection class IP54
• Measurement accuracy: 1.5%
• Range determination and reserve notification
• Remote measurement up to 15 m
• Easy operation thanks to menu-driven device settings
• Includes all mounting accessories

Features:

• Total volume calculation
• Graphical evaluation of consumption values ​​for the last 1, 3 or 5 years
• Range calculation
• Alarm function
• Wall-mounted enclosure made of impact-resistant plastic (ABS)
• Dimensions (W x H x D): 100 x 188 x 65 mm
• Power supply: AC 230 V and lithium battery for data backup
• Switching output:
• Relay contact: 2 potential-free changeover contacts
• Contact load: 2 A
• Scope of delivery:
• Evaluation device with digital display and graphic display
• Diving probe with 6 m diving cable
• Screw fitting set DN 25 (1") x DN 40 (1 1/2") x DN 50 (2")
• Mounting kit for extraction flange on plastic battery tanks
• Damp-proof junction box

• Graphical representation of consumption over the last 1, 3 or 5 years
