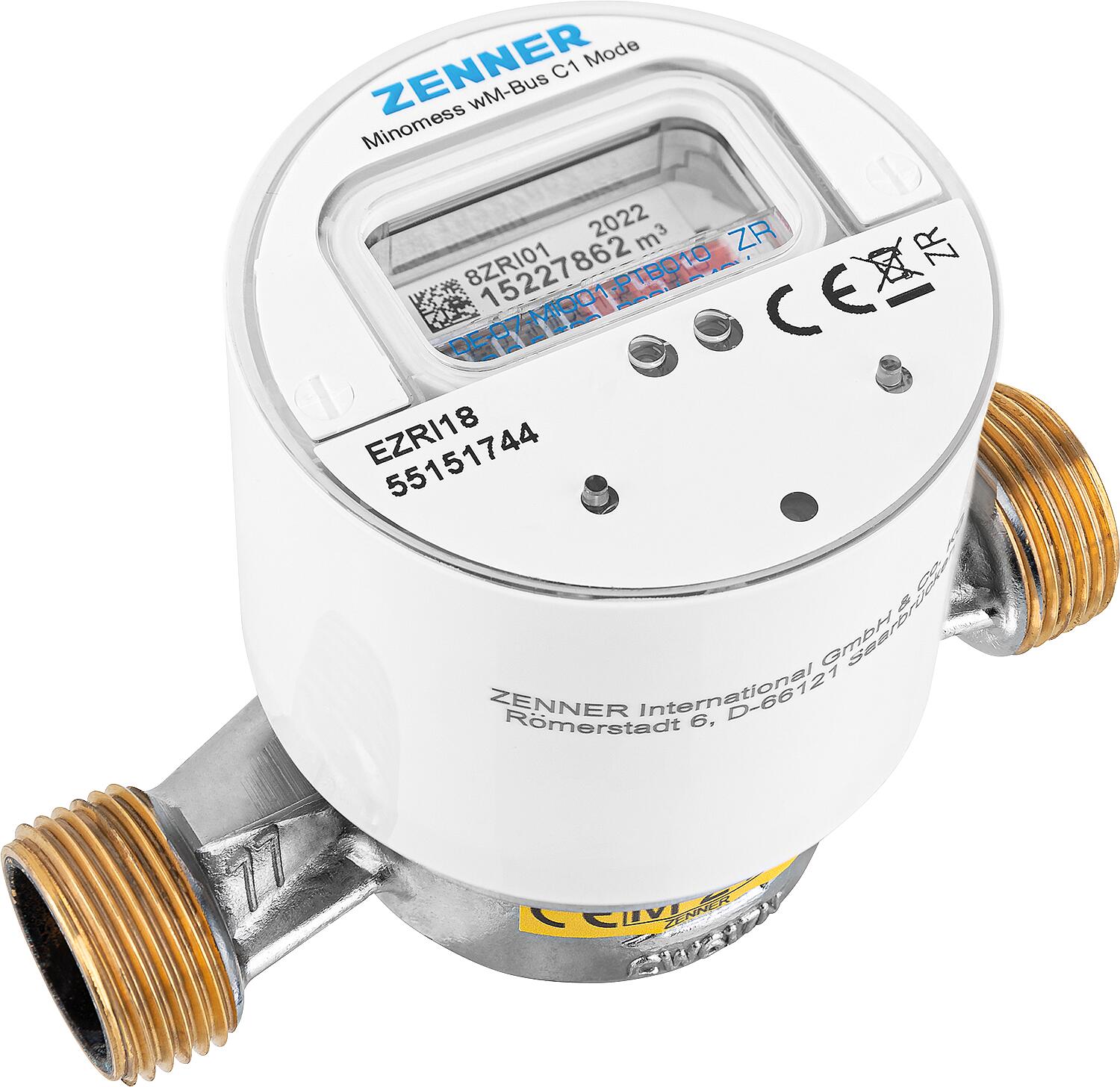

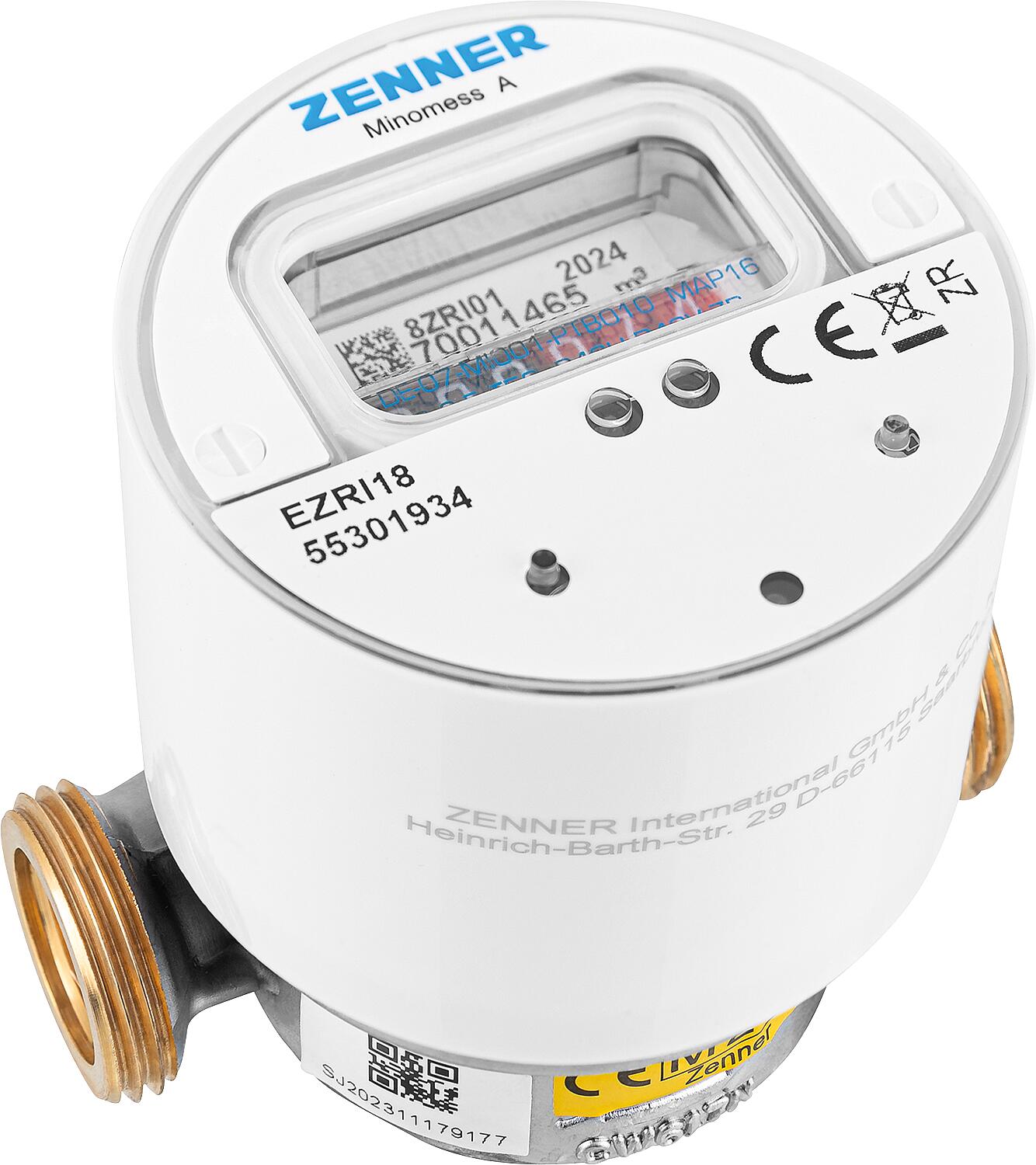

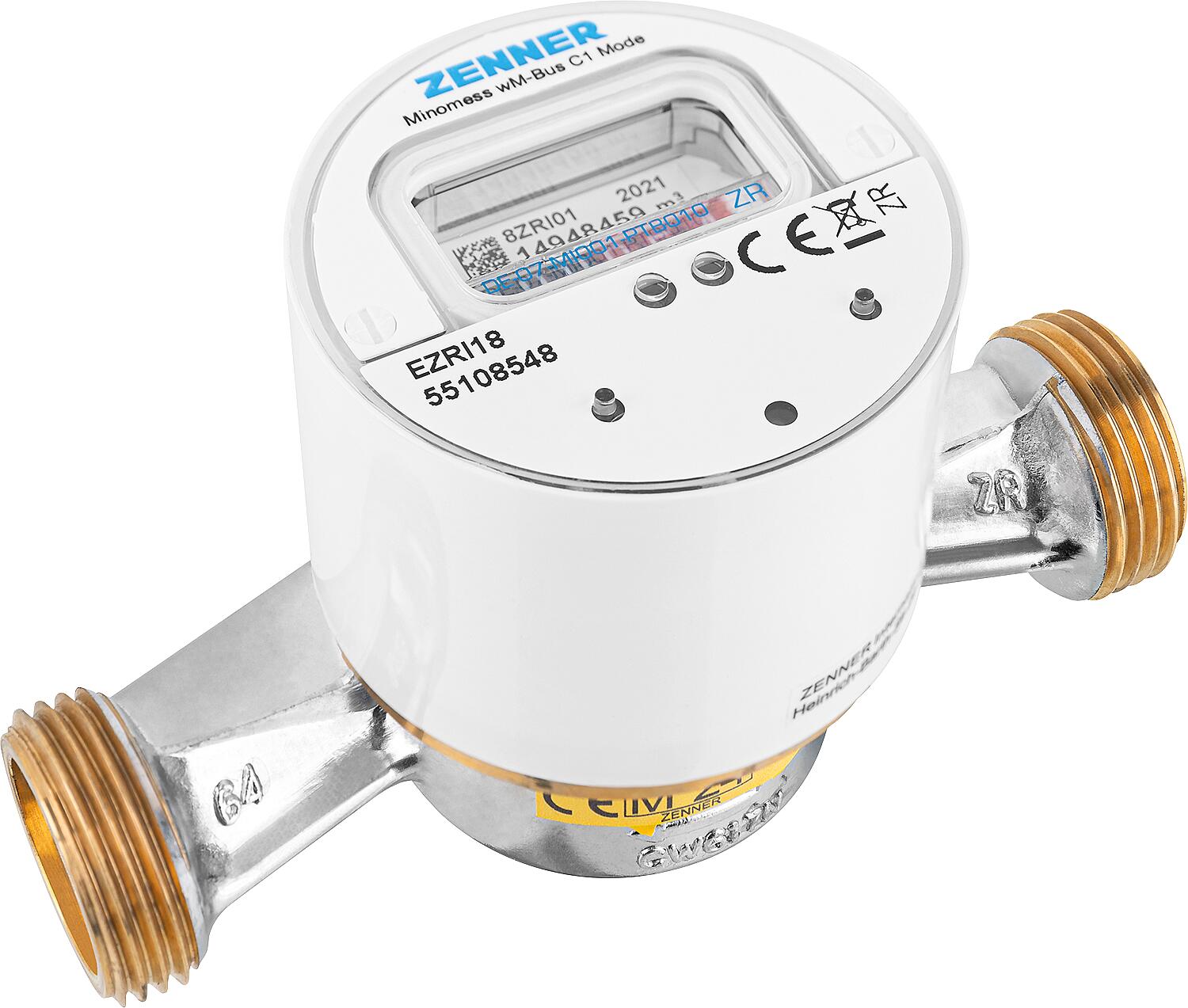

Wireless surface-mounted cold water meter Zenner, Minomess, 30°C Q3 2.5, BL=80mm-DN15(1/2") R40HV 325 RK, wireless M-Bus

Wireless surface-mounted cold water meter Zenner, Minomess, 30°C Q3 2.5, BL=80mm-DN15(1/2") R40HV 325 RK, wireless M-Bus

Bewertungen

| Eine Rezension schreiben

CHF 46.10

CHF 46.10

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Zenner

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Surface-mounted water meters for legally compliant consumption billing in accordance with the German Heating Costs Ordinance (HeizkV) for integration into wireless MBus reading systems
With integrated radio module: wireless MBus (868 MHz)
7-roll counter
Display rotatable by 360°
Installation position: horizontal and vertical
Including calibration and conformity fee

Technical data:

Nominal flow rate: Q3 = 2.5 m³/h (Qn 1.5 m³/h)
Maximum operating pressure: 16 bar
Cold water temperature range: 0.1–30°C
Hot water temperature range: 0.1–90°C
Protection class: IP67
Power supply: 3V battery (A-cell) 10 years
Material: brass (UBA compliant)

Installation length [mm]	80
Brand	Zenner
Connection	DN 20 (3/4")
Manufacturer part number	178742
Unit price	CHF/piece
Nominal diameter	DN 15
Flow rate [m³/h]	Q3 = 2.5 (Qn = 1.5)
EAN	4001471793695
