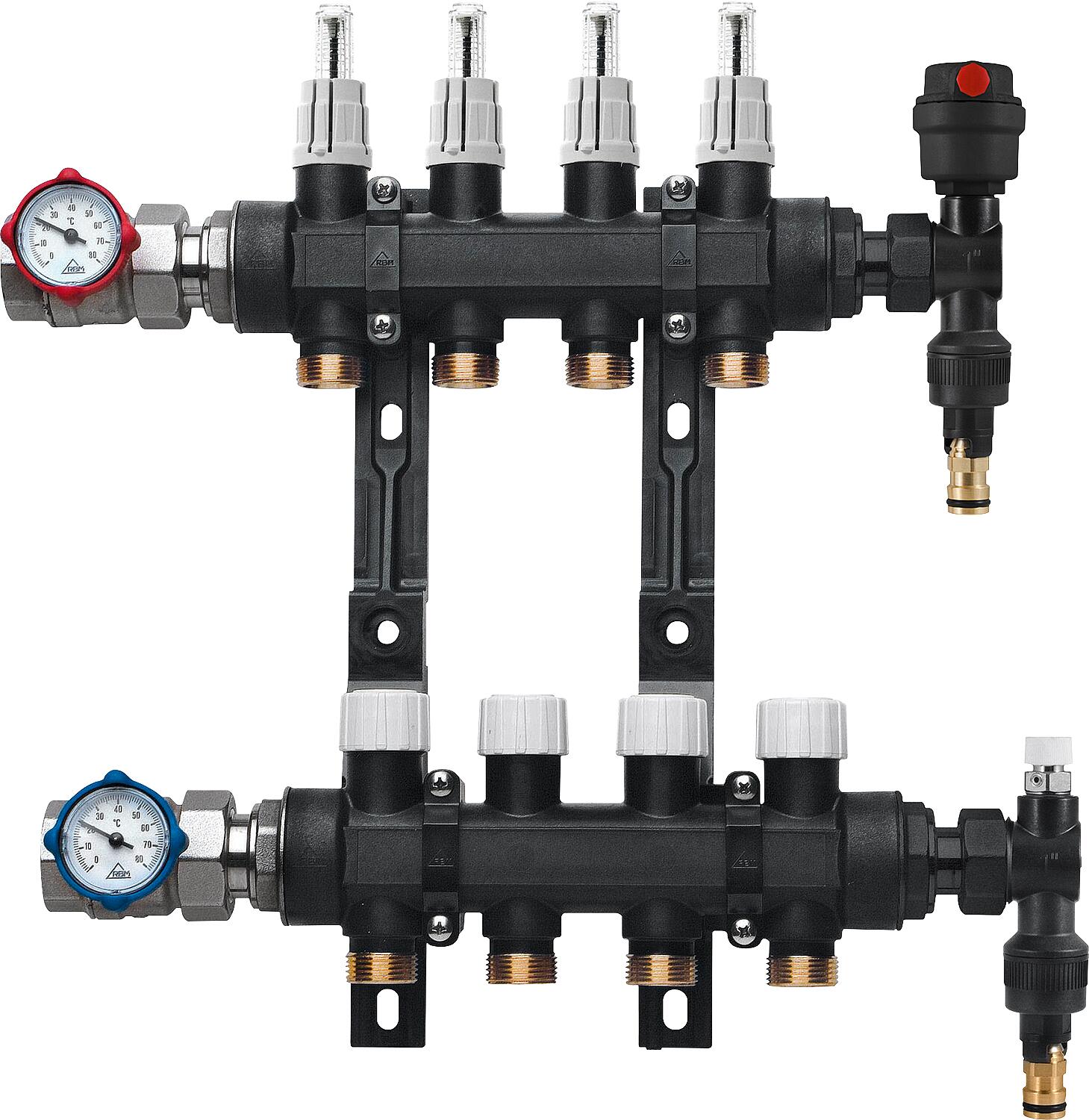

Underfloor heating manifold DN25 (1") plastic, 3 heating circuits

• Made from special polymer plastic
• Supply manifold with flow meters and integrated flow control valves
• Return manifold with integrated valve inserts, retrofittable with electrothermal actuators
• Thermometer ball valves on the flow and return manifolds
• Includes connection group, wall bracket, automatic and manual venting/draining.

Technical data:

• Connection: DN 25 (1") internal thread
• Outlets: DN 20 (3/4") AG
• Distance between outlets: 50 mm
• Valves: M30 x 1.5 (Heimeier compatible)
• Operating temperature: +5°C – 80°C
• Flow meter: 1 – 4 l/min
