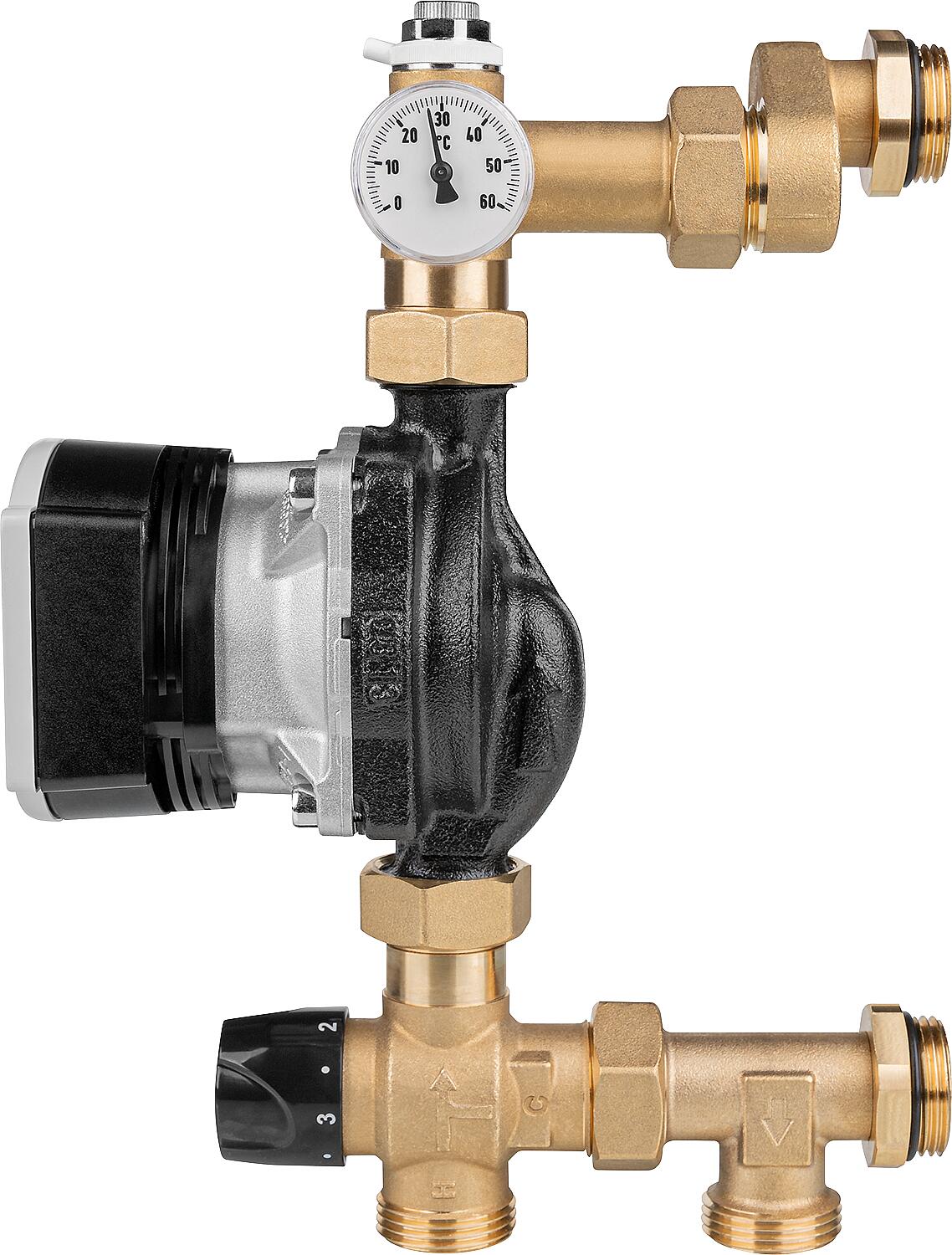

- For installation in central heating systems for flow temperature control of underfloor heating systems
- Can be connected to all Evenes heating circuit manifolds
- vertical connection
Technical data:
- Material: Brass
- Maximum operating pressure: 10 bar
- Maximum operating temperature primary: 110°C
- Primary connection: DN 25 (1") male thread, flat sealing
- Secondary return connection: DN 25 (1") AG self-sealing
- Secondary supply connection: 30 mm rotatable S-connection DN 25 (1") male thread, self-sealing
- Temperature range of fixed-value controller: 20°C to 45°C
- Kvs: 3.0
| Unit price | CHF/piece |
|---|---|
| up to area [m²] | 90 |
| Maximum power at ∆t 8 K [kW] | 8 |
| Pump type | Wilo Para SC 15/6 |
