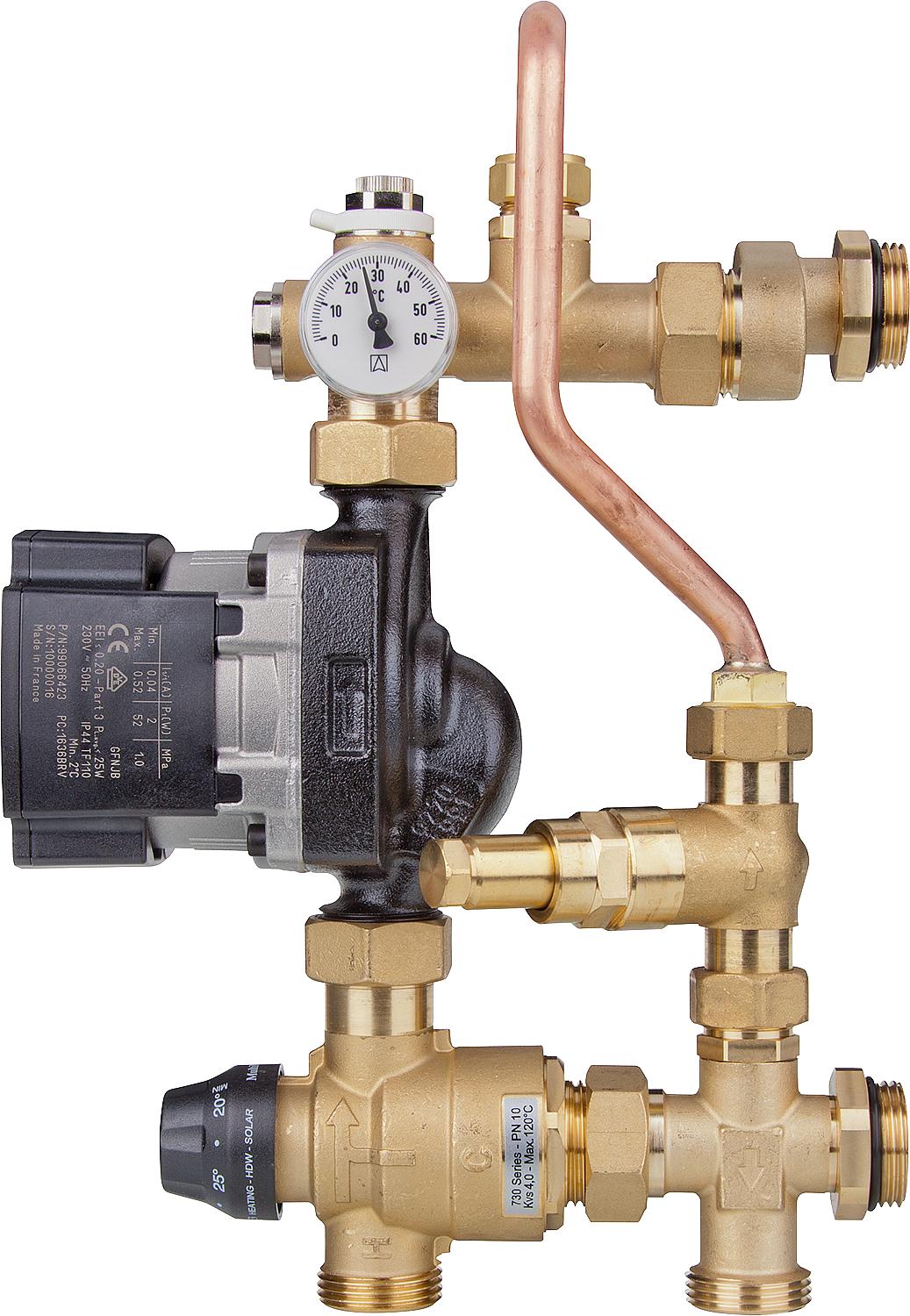

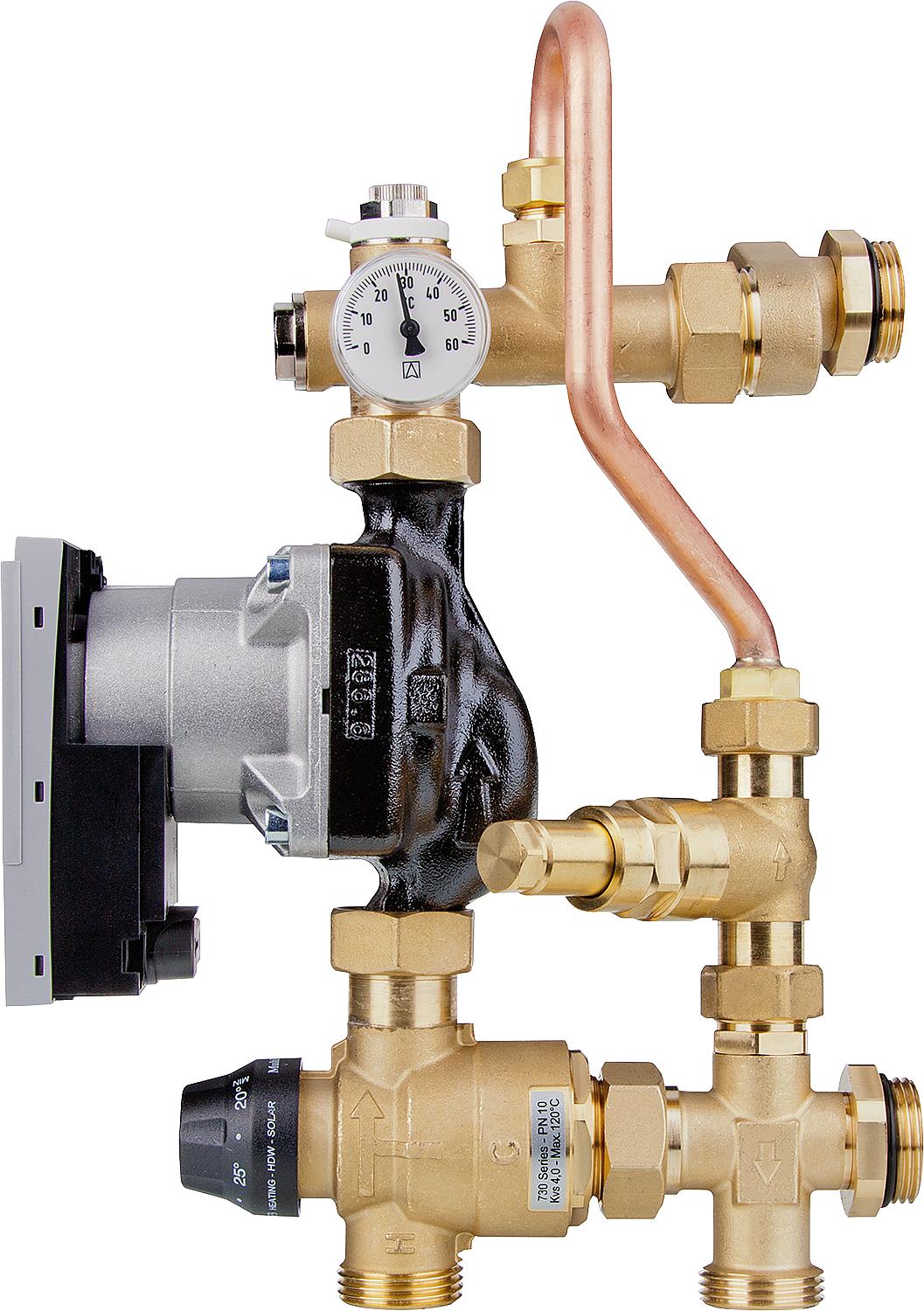

Easyflow Thermo floor heating control unit, 20-45°C, Wilo Para 15/6 SC

• For installation in central heating systems for flow temperature control of underfloor heating systems
• Can be connected to all Evenes heating circuit manifolds
• vertical connection

Technical data:

• Material: Brass
• Maximum operating pressure: 10 bar
• Maximum operating temperature primary: 110°C
• Primary connection: DN 25 (1") male thread, flat sealing
• Secondary return connection: DN 25 (1") AG self-sealing
• Secondary supply connection: 30 mm rotatable S-connection DN 25 (1") male thread, self-sealing

• The thermal mixing valve regulates the desired flow temperature for the underfloor heating.
• Temperature range of fixed-value controller: 20°C to 45°C
• Adjustable overflow valve
• Kvs: 4.0
