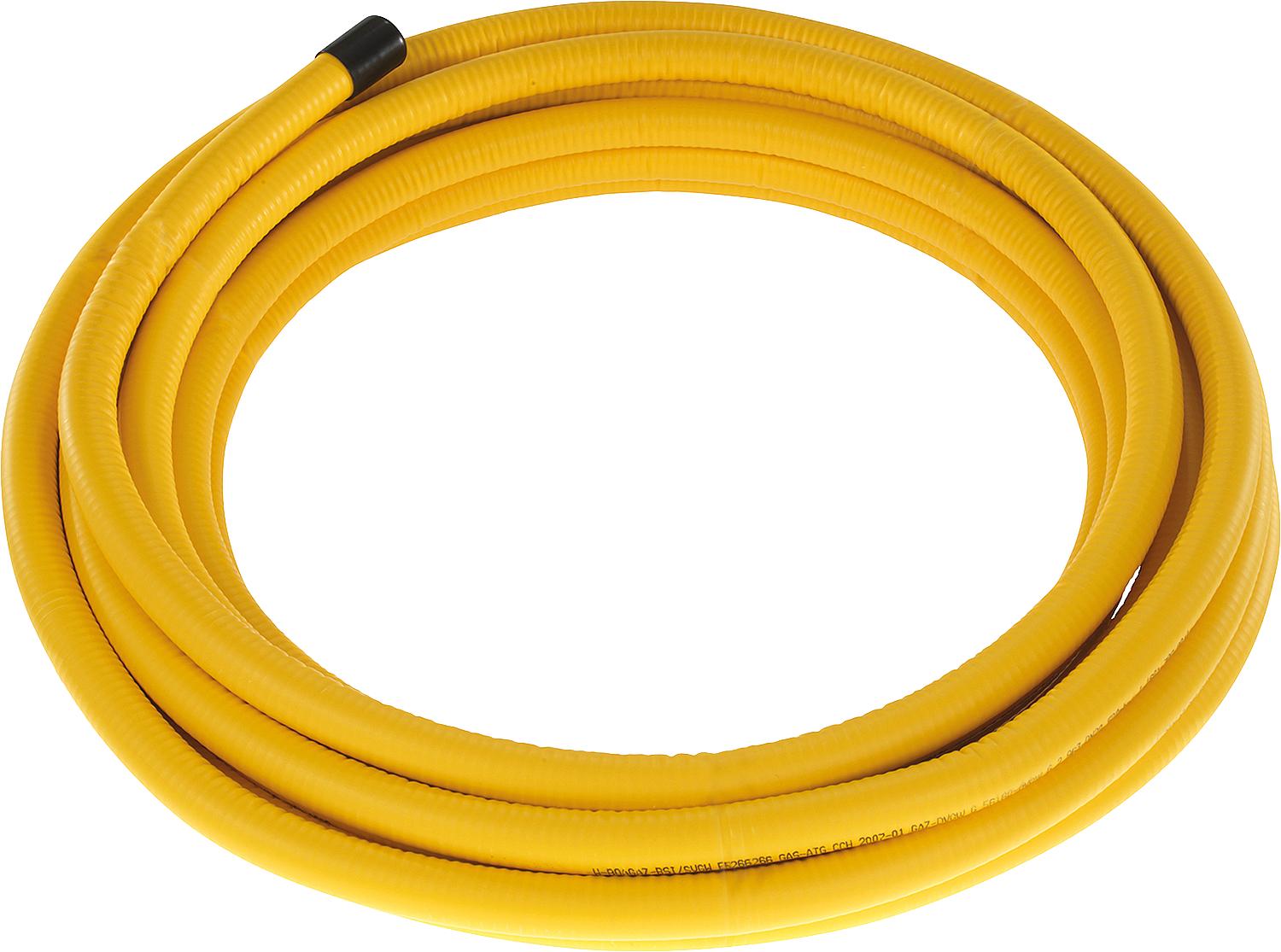

- A system for laying gas pipes inside buildings
- Fast, flare-free push-fit screw connections with double sealing technology
- Bendable by hand and dimensionally stable
- For surface and flush mounting
- Installation under screed and in cavities without ventilation
- Area of application: Natural gas and liquefied petroleum gas, gases according to DVGW G 260 (gas families 1/2/3)
- Continuous corrosion protection of the pipe
- Immediately recognizable as a gas pipeline
- No special tools required. Cut to length using a pipe cutter.
- DVGW certified
Technical data:
- Operating pressure: max. 500 mbar
- Temperature range: -40 to +60 °C
- Pressure resistance: 3 bar
- Material:
- Corrugated pipe: Stainless steel 1.4404
- Coating: UV-resistant polyethylene
- Fitting: brass according to EN 12164/65
- Seal: Elastomer according to EN 549 VP406
- Fire protection class: Bs1d0
Cutting to length and making a connection:
Step 1
The beginning of the BOAGAZ® corrugated pipe wound on the spool must always be cut off cleanly before use. Determine the correct pipe length. Using the pipe cutter, cut the BOAGAZ® corrugated pipe to length through the outer sheath and stainless steel. The cut must be made in the trough of the corrugation. Turn the pipe cutter in one direction and slowly tighten the pressure roller after each turn.
Caution: Tightening too much will result in irregular cuts and deformations.
Step 2
- Remove the PE sheathing with the wire stripper so that 4 shafts remain exposed to allow the connections to be mounted.
Step 3
Slide the nut over the corrugated tube and position the two half-rings so that one wave remains free at the end of the tube.
Step 4
Slide the nut over the half-rings and tighten it with a wrench until it stops. After a pressure test, protect the corrugated pipe at the joint from corrosion with protective tape or heat shrink tubing.
Austria only: Fittings installed under plaster must be completely protected against corrosion (using tape/heat shrink tubing).
| Brand | BOACRAFT |
|---|---|
| Unit of sale | CHF/roll |
| Size | DN 15 |
| Role [m] | 15 |
