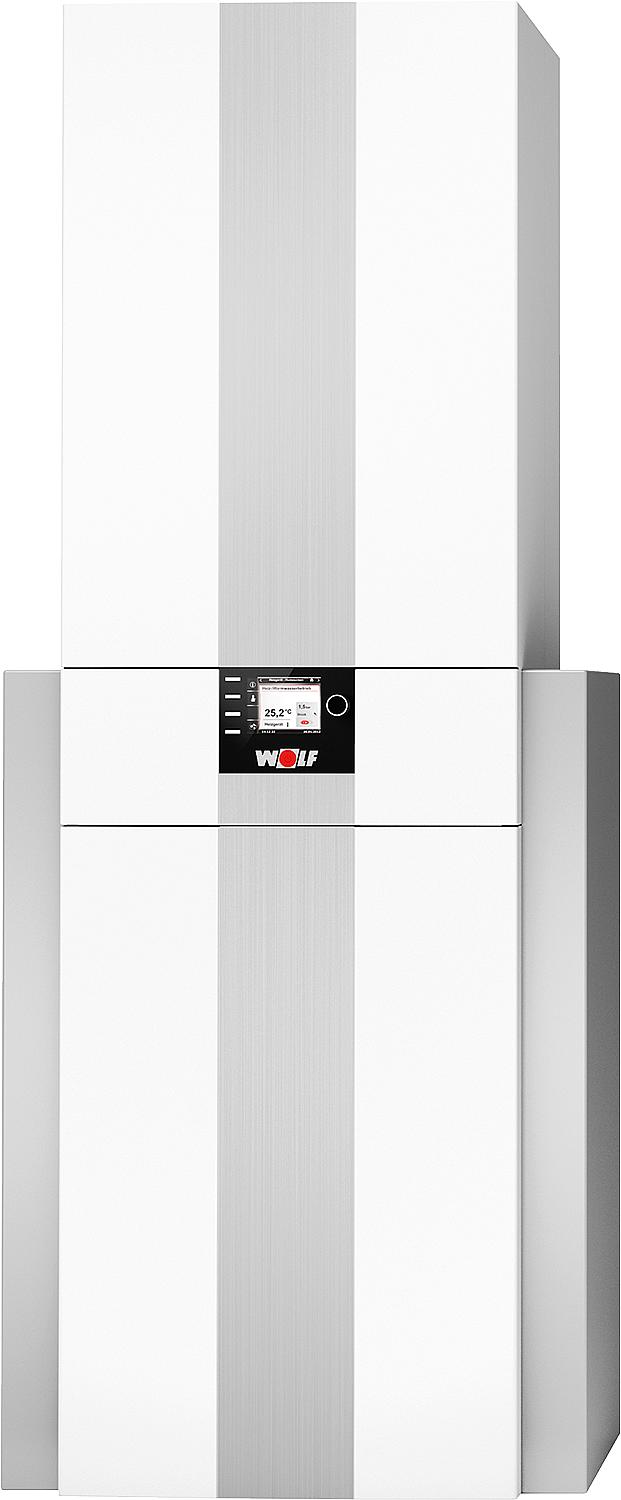

Wolf CGS-2-14/150R 8615014 gas condensing boiler

Wolf CGS-2-14/150R 8615014 gas condensing boiler

Bewertungen
CHF 3,963.95
CHF 3,963.95
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
WOLF
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Floor-standing gas condensing boiler
  • Gas condensing boiler CGB2 combined with coil storage tank (enameled steel)

  • Low assembly effort due to compact design (can be separated into two modules)
  • High performance rating NL = 1.4 or 1.8 when heating from 10°C to 60°C
  • Low heat loss thanks to highly efficient insulation technology (only 1.47 kWh energy consumption in 24 hours)
  • BM2 control module not included in the scope of delivery

Type

  • CGS2R

    • 14/150R

    20/150R

    Energy Efficiency Class (EEC) for space heating, medium temperature

    A+++ to D

    A

    A

    EEK Hot water preparation

    A+ to F

    A

    A

    Heating performance range at 80/60°C

    [kW]

  • 1.8 13.5

    		•

  • 3.8 18.9

    		•

    Heating performance range at 50/30°C

    [kW]

  • 2,1 15,2

    		•

  • 4.4 20.4

    		•

    Hot water preparation performance range

    [kW]

  • 1.8 15.5

  • 3.8 22.2

    		•

    Content Storage

    [l]

    150

    150

    Tap profile

    XL

    XL

    • ø Air/exhaust pipe connection

    [mm]

    60/100

    60/1000

    Dimensions (H x W x D)

    [mm]

    1792 x 600 x 635

    1792 x 600 x 635

    Weight

    [kg]

    115

    115

    Ref. No.

    8615014

    8615016

    Brand WOLF
    Manufacturer part number 8615016
    Unit price CHF/piece
    Ref. No. 8615016
    Type CGS-2R 20/150L
    EAN 4045013283398
