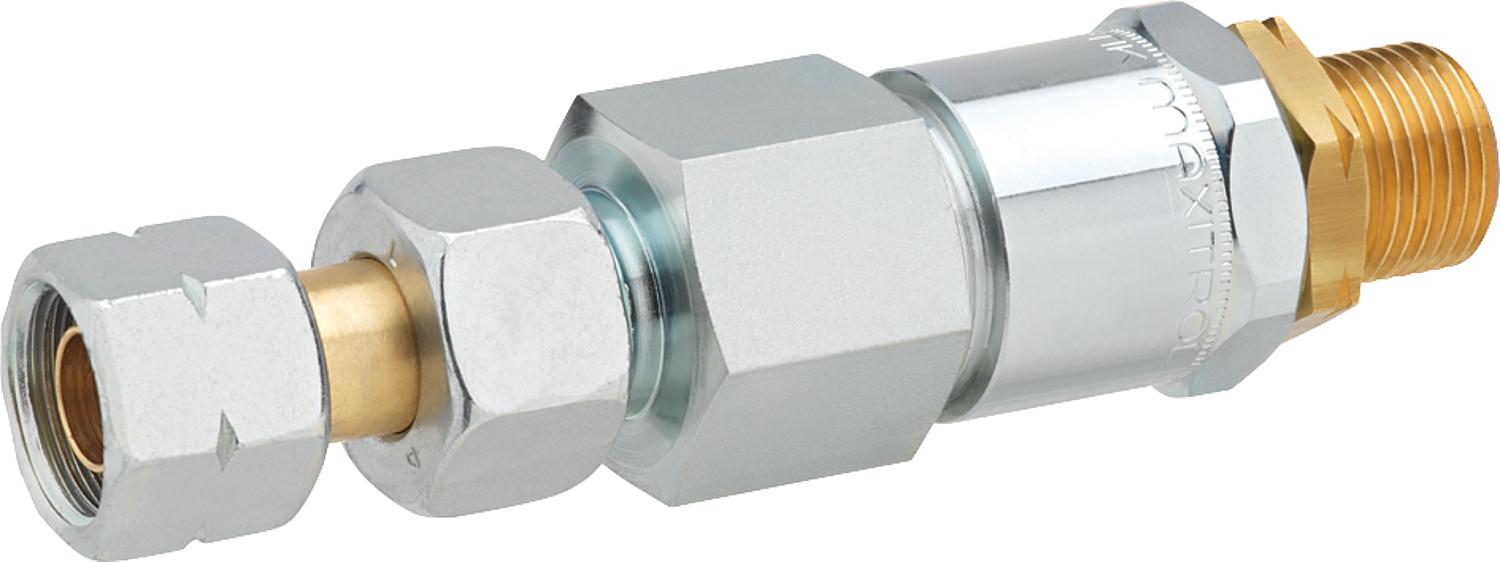

Gasströmungswächter GS, G1/2"LH-ÜMxG1/2"LH-KN,DN20, Q3kg/h/2,5m³/h ,senkrecht

• Operating pressure: 15 - 100 mbar • Pressure loss: ≤ 0.5 mbar • Overflow rate: 2 - 30 l/h air • For gaseous liquefied petroleum gas (propane, butane) and natural gas according to DVGW worksheet G 260 A notice: • The dimensioning and design of the liquefied gas system (selection of gas flow monitor, nominal flow rate, nominal diameter, etc.) must be carried out in accordance with TRF 2012. • *Installation position: “D” vertically downwards

Brand	GOK
Manufacturer part number	02 738 01
Unit price	CHF/piece
Size	G 1/2 LH-ÜM x G 1/2 LH-KN
Propane/Butane	2 kg/h
Nominal diameter	DN 20
Natural gas	1.6 m³/h
EAN	4045659457290
