Gel connection sleeve Raygel-plus-0

Gel connection sleeve Raygel-plus-0

Bewertungen
CHF 15.40
CHF 15.40
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
Krüger Werke
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Up to 0.6/1 kV
  • For connecting and branching plastic cables
  • Single-core cable from 1 x 10 to 1 x 50 mm²
  • Multi-conductor cables from 2 x 1.5 mm² to 5 x 16 mm²
  • For outdoor applications and use in the ground (IP68)
  • Suitable for aluminum or copper conductors
  • Housing made of PP material
  • Halogen-free and UV resistant
  • System tested according to international socket standard CENELEC EN 50393
  • Reliable protection against moisture and water
  • With integrated strain relief
  • Immediate activation after installation
  • Unlimited shelf life

  • Plus0 (Art.No. 62 092 50):
  • Without connectors
  • Cable cross-section (mm²)
  • Pass: 23 x 1.52.5 (1 x 1050)
  • Branch: 23 x 1.5 (1 x 1016)
  • Dimensions (mm)
  • Connector (L x W x H): max. 26 x 24 x 16
  • Sleeve (L x W x H): 100 x 37 x 24

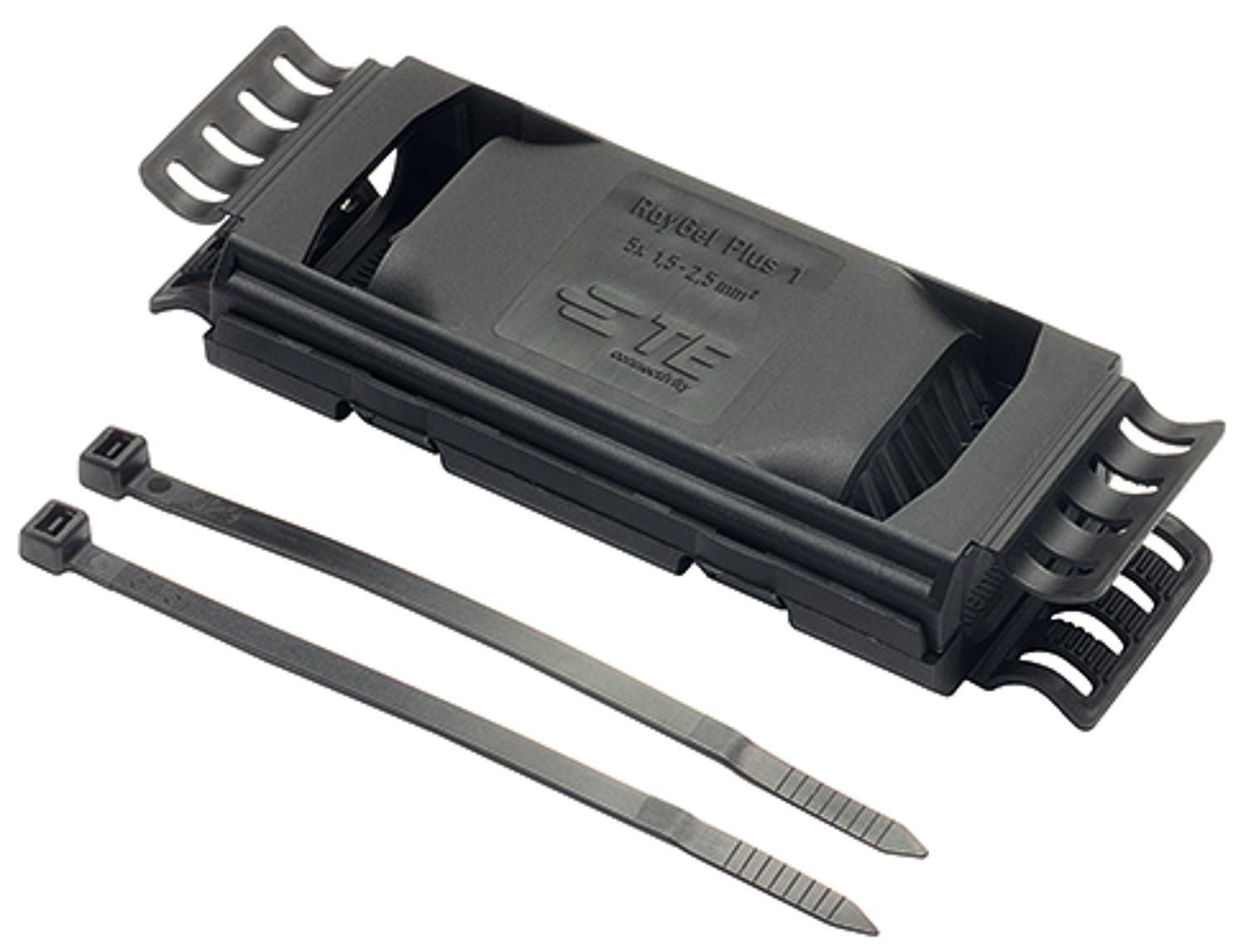

  • Plus1 (Art.No. 62 092 51):
  • Without connectors
  • Cable cross-section (mm²)
  • Passage: 35 x 1.52.5 (1 x 1050)
  • Branch: 35 x 1.5 (1 x 1016)
  • Dimensions (mm)
  • Connector (L x W x H): max. 26 x 38 x 16
  • Sleeve (L x W x H): 139 x 51 x 24

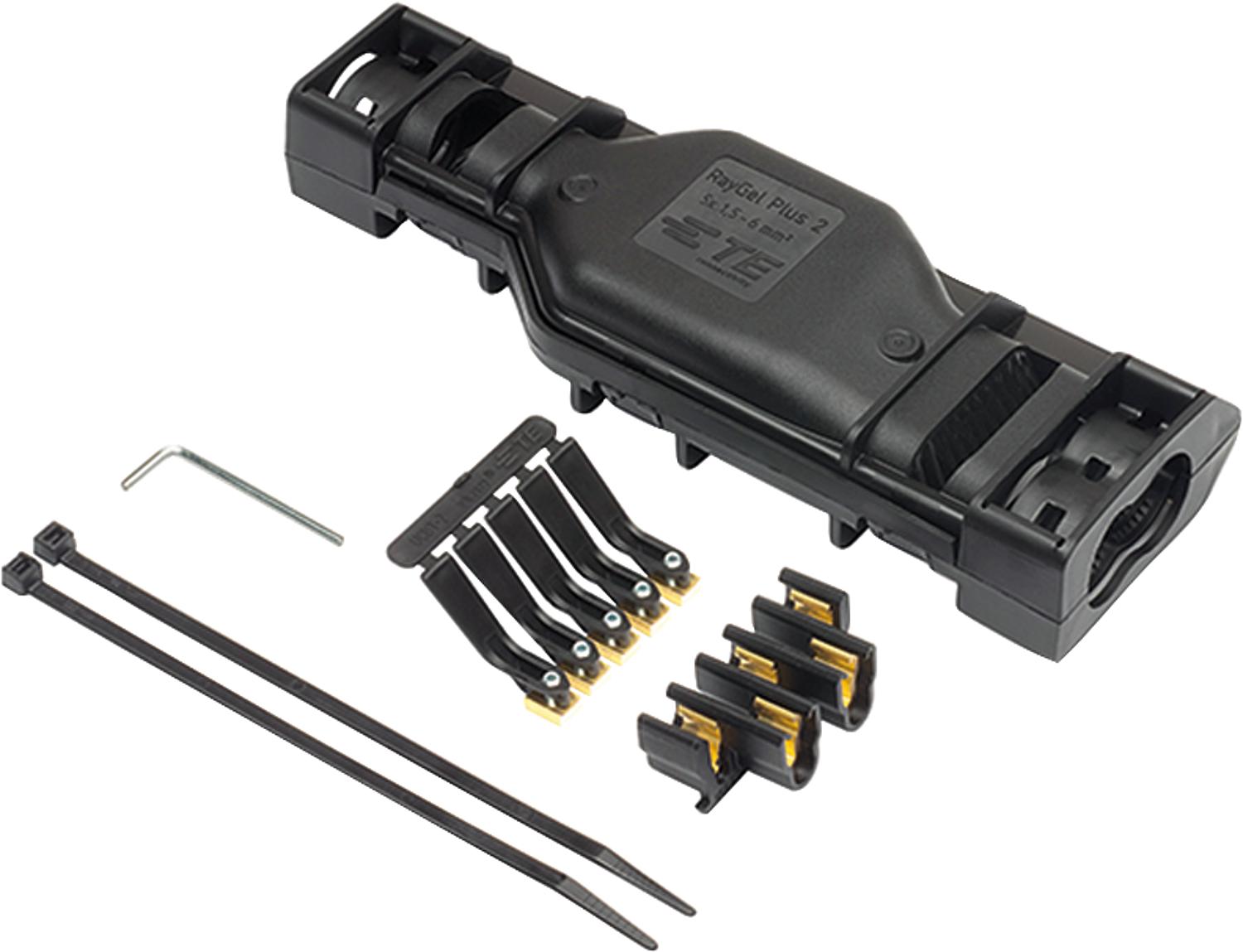

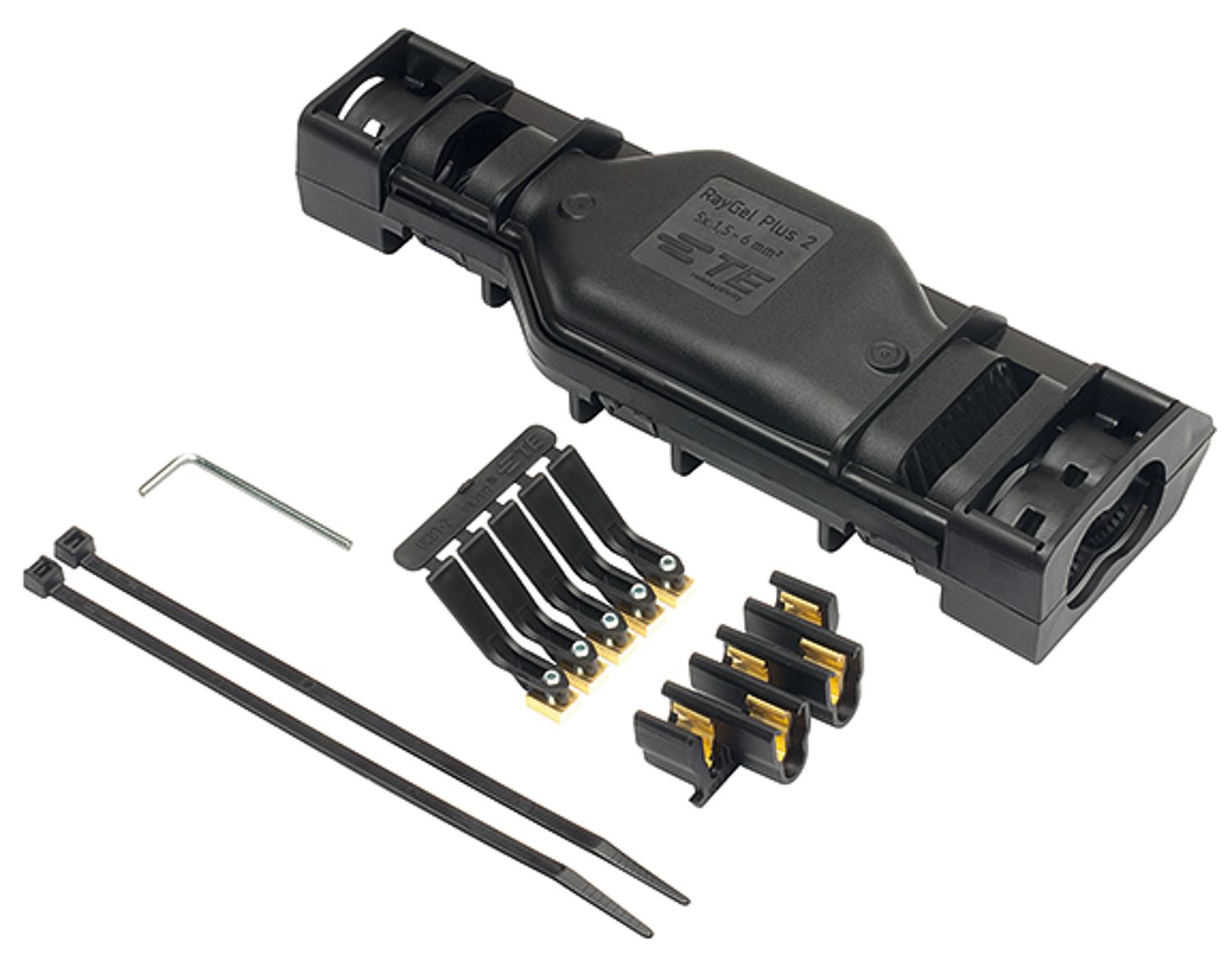

  • Plus2 (Art.No. 62 092 52):
  • With connector
  • Cable cross-section (mm²)
  • Passage: 35 x 1.56
  • Branch: 35 x 1.56
  • Dimensions (mm)
  • Sleeve (L x W x H): 233 x 78 x 40

Brand Krüger Werke
Unit price CHF/piece
Type Plus-0
