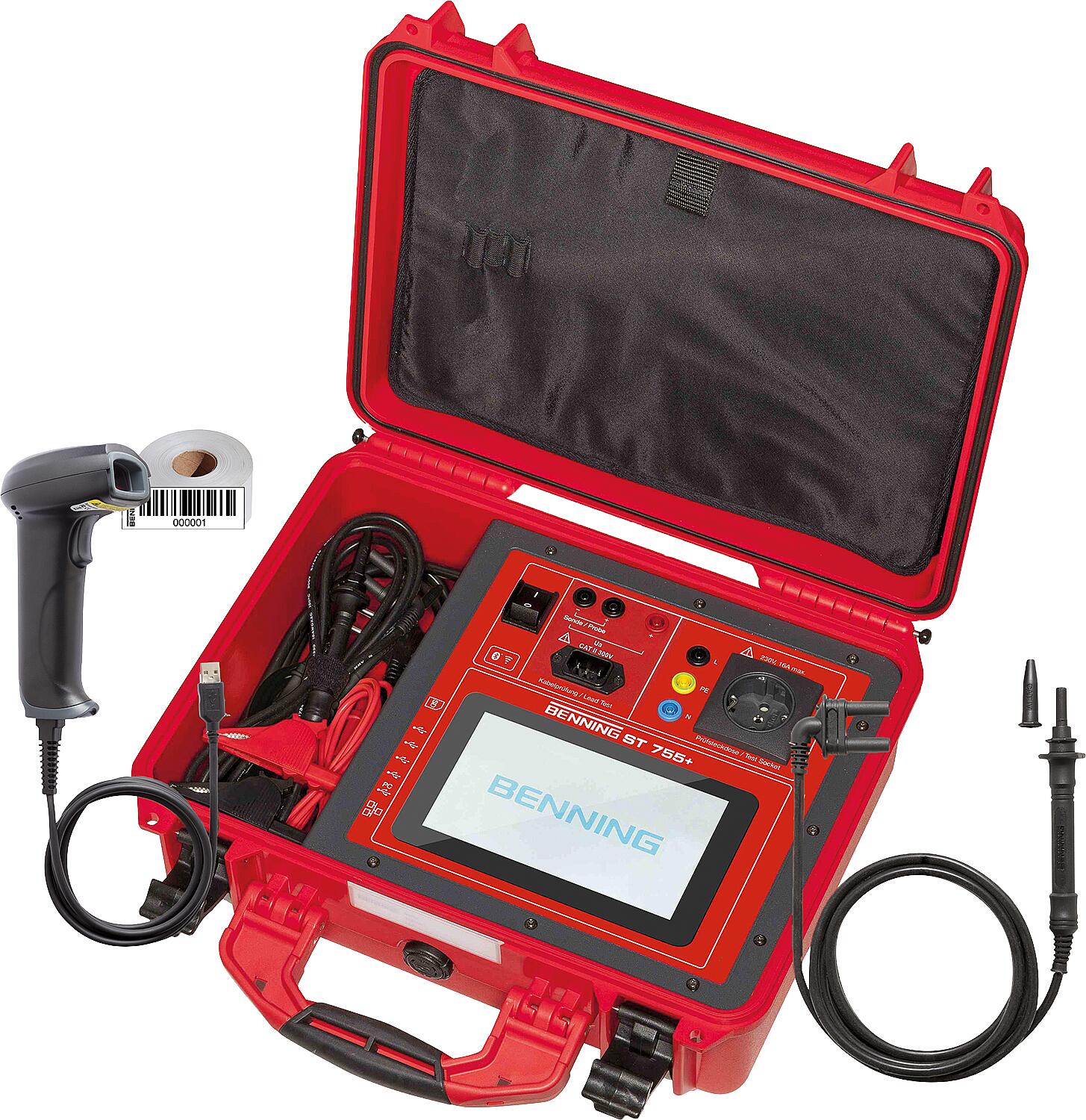

Benning ST755+Set appliance tester

• For testing electrical equipment, medical electrical equipment
• Inspection in accordance with DGUV regulations and the German Ordinance on Industrial Safety and Health (BetrSichV):
• DIN EN 50678 (VDE 0701)
• DIN EN 505699 (VDE 0702)
• DIN 62353 (VDE 07511)
• Completely storable from SD card
• "QuickTest" for creating and checking with one keystroke
• Interfaces: WLAN, Bluetooth®, 4 x USB, MiniUSB, RJ45 for PC

Measurement functions:

• Protective conductor resistance with 200mA DC and 10AC test current
• Testing of mobile personal protection switches PRCD type S, S+, K, 2/3 pole
• Testing of residual current protective devices (RCD types AC, A, F, B, B+)
• Protective conductor resistance: 0.05 Ω 10 Ω
• Insulation resistance: 0.1mΩ 100mΩ
• Protective conductor/touch current via differential current, substitute surge arrester method and direct measurement: 0.03 mA 25 mA
• Voltage/Current: 1V 360V/0.1A 16A
• Apparent power: 20 W 2300 W
• Scope of delivery:
• software
• Barcode scanner
• Barcode labels (1000 pieces)
• Inspection sticker "new inspection" (300 pieces)
• storage bag
• USB cable
• PC Software
