Brine distributor, plastic, type 2060, DN 40 (1 1/2") for heat pumps with ground collectors
• Modular design, made of glass fiber reinforced polyamide, expandable as desired
• The modules are connected to each other in a self-sealing manner and without tools.
• If required, the distribution elements can be securely fixed to prevent rotation using the enclosed clamp.
• The brine circuits are shut off/regulated via integrated valves.
• The seals are included.
• Operating pressure: max. 3 bar
• Operating temperature: -20°C to +60°C
• Volume flow rate: max. 7.7 m³/h
• Dimensions:
- Total length: 336 mm for 2 circles + 100 mm for each additional circle
- Wall clearance: 60 mm and 110 mm
- Minimum distance between flow and return: 170 mm
• With threaded end DN 40 (1 1/2") union nut

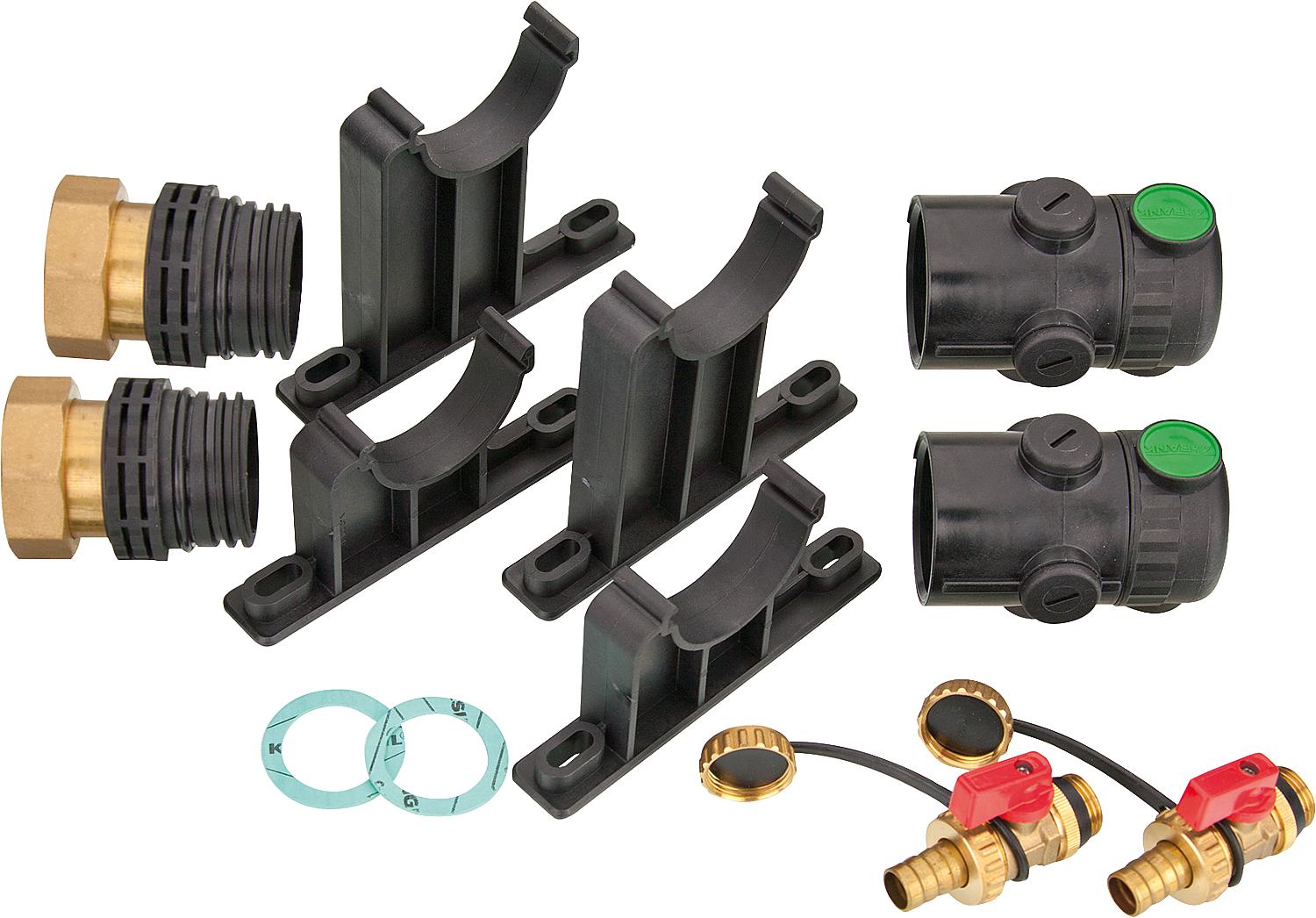

• Scope of delivery:
- 2 x heat pump connection with brass union DN 40 (1 1/2") flat sealing
- 2 x cross piece
- 2 x end cap
- 2 x wall brackets (flat)
- 2 x wall brackets (tall)
- 2 x seals
- 2 x KFE tap
| Unit price | CHF/set |
|---|
