Main distribution set FI/LS Wago TOPJOP-S

Main distribution set FI/LS Wago TOPJOP-S

Bewertungen
CHF 62.00
CHF 62.00
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
WAGO®
62 001 91
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen

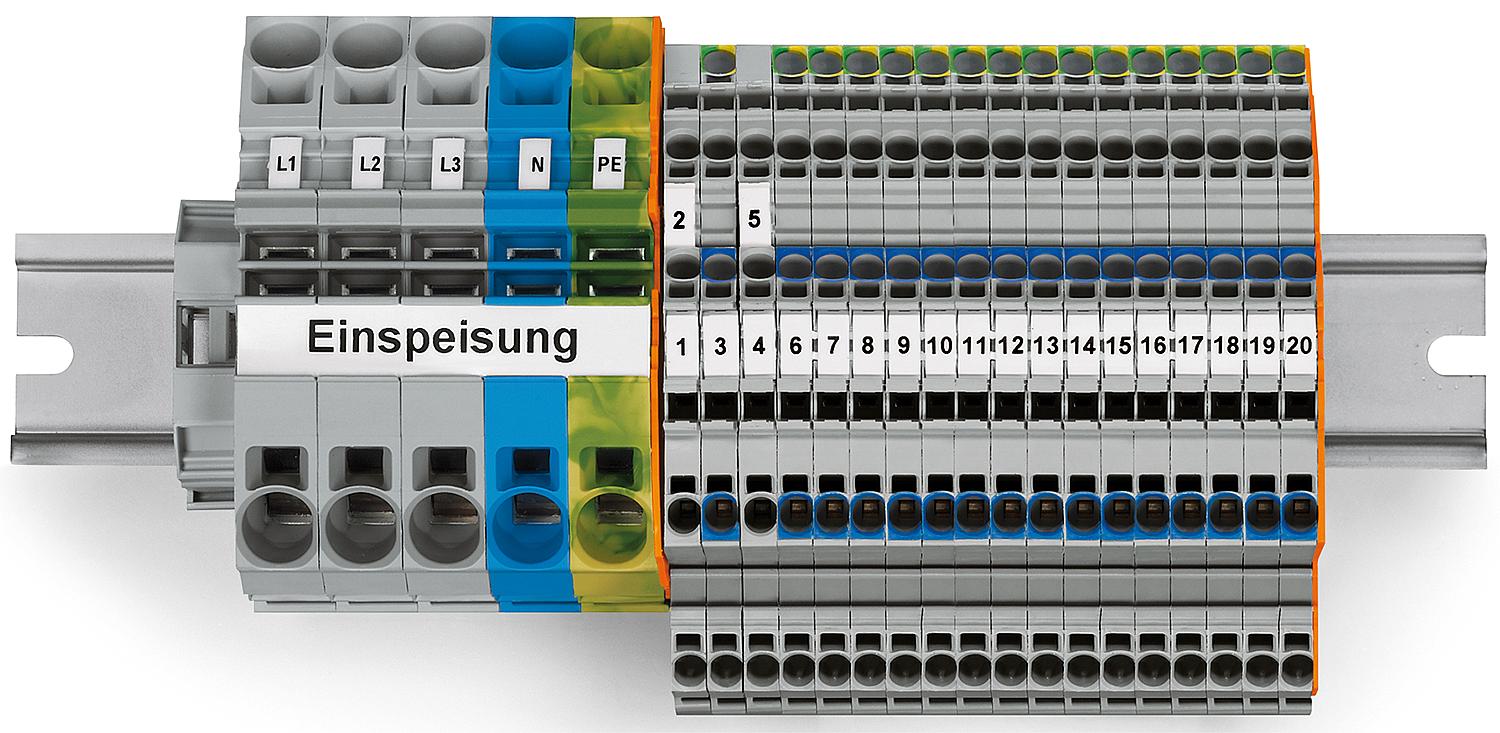

  • For the main distribution board with separate RCBOs (residual current circuit breakers) for each circuit. Includes all necessary components for wiring one power supply and connecting 14 single-phase and 2 three-phase circuits. L and N conductors are connected from the RCBOs to the circuits via terminal blocks without disconnection capability. The neutral potentials are isolated for insulation resistance measurement via the RCBOs.
  • Scope of delivery:
  • 16 x installation level terminals NT/L/PE 2.5 (4) mm2
  • 2 x installation level clamp L/L2.5 (4) mm2
  • 1 x end plate and intermediate plate
  • 3 x 2-conductor distribution feed-in terminal, grey, 16 (25“f”) mm²
  • 1 x 2-conductor distribution feed-in terminal, blue, 16 (25“f”) mm²
  • 1 x 2-conductor distribution feed-in terminal, green/yellow, 16 (25“f”) mm²
  • 1 x end plate and intermediate plate
  • 2 x end clamps, 10 mm wide
  • 1 x labeling strip, white, 0.5 m
  • 1 x WMB labeling card 1 ... 50 (2 x)
  • 1 x WMB labeling card L1, L2, L3, N, PE, L1, L2, L3, N, PE (10 x)
  • 1 x Kammbrücker 13
  • 1 x smudge-proof fiber-tip pen
Brand WAGO®
Manufacturer part number 821-123
Unit price CHF/set
EAN 4045454962319
