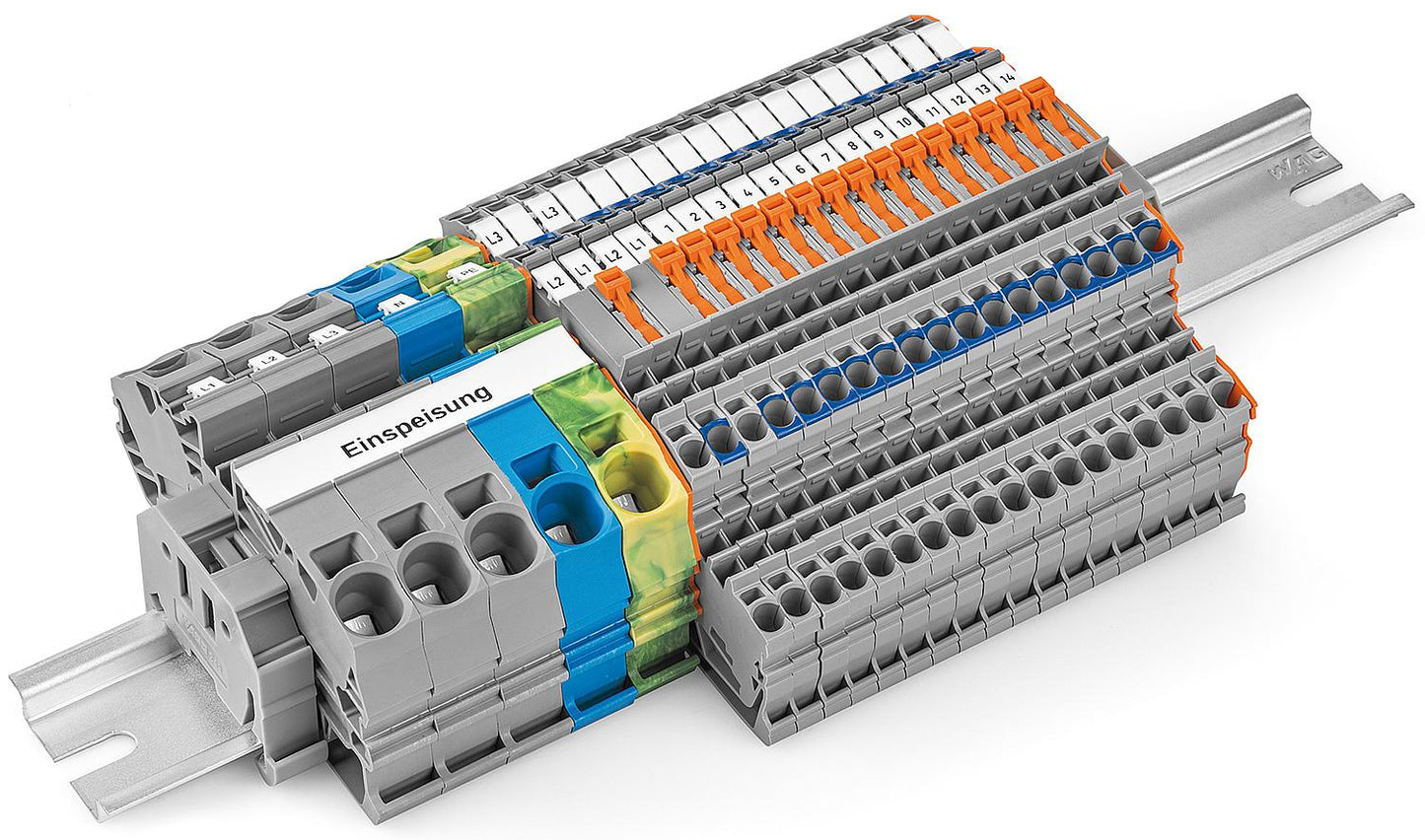

Main distribution set FI or NS Wago TOPJOP-S

Main distribution set FI or NS Wago TOPJOP-S

Bewertungen
CHF 107.35
CHF 107.35
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
WAGO®
62 001 92
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For the main distribution board with multiple residual current devices (RCDs) and correspondingly small circuit groups. Includes all necessary components for wiring one feed and connecting 14 single-phase and 2 three-phase circuits. The RCD potentials are fed individually to each terminal. An optional jumper allows the RCD potentials to be split across adjacent terminals to form small circuit groups. The neutral potentials for insulation resistance measurement are connected via a disconnect switch in the installation terminal block.
  • Scope of delivery:
  • 16 x installation terminal blocks N/L/PE, 4 mm2
  • 2 x installation level clamp L/L, 4 mm2
  • 1 x end plate and intermediate plate
  • 3 x 2-conductor feed-through terminals, grey, 16 mm²
  • 1 x 2-conductor feed-through terminal block, blue, 16 mm²
  • 1 x 2-conductor PE terminal block, green/yellow, 16 mm²
  • 1 x end and intermediate plate, 16 mm²
  • 2 x wide end clamp
  • 15 x comb bridges, light grey, double
  • 2 x N/L test adapters, grey
  • 2 x N-type test adapters, grey
  • 2 x test adapters for test plugs, ø 4 mm
  • 1 x labeling strip, white, 0.5 m
  • 1 x WMB labeling card 1 ... 50, 1 card
  • 1 x WMB labeling card L1, L2 ... N, PE, 1 card
  • 1 x smudge-proof fiber-tip pen
Brand WAGO®
Manufacturer part number 821-129
Unit price CHF/set
EAN 4050821675099
