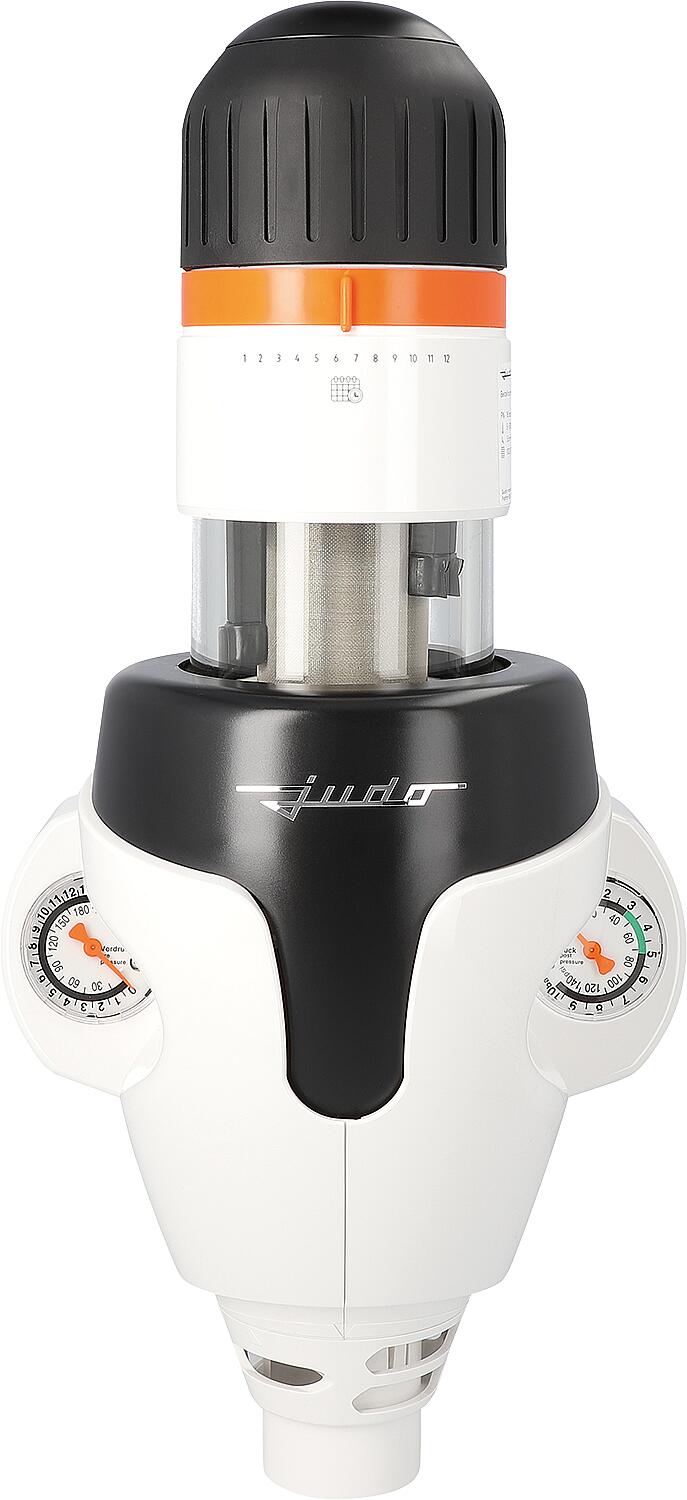

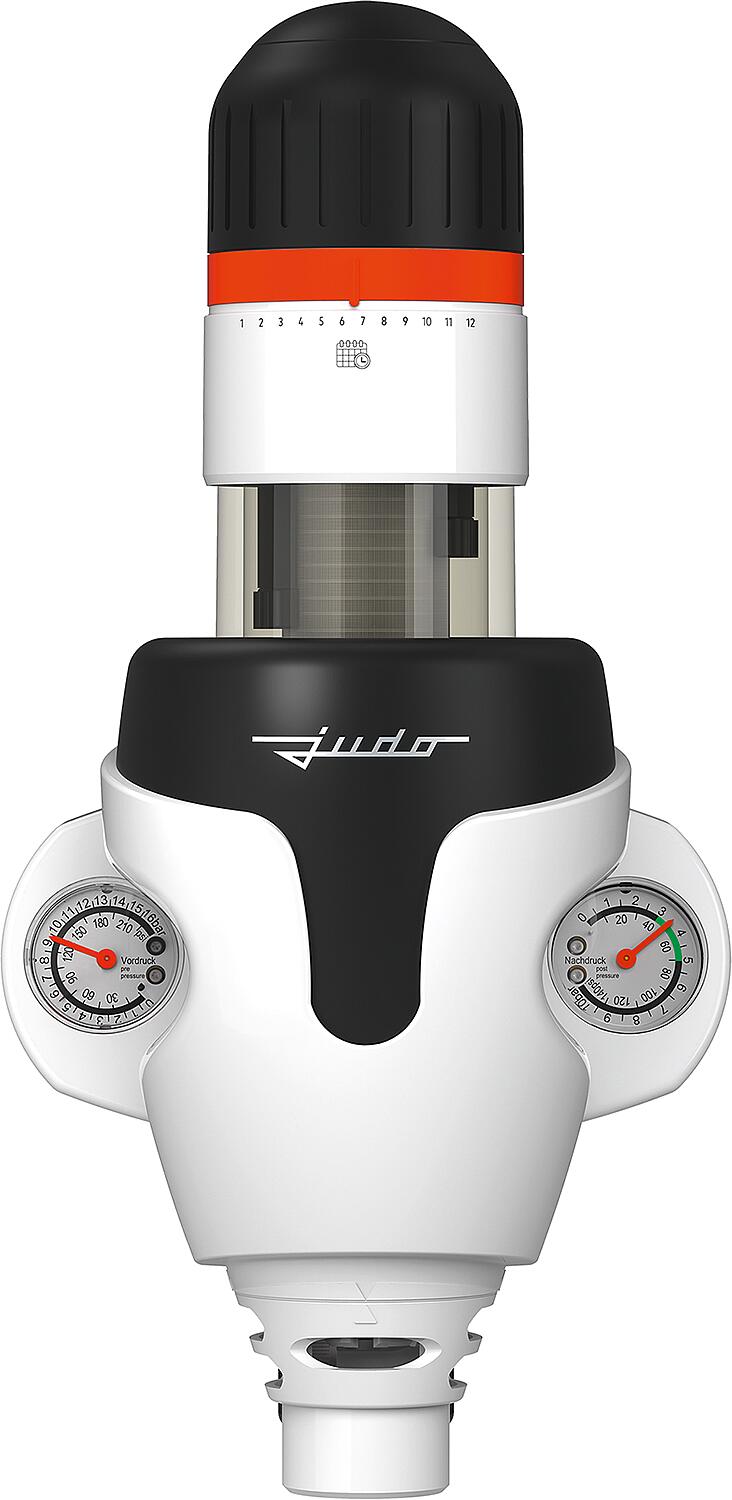

Hauswasserstation JUDO PROMI-QUICK CONNECTION, DN32 (1 1/4")

Bewertungen

| Eine Rezension schreiben

CHF 571.40

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Judo

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• For use with drinking water
• With pressure reducer, inlet and outlet pressure gauges
• Backwashable
• Handwheel for backflushing the sieve insert using the highly effective point-rotation system for optimal germ protection while simultaneously cleaning the sight glass.
• Inlet pressure: Min. 1.5 bar / max. 16 bar
• Outlet pressure: 1.5 - 6 bar
• Operating temperature: Max. +30°C
• Installation position: Vertical or horizontal, with filter cup facing downwards
• Mesh size of filter fabric: 0.1 mm
• Body: Brass / Plastic
• Includes rotatable connection flange

Brand	Judo
Manufacturer part number	8165031
Unit price	CHF/piece
Nominal flow rate [m³/h]	3.6
Size	DN 25 (1")
Overall length including screw connection [mm]	195
EAN	4038097052097
