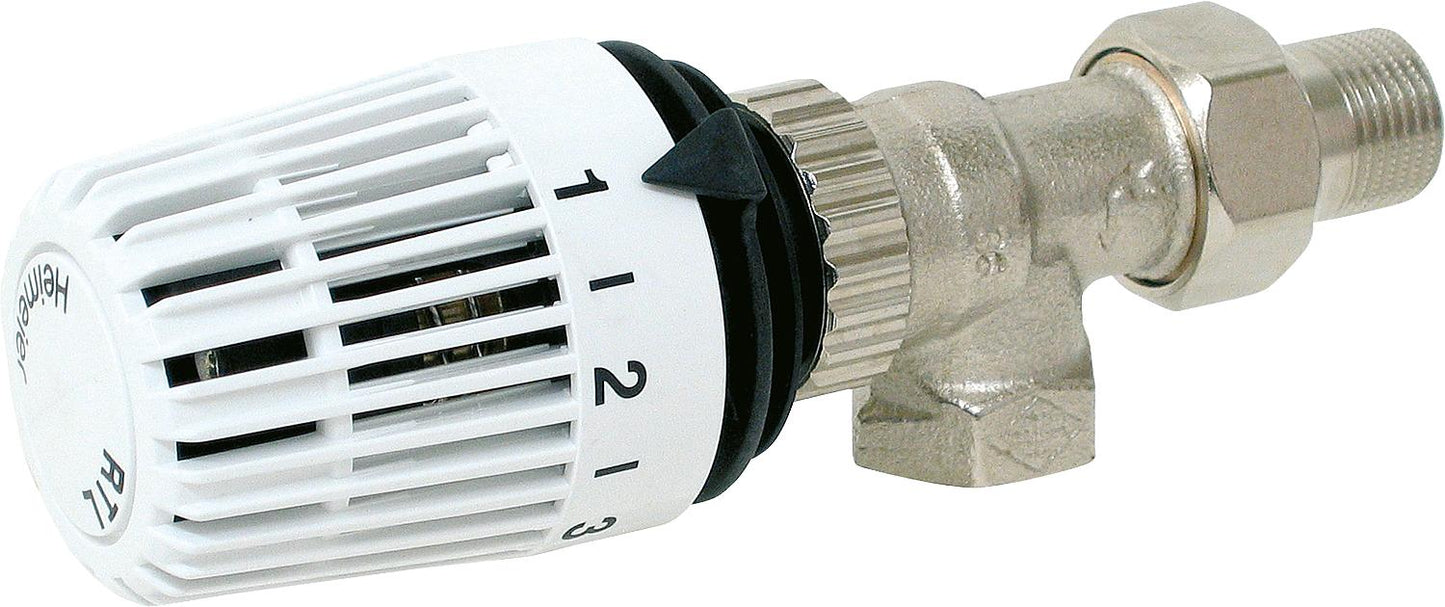

Heimeier return temperature limiter 1/2" straight-through

Valve body:

• Valve body made of red brass, nickel-plated
• with stainless steel spindle and double O-ring seal
• Outer O-ring replaceable without draining the system
• Permissible operating temperature 120°C
• Permissible operating pressure 10 bar

Sensor element:

• Scale cover white RAL 9016
• expansion-filled thermostat
• Concealed upper and lower limits of the temperature range or blocking of a setting by stop clips
• Over-stroke protection
• Setpoint range: 10°C...50°C
• Key figure 1 5

• Connection: DN 15 (1/2")
