- With hydraulic switch
- Connection to pump groups DN20 (3/4")
- Axle spacing 90 mm
- Connection boiler side DN 25 (1")
- made of galvanized steel
- With EPP insulation

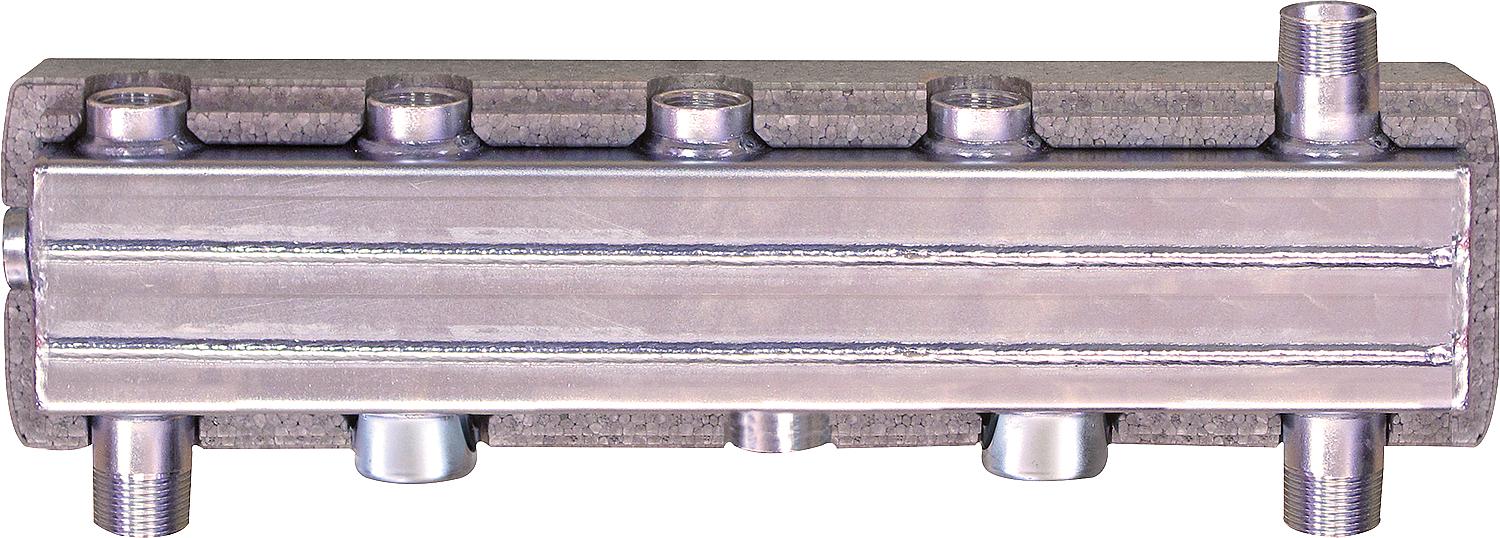

- Insulated distribution manifold for capacities up to 2 m³/h 50 kW (temperature spread ΔT=20 K in the primary circuit)
- Side connection 1/2” female thread for accessories
- Dimensions H x W: 120 x 100 mm
- With DN 25 (1”) connection for safety group
- Connection to the boiler: 1” male thread; center-to-center distance 380 mm (HV60/90W2), or 560 mm (HV60/90W3)
V = Lead-in
R = Return
| Installation length [mm] | 470 |
|---|---|
| Unit price | CHF/piece |
| Type | HV 60/90W-2 |
| Heating circuits | 2 |
