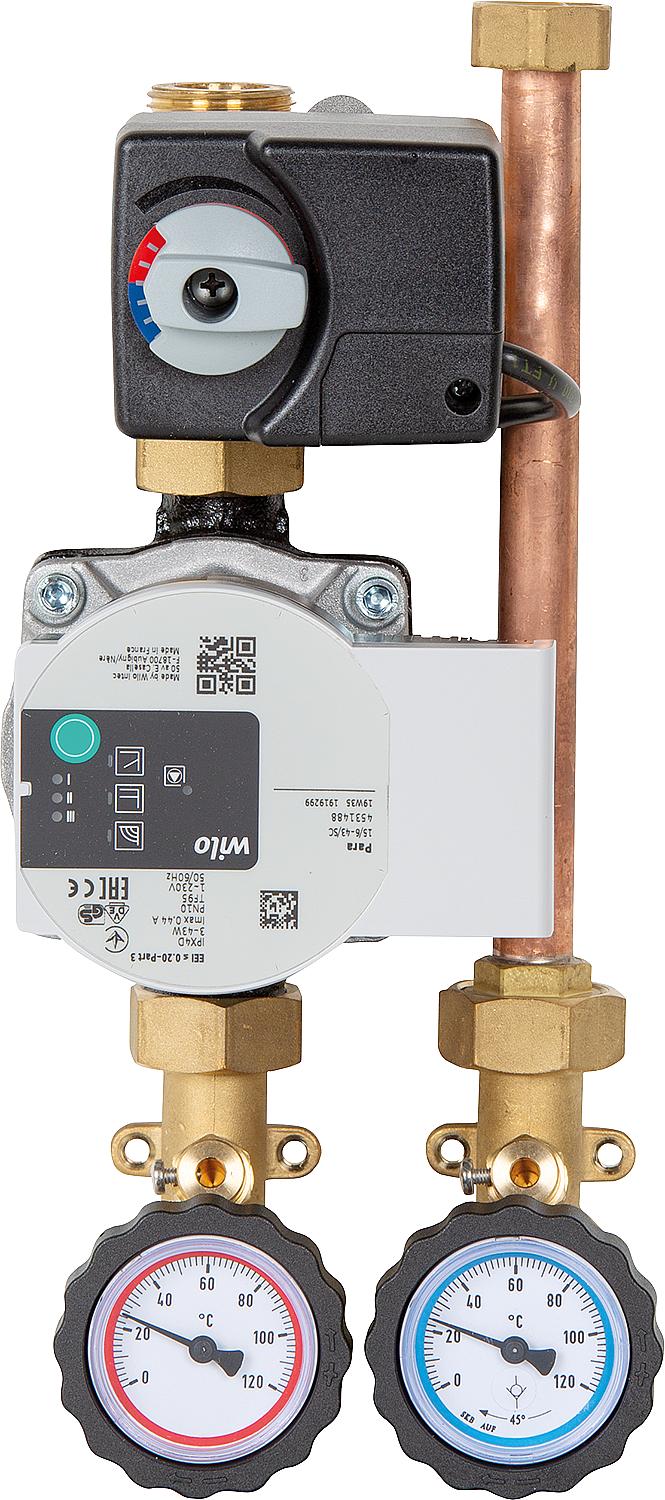

Easyflow mixed heating circuit module, Wilo Para 15/6SC pump, for module box

• Mixer motor TRM20, 230V, 3 point
• Kvs 4.0

• Suitable for module distributors ModulBox
• Wilo Para 15/6 SC circulation pump
• Thermometer ball valve flow and return
• Gravity brake in the return ball valve

Technical data for the circulation pump:

• Nominal size: DN 15 (1/2”) x DN 25 (1”)
• Installation length: 130 mm
• Delivery head: 6.0 m
• Operating voltage: 230 V/AC
• EEI: 0.20
• Proportional pressure characteristic: 3
• Constant pressure characteristic curve: 3
• Constant speed: 3
• Material: Grey cast iron, KTL coated
