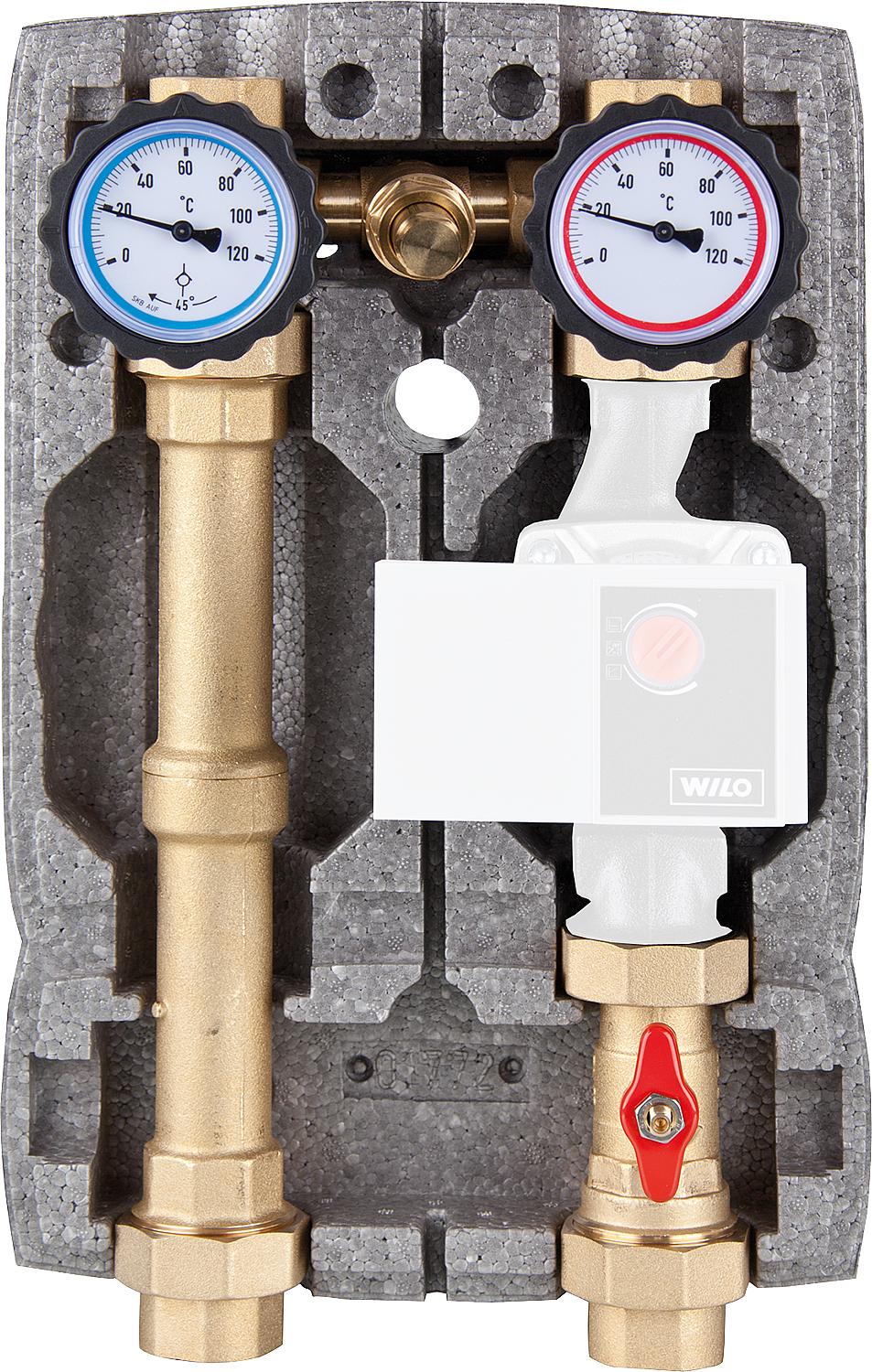

Easyflow DN25 R1" heating circuit set with insulation, unmixed, with bypass valve

• Temperature: max. 110°C
• PN 10 bar
• With EP insulation
• Axle dimension: 125 mm
• Flow and return lines interchangeable

Lead time:

• 1 x Flow pump flange ball valve with thermometer handwheel (thermometer ring red)

2 x union nut and seal

1 x screw connection DN 25 (1")

Return:

• 1 x return pump flange ball valve with thermometer handwheel (thermometer ring blue) and adjustable gravity brake by turning the handwheel 45°.

1 x brass tube

1 x screw connection DN 25 (1")

• Dimensions with insulation (H x W x D): 380 x 240 x 210 mm
