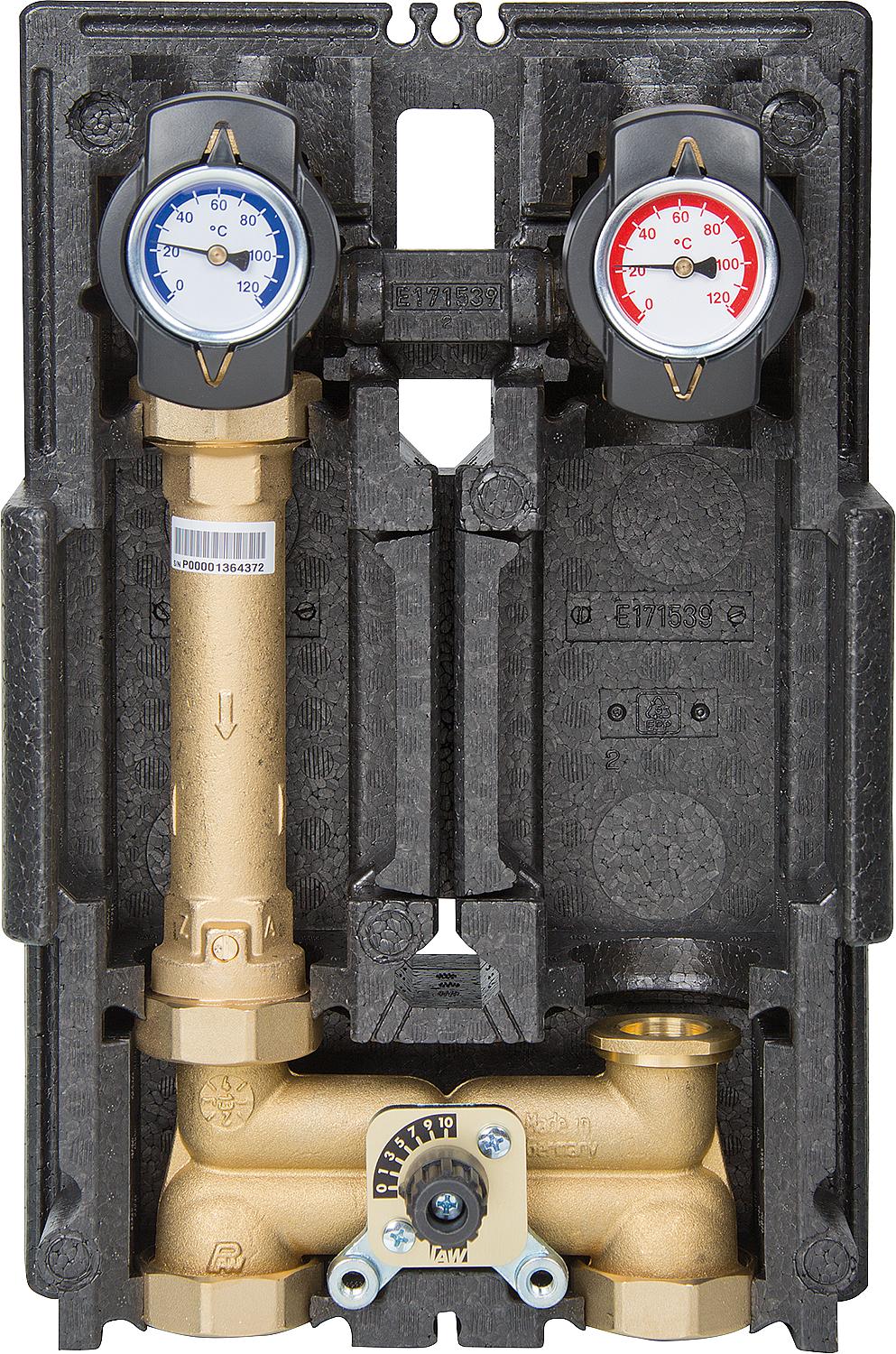

Heating circuit set K38 Heat Bloc DN 25(1") with 4-way mixing valve without pump

Name: Heating circuit set K38 Heat Bloc DN 25(1") with 4-way mixing valve without pump
Brand: PAW
SKU: 90 017 18
Price: 385.45 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 385.45

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

PAW

90 017 18

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

DN 25 (1"), Kvs: 4.7

For mixing-controlled heating in conjunction with a boiler temperature control system
4-way mixer: Suitable for operation with a boiler circulation pump in a heating circuit (allows circulation in the boiler circuit with the flow pipe closed).

When used on a manifold, the mixer return line must be equipped with a shut-off valve to reliably prevent reverse circulation!

Connections DN25 (1"): Internal thread

Connections DN32 (1¼"):

for heating circuit DN32 (1¼") internal thread,
to distributor DN32 flange with union nut DN50
Pump can be shut off on both sides
Suitable for installation on PAW module distributors
Insulation according to EnEV, made of EPP
Supply and return lines interchangeable
Gravity brake (mountable) in the return line, 200 mbar, suitable for all installation positions

Technical data:

Max. operating pressure DN25/DN32: 8/6 bar
Operating temperature: max. 110°C
Seals: EPDM/NBR
Axle spacing: 125 mm
Installation length DN25/DN32: 345/385 mm

Brand	PAW
Manufacturer part number	36083WUS01
Version	without pump
Unit price	CHF/set
