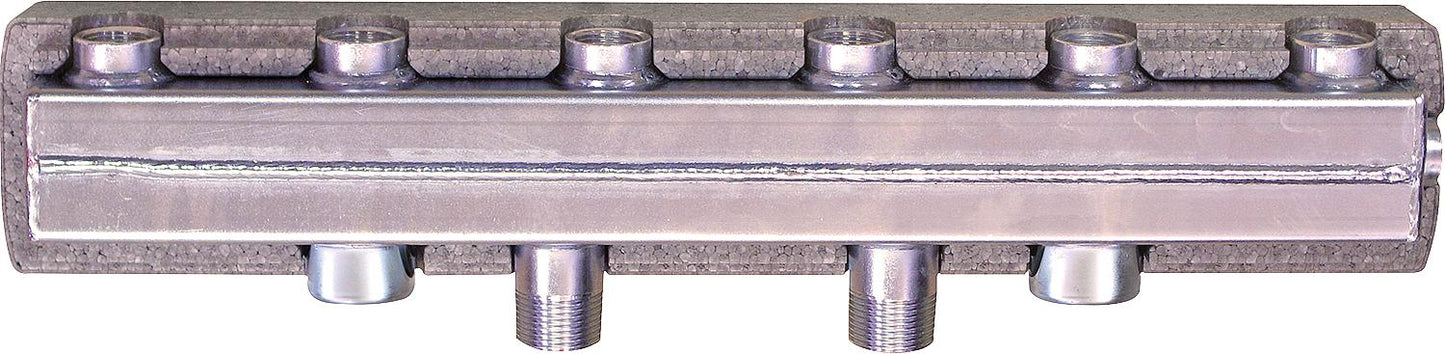

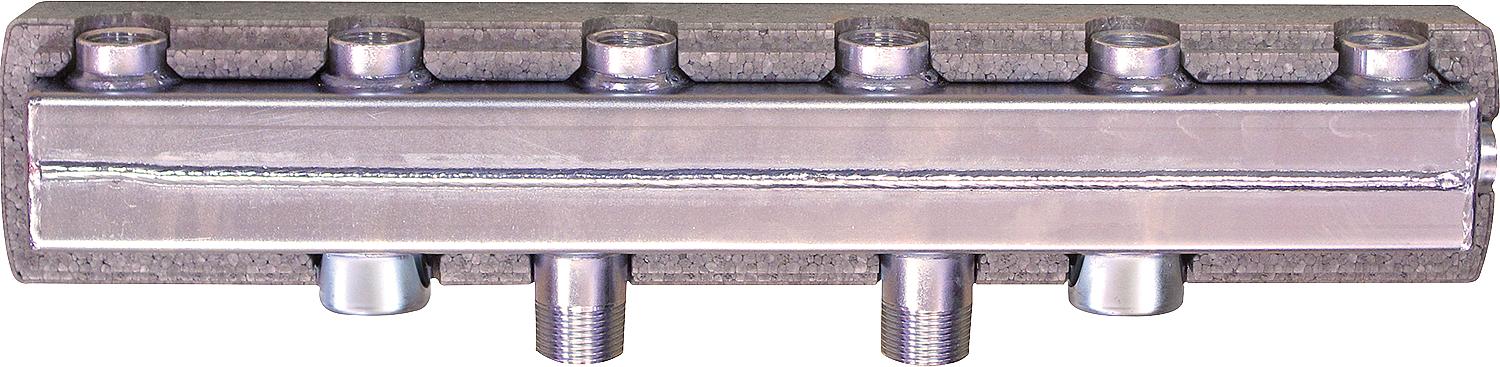

Easyflow type HV60/90 heating circuit manifold including insulation, for 2 heating circuits DN20 (3/4")

• Connection to pump groups DN20 (3/4")
• Axle spacing 90 mm
• Connection boiler side DN 25 (1")
• made of galvanized steel
• With EPP insulation
• Insulated distribution manifold for capacities up to 2 m³/h 50 kW (temperature spread ΔT=20 K in the primary circuit)
• Side connection 1/2” female thread for accessories

• Dimensions H x W: 100 x 100 mm

Connection to the boiler: DN 25 (1”) male thread, center-to-center distance 125 mm
