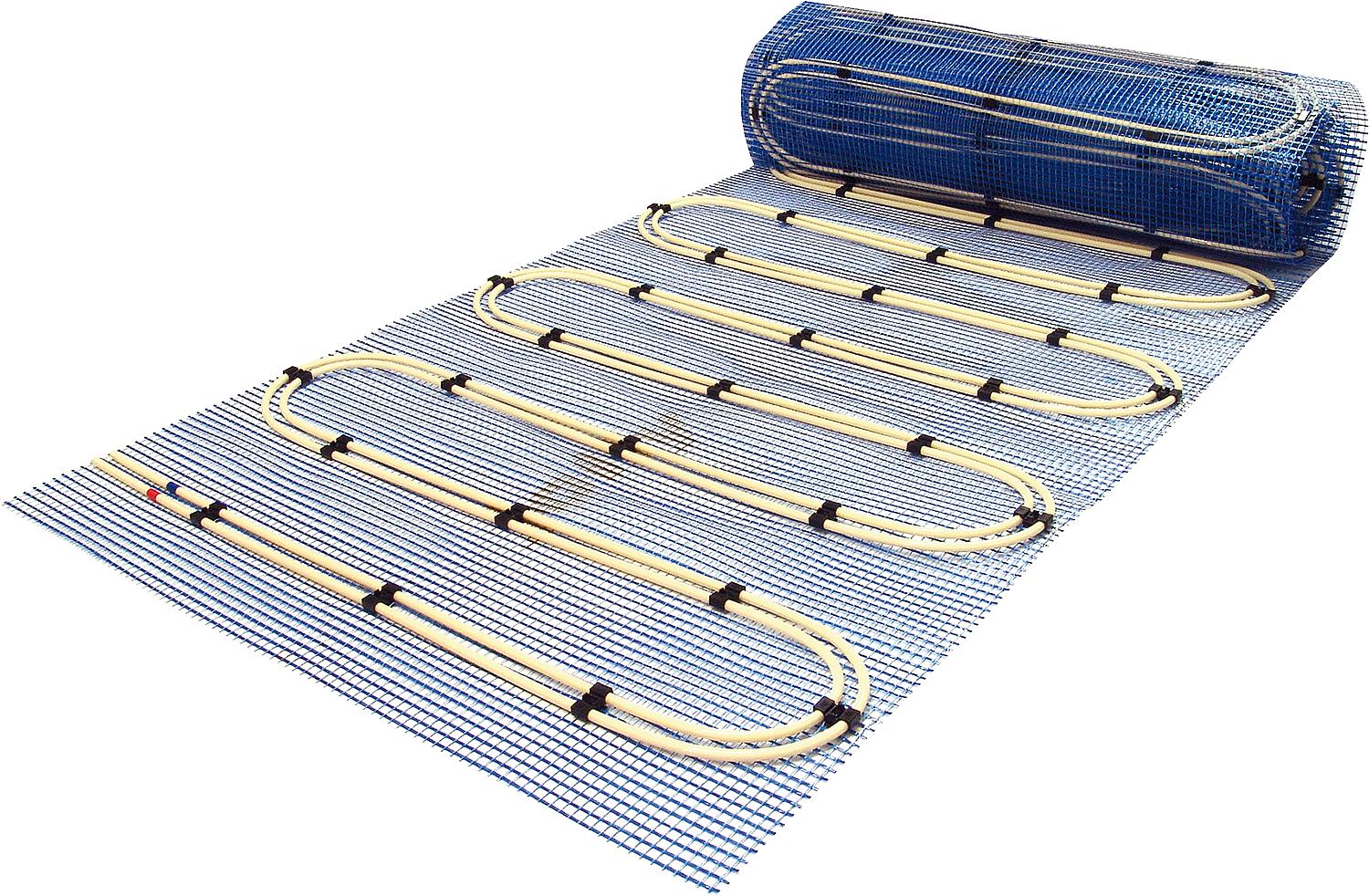

Heating mat 2.5 m² Aquaheat twin pipe system

• For retrofitting on screed, ideal for renovations
• Low installation height, only 8 mm pipe thickness
• Pipes are oxygen-tight according to DIN 4726, max. 90°C, 6 bar, PExc5 layer)
• Completely prefabricated heating mats (including manifold pieces), simply unroll, level and tile over.
• Loop spacing of the pipes on the mat: approx. 0.3 m
• Connection cable: ø 8mm / 5 m
• Suitable for areas up to 20 sqm (per pump circuit)
• Spaces from 20 sqm available on request, please provide planning documents.
• Power output: 80...125 W/m²
• Rapid heat generation, depending on the floor covering only approx. 30 min.
• Simple rotary knob operation
• Low purchase costs, low energy consumption
• Even heat distribution thanks to the counter-rotating, double flow and return.
• Simply connect in parallel to existing radiators
• Low water content, only 3.5 liters for 10 square meters

Scope of delivery:

• Heating mat grille, completely pre-assembled
• Supply and return manifold(s)
• Mounting hardware
